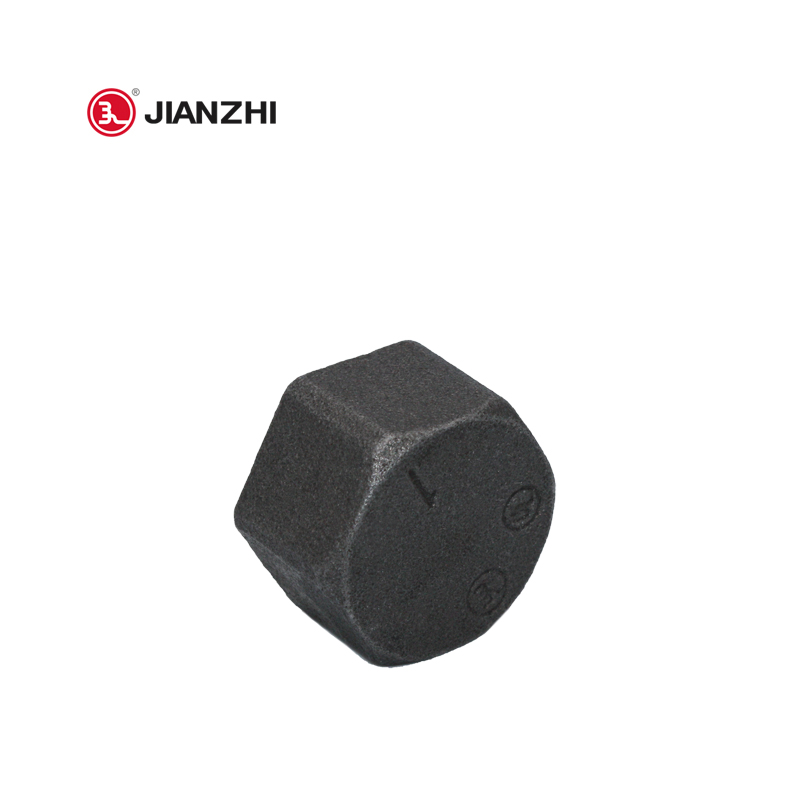

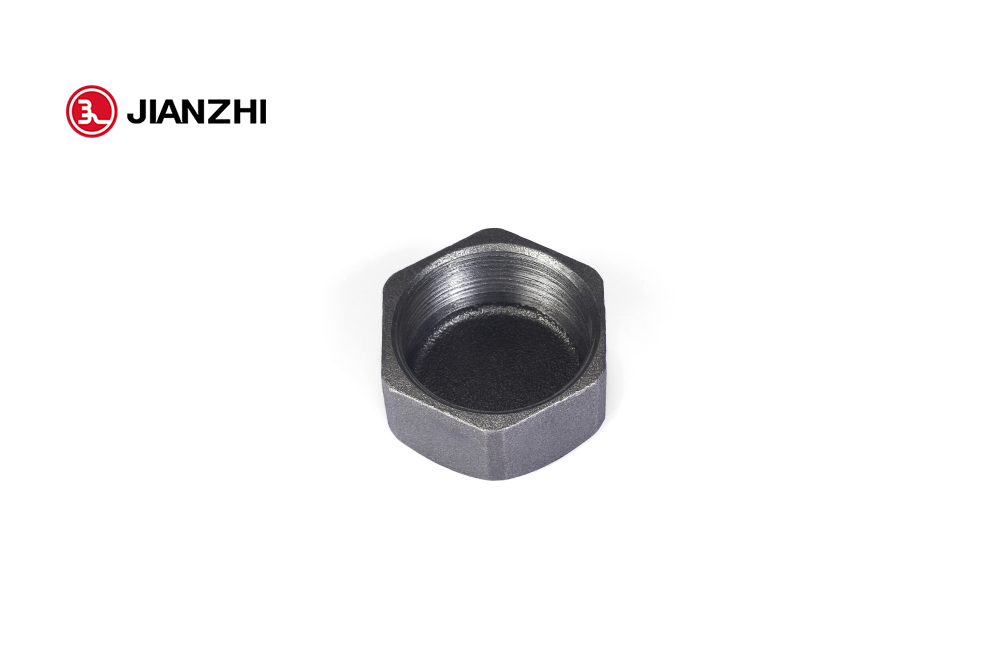

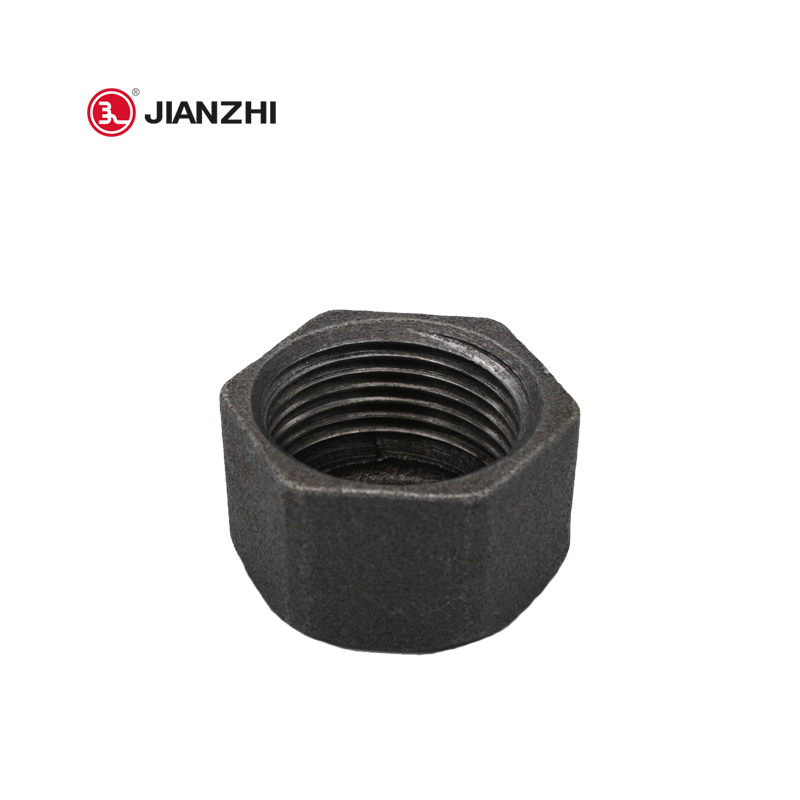

Black Malleable Iron Hexagon Cap Fig.300

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Do you know?
Jianzhi pipe fittings have already export to 135 countries, and Jianzhi brand have registered in 35 countries.
Most of our customers located in North America, South American, Asia, Europe, Oceania and Africa.

Product Parameters

Size:3/8”-2”(DN10-DN50)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Product Dimensions

Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
