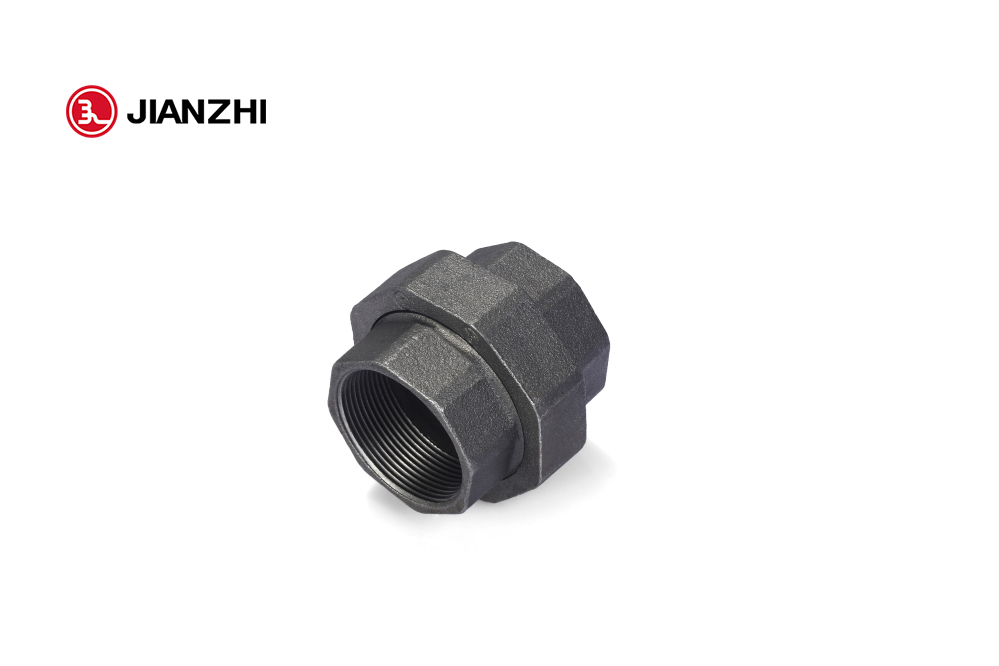

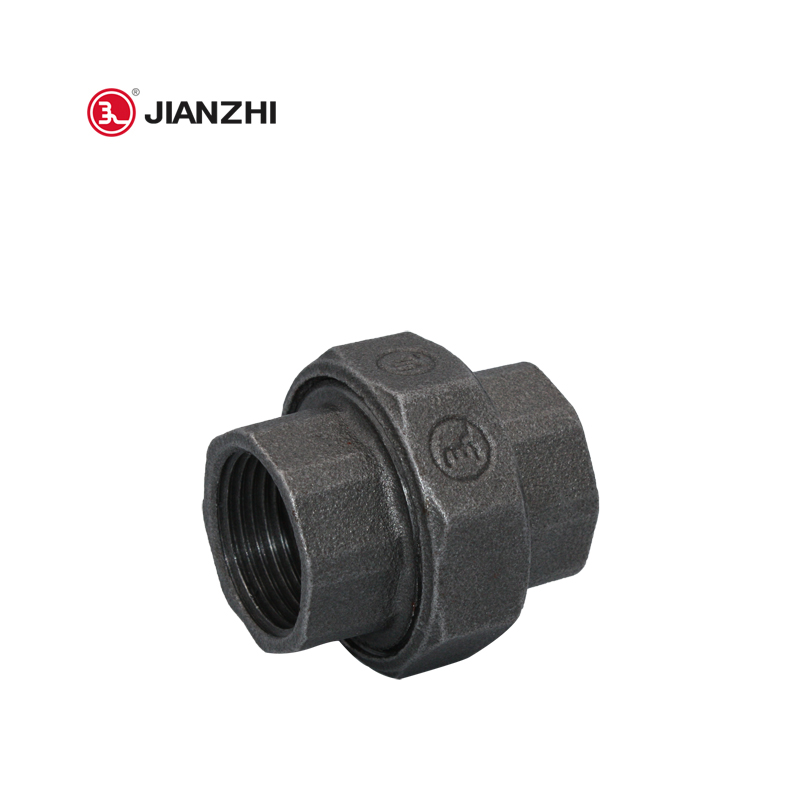

Black Pipe Fittings Union Taper Seat Fig.340
| Maximum Pressure: | 25 BAR (363PSI) (2.5MPA) CLASS 150 |
|---|---|
| Maximum Temperature: | 200°C (392°F) |
| Tensile Strength: | 350MPA |
| Suitable Applications: | Water, Oil, Gas, Petro-Chemical |
Size: 1/2”-4”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Product Description

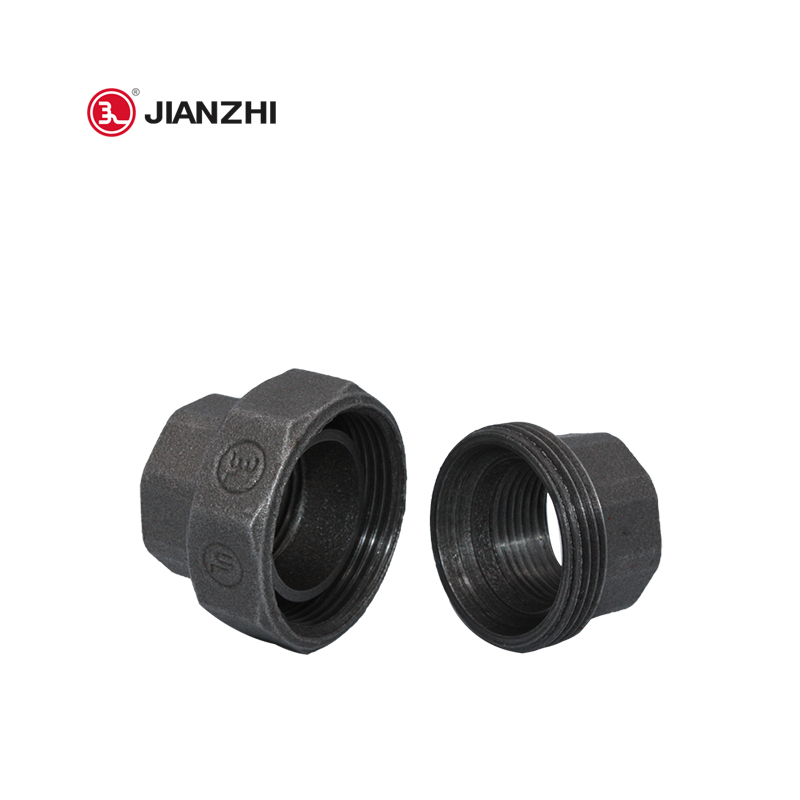

The taper union extrudes each other through the inner and outer conical inclined planes to form a sealing surface. Different from flat Union, flat Union adopts plane structure and realizes sealing surface through sealing ring.
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 12%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable
Iron Various diameters of pipes, water meters, and valves can be connected with the union. It is very convenient to install, use, and maintain the pipe joint because of the socket structure. Moreover, it has a high leak-proof capability, making it an attractive product.
JANZHI-Malleable iron pipe fittings
EN10226 /ASMEB1.20.1/IS0228/IS07-1
Protect pipe fittings from injury during connection
disrupting their original performance
please contact our staff
0.6MPa
20%
standard
0.5MPa
±0.3°
40%
standard
+0.5°
363MPa
10%
standard
330MPa
12%
33%
standard
8%
100% individuoltesting ofthe product
