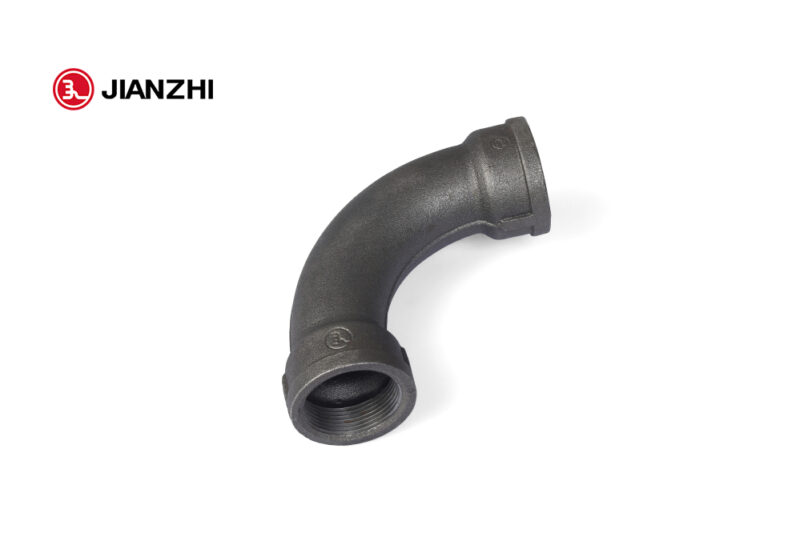

BSP Black Malleable Iron 90 Degree Bend Fig. 2

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Malleable iron is obtained from an iron-carbon alloy with a carbon content of more than 2.14% as a result of eutectic transformation during crystallization. After casting, the fittings are specially kept at a temperature of 95 ° C, i.e. slow and uniform cooling occurs. The result is a very fine-grained metal structure. This leads to a decrease in internal stresses and an increase in tensile strength.The pipelines of sanitary-technical systems, through which water, steam, gas move, consist of separate sections of pipes connected by welding, flanges or threads.
Most connections on pipes are made one-piece (welded and threaded), but for the possibility of dismantling pipelines during repair, as well as in places where valves are installed, detachable connections are provided (flange, union nut, threaded with a squeegee). In the assortment of our company, you can find fittings for all major types of pipeline connections.

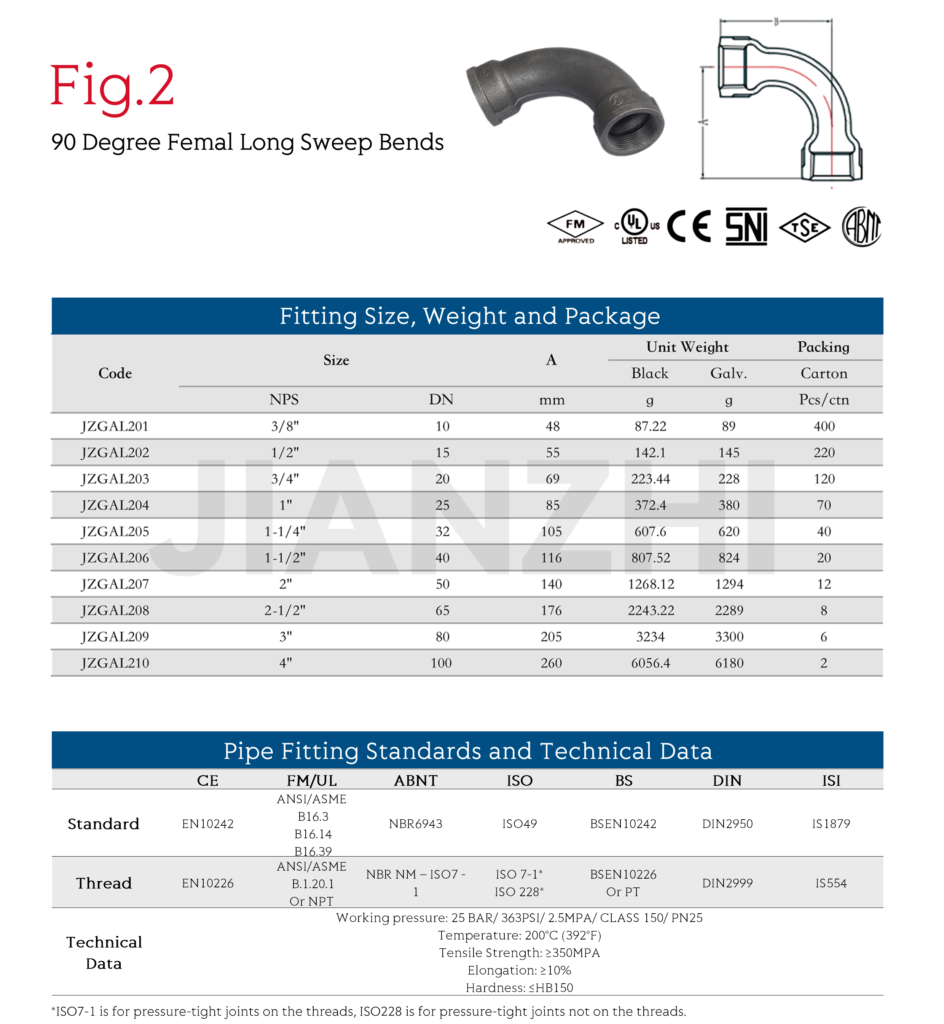

Unit:mm2
SizeIn3/81/23/411 1/41 1/2
mm101520253240
A48556985105116
B4248607595105
SizeIn22 1/234__
mm506580100__
A140176205260__
B140165190245__



Product Parameters

Size:1/8”-6”(DN6-DN150)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Product Dimensions

Elbow is mainly used to connect two equal diameter pipes perpendicular to each other at the right angle bend of the pipe, and the different diameter elbow is connected with two different diameters perpendicular to each other, so that the vertical pipes can be effectively and reasonably linked together.

Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
