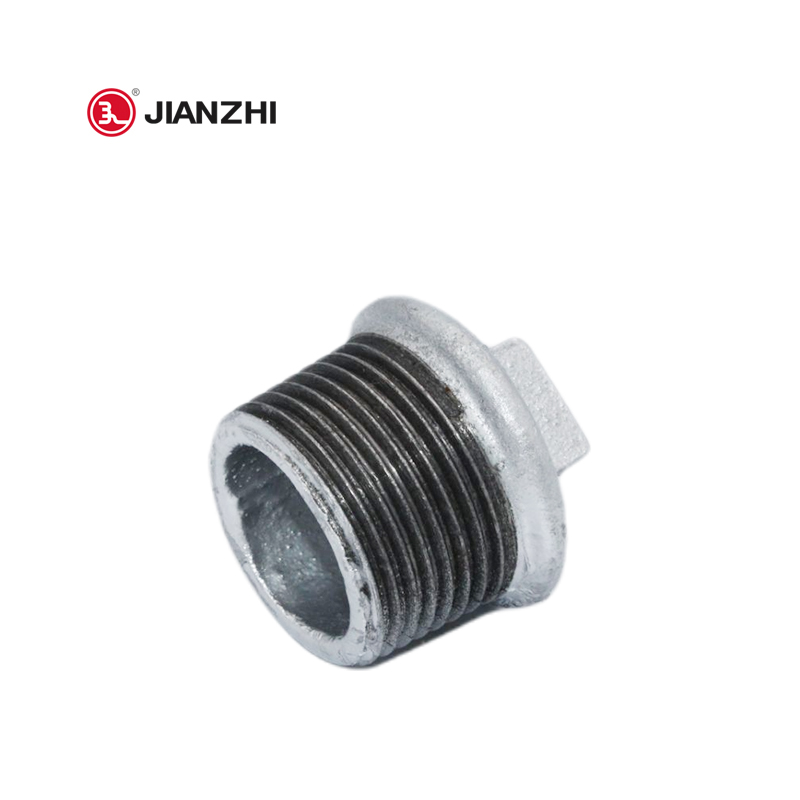

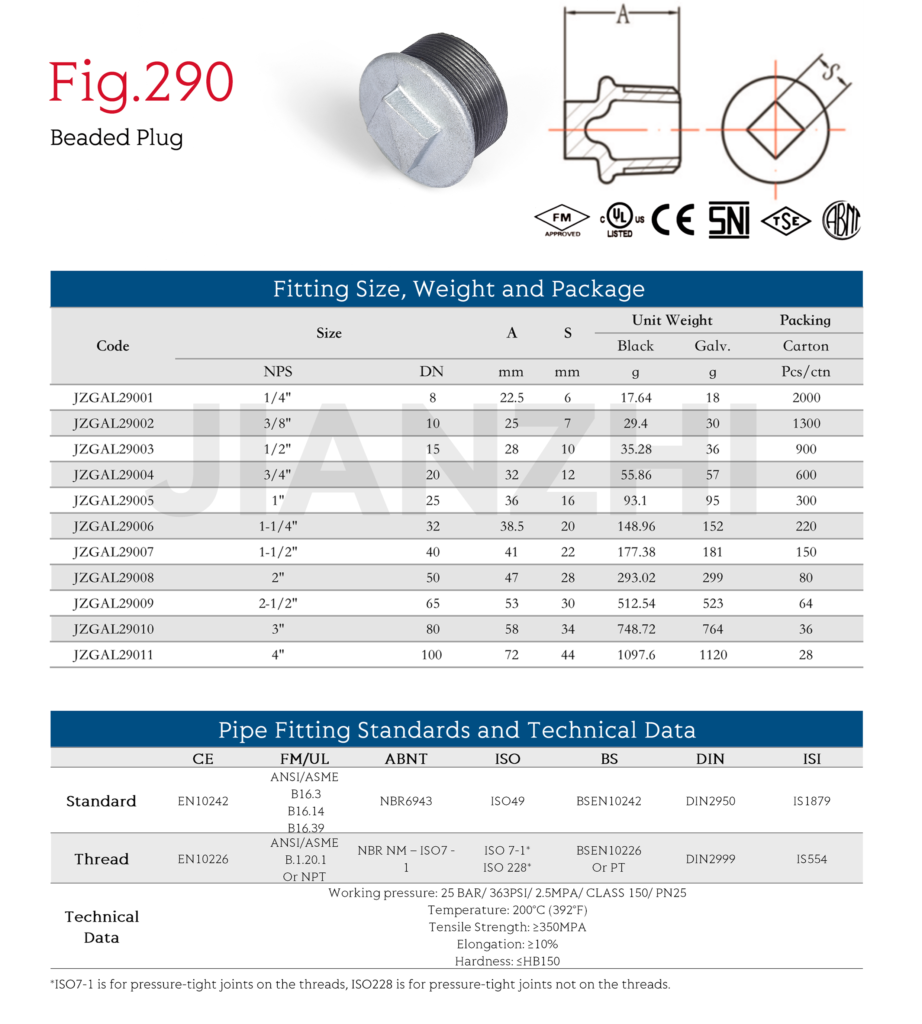

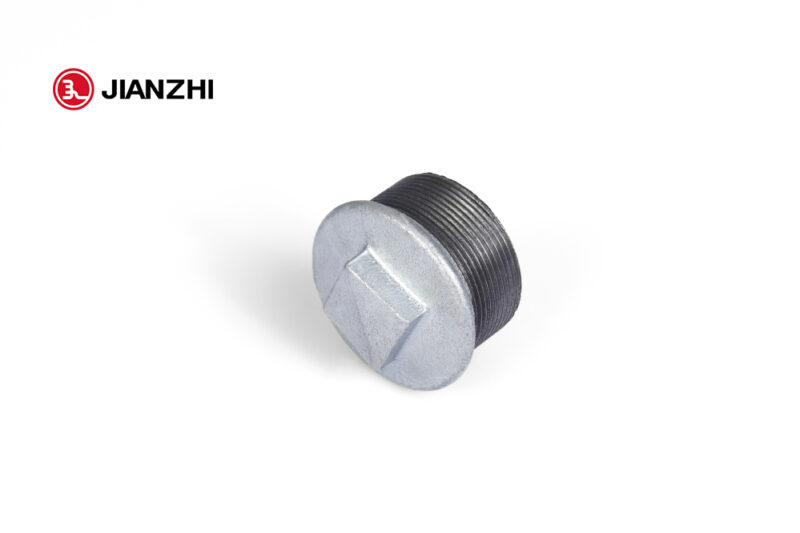

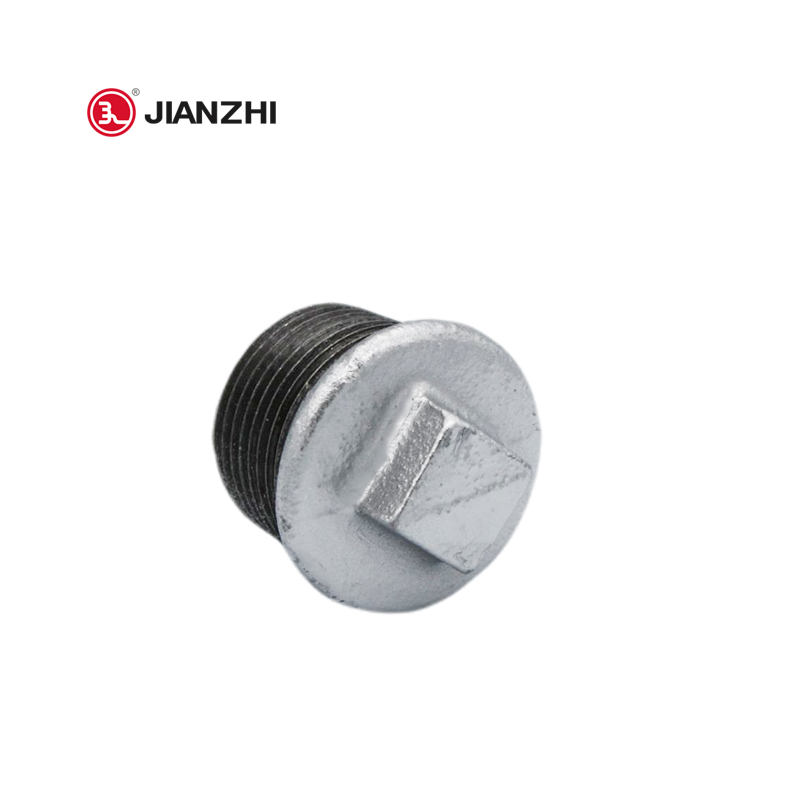

Cast Iron Pipe Fittings Galvanized Plug Beaded Fig.290
| Maximum Pressure: | 25 BAR (363PSI) (2.5MPA) CLASS 150 |
|---|---|
| Maximum Temperature: | 200°C (392°F) |
| Tensile Strength: | 350MPA |
| Suitable Applications: | Water, Oil, Gas, Petro-Chemical |
Size: 1/4”-3”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Product Description
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
Do you know?
EN 10226 standard asks the thread truns of internal thread must be ±1 1/4 — ±1 1/2, Jianzhi keep the internal thread below ±1
Water and steam systems, boilers, and centralized heating systems all use galvanized cast iron connections, as well as low-pressure gas pipelines, irrigation systems, etc. Cast iron fittings are capable of providing maximum reliability for threaded connections, virtually eliminating the possibility of various piping system malfunctions. As a reliable alternative to brass fittings, galvanized fittings are widely used to reduce the costs of pipeline systems without compromising reliability.
