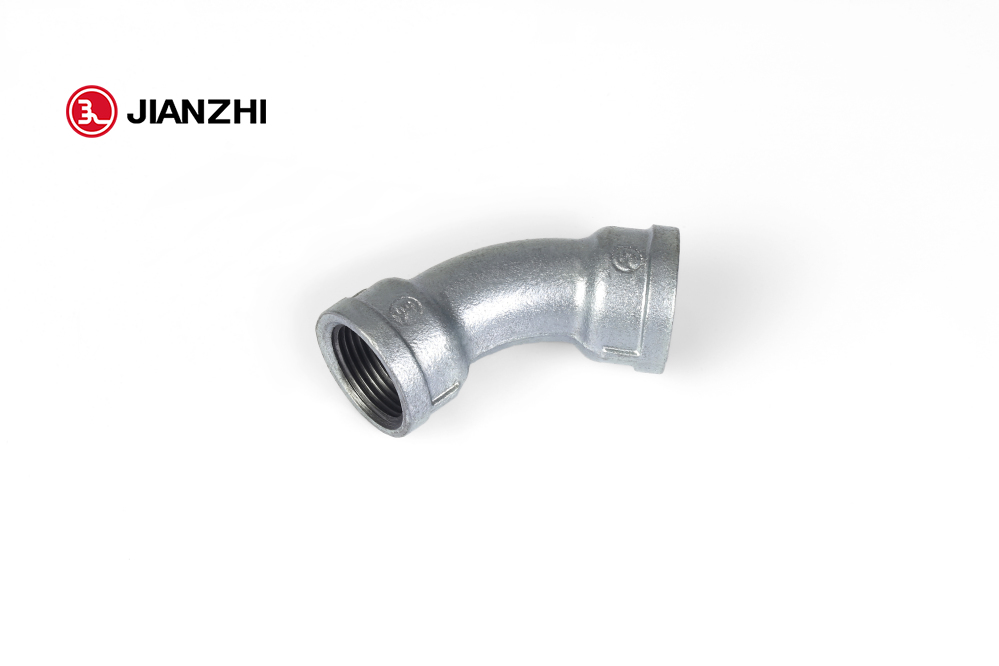

Female GI Pipe Fittings 45 Degree Fig. 41

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Size: 1/2”-2”(DN6-DN150)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Product Description

45 degree elbow fittings. Hot-dip galvanized elbows and black product elbows can be distinguished by surface treatment methods. Sizes range from 1/2″ to 4″. 2.5 MPa is the working pressure. This product has two female connectors.
45° hot-dip galvanized elbow with galvanized surface. The thickness of the zinc layer is more than 65um, which has good corrosion resistance. Common component of oil and gas systems, natural gas systems, and water systems.

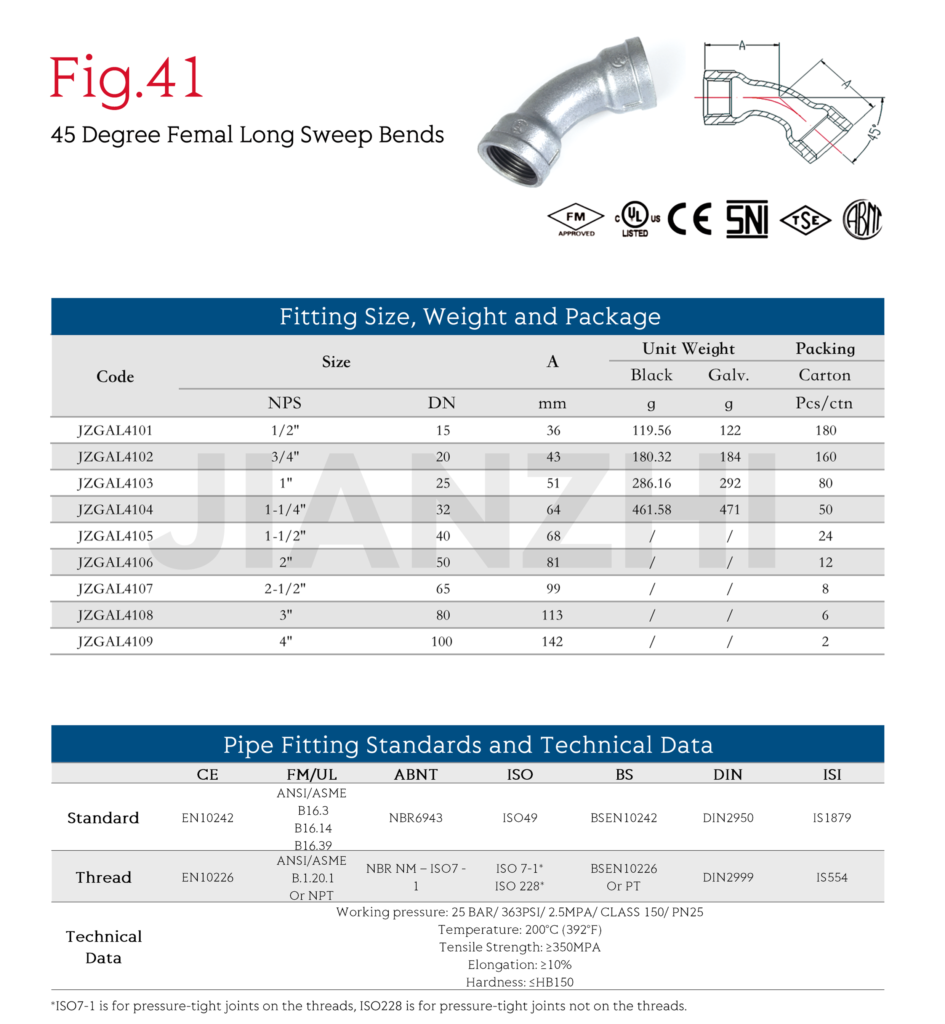

45 degree female elbow - Long-Sweep-Bends

45 degree female elbow

Everyone knows that fittings are a necessary part when assembling any plumbing system. Having made a high-quality repair once, choosing high-quality parts, you will forget about water supply problems for many years.Despite the fact that the use of cast iron communications is a thing of the past, cast iron fittings are still widely used in pipeline construction. Their enduring popularity is due to the long service life of 60 to 80 years, and the high strength of the material.



JANZHI-Malleable iron pipe fittings

Thread BSPT and NPT
EN10226 /ASMEB1.20.1/IS0228/IS07-1
International Certification
Extraordinary craftsmanship, perfection, and beauty
Free run-out structure
Protect pipe fittings from injury during connection
Free run-out:
Protect pipelines and fittings
black steel tube fittings
No Free run-out :
May cause damage to pipelines and fittings
disrupting their original performance
black steel tube fittings
*For more product performance testing videos,
please contact our staff
Thread quality higher than nationalstandards
Quick installation
70um Zinc layer thickness
Air pressure
0.6MPa

20%

national
standard
0.5MPa
Shaft Angle
±0.3°

40%

national
standard
+0.5°
Tensile strength
363MPa

10%

national
standard
330MPa
Elongation
12%

33%

national
standard
8%
Execution standards
Material:
EN1562 Or 1S0 5922
Design & Dimensions:
EN10242 0rIS0 49
Thread :
BSPT and NPT
logo

100% individuoltesting ofthe product

Thread angle
Shaft angle
Air tightness
Fully automatic detection
Width Detection
Mechanical properties
Device detection
Elongation
Zinc layer thickness
logo

Reduce carbon emissions and
use renewable energy
Focuson sustainable development

Start from 1982

Sam floot space

Tons of production per year

Tons nbentory

Sustainable Development
iso24001
iso9001
iso24001
10 Production process
Profiling – Smelt – Pouring – Anneal – Burnishing – Correct

|

Galvanization – Threading – Detail processing – Grinding

10 Production process
25Days
