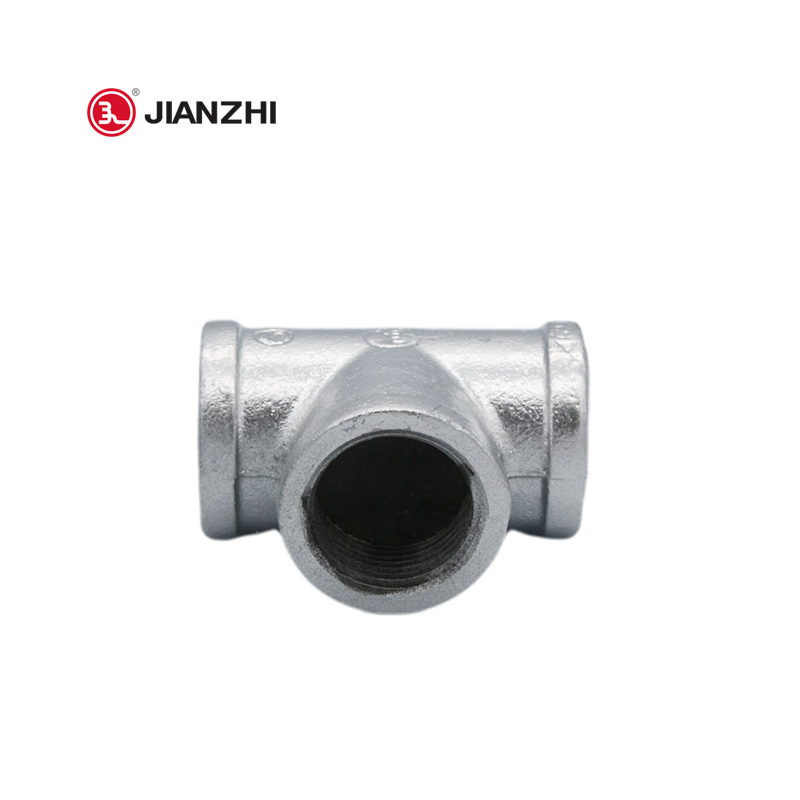

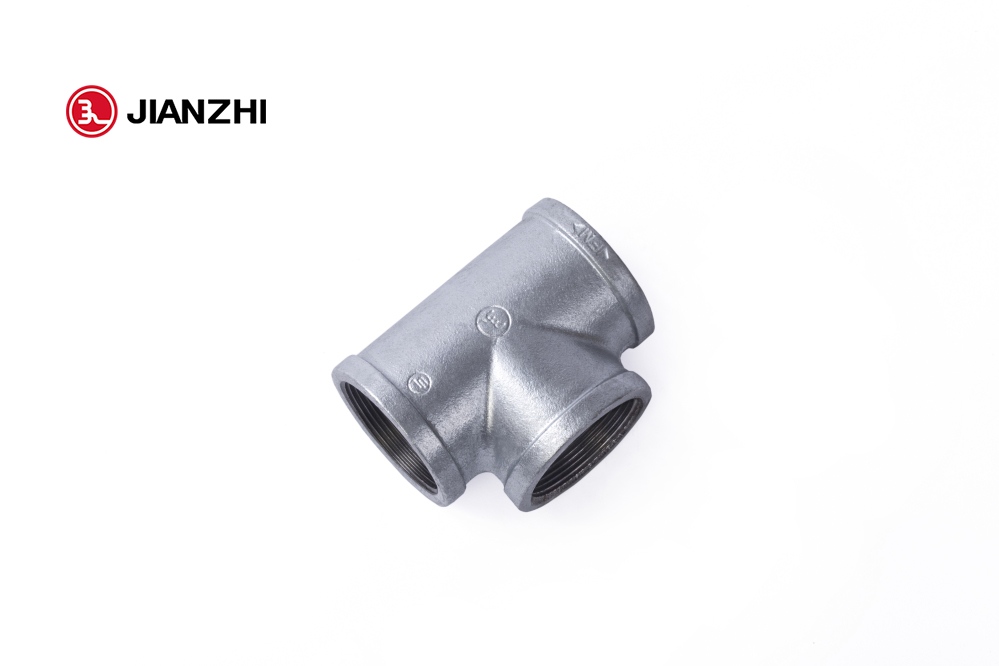

FIG.130 Tee Equal

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Category: Tag:
Inquire Now

Product Description

The Tee are pipe fittings and pipe connections. Also known as pipe fittings three-way or three-way pipe fittings, used in the main pipe branch, used for diversion, change the direction of the fluid. Malleable Fittings Tee using Malleable iron material, equal diameter three-way main and branch outlet size is the same. The surface treatment method is hot dip galvanized, not easy to rust, longer service life.

Product Parameters

Size：1/8”-6”(DN6-DN150)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures：PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification：UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

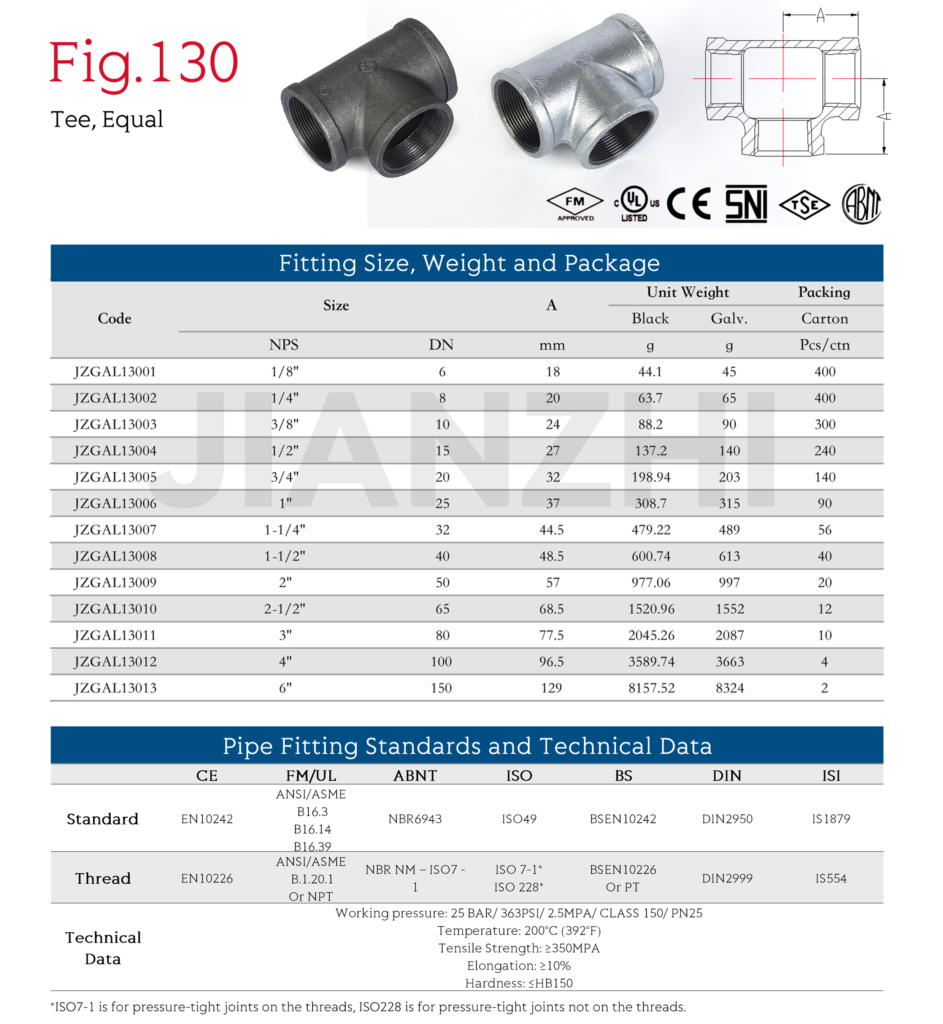

Product Dimensions



Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
