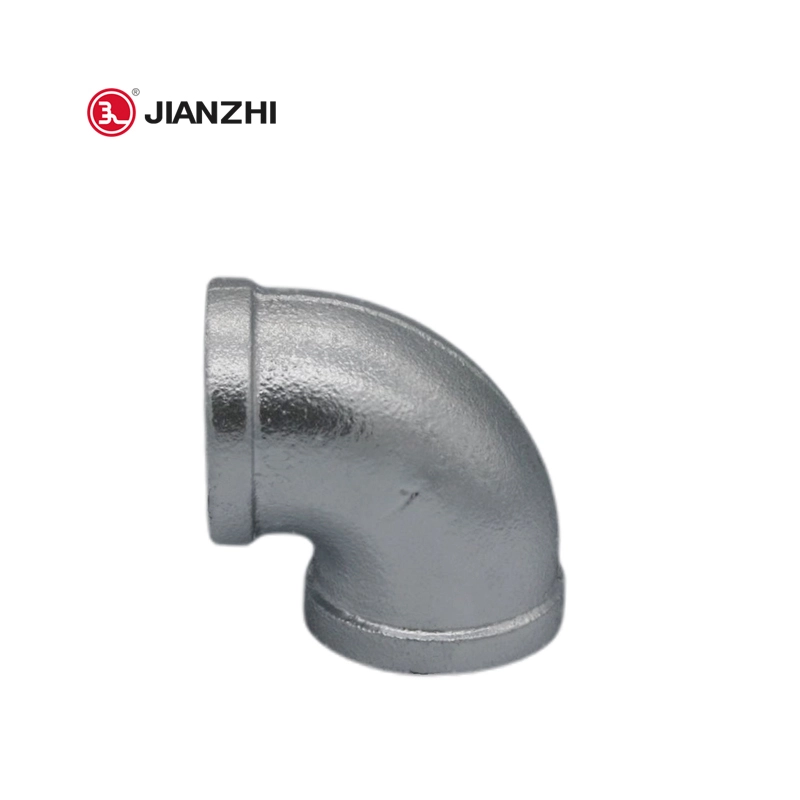

FIG.90 Elbow 90°, Equal

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

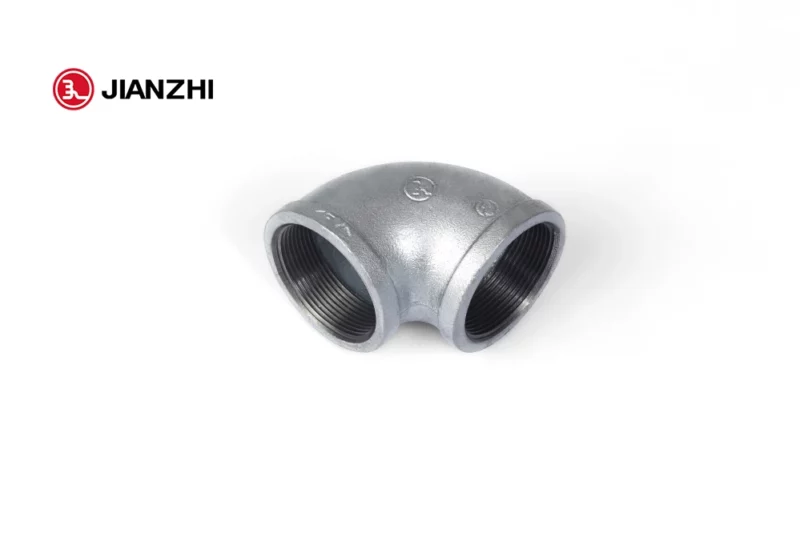

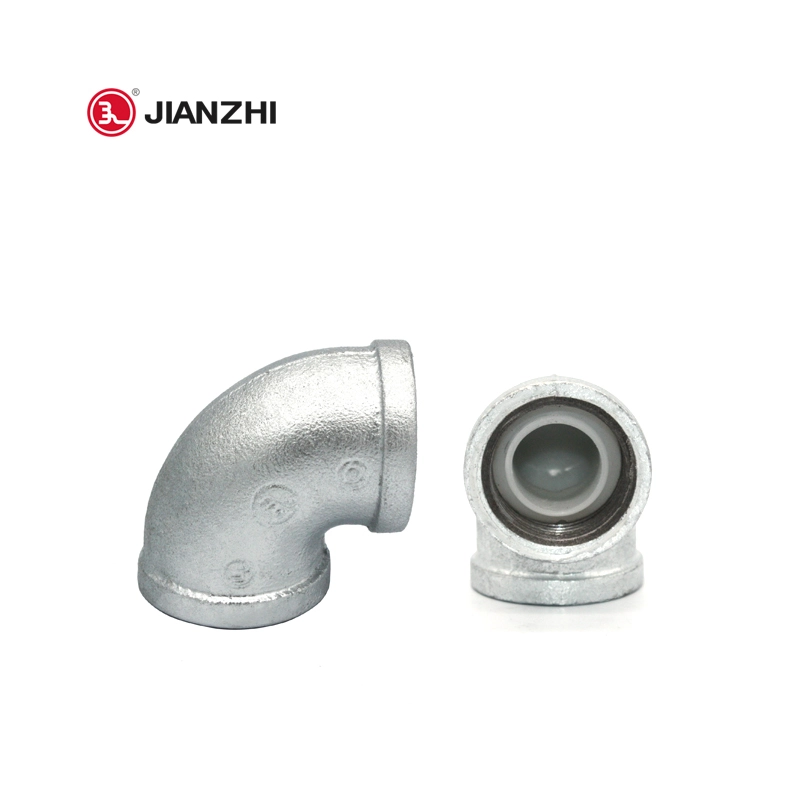

Elbow 90° equal Female/Female JIANZHI Galvanized Malleable Iron Pipe Fitting.
Elbow is mainly used to connect two equal diameter pipes perpendicular to each other at the right angle bend of the pipe, and the different diameter elbow is connected with two different diameters perpendicular to each other, so that the vertical pipes can be effectively and reasonably linked together.
90 Degree elbow is installed between the pipe to change the direction of the pipe by 90 Degree. Available in long and short radius form.
Application:Water Disposal, Electric Power, Ship Building, Nuclear Energy, Garbage Disposal, Natural Gas, Petroleum Oil.
Surface:Galvanized

Product Parameters

Size:1/8”-6”(DN6-DN150)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

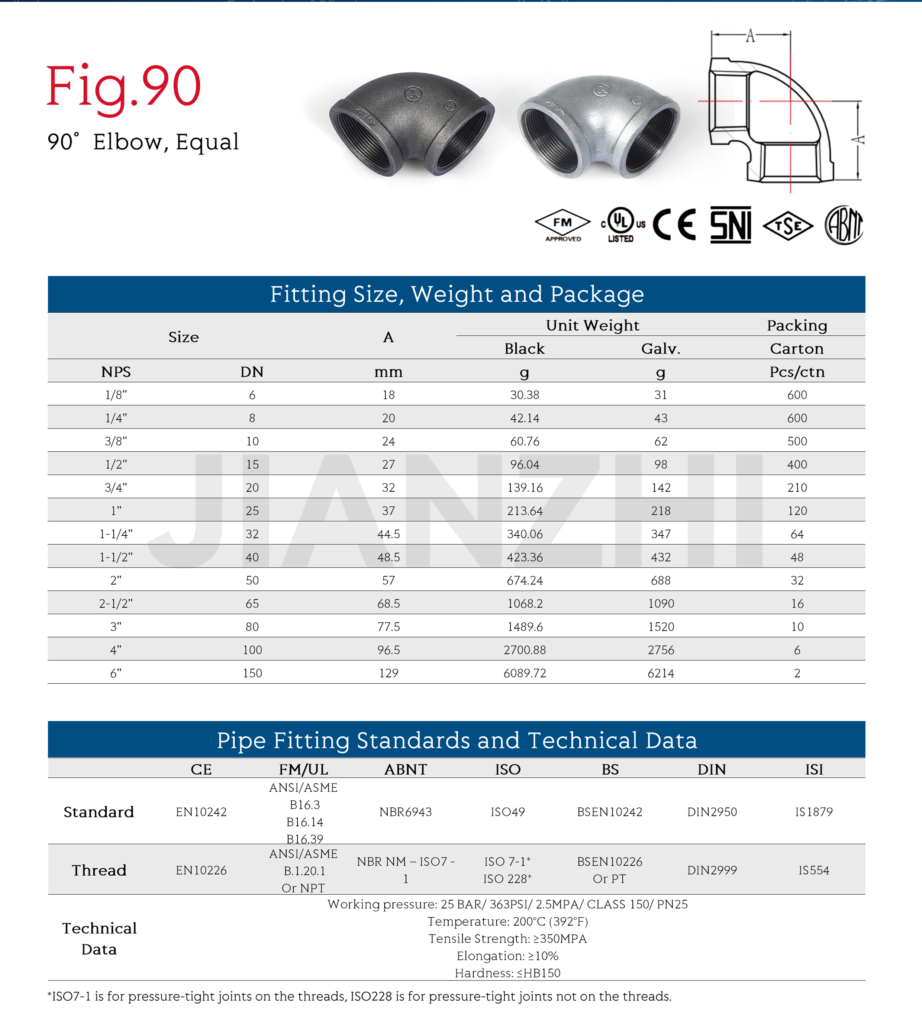

Product Dimensions



SIZEin1/43/81/23/4111/411/2221/2346
mm8101520253240506580100150
A202427323744.548.55768.577.596.5129



Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
