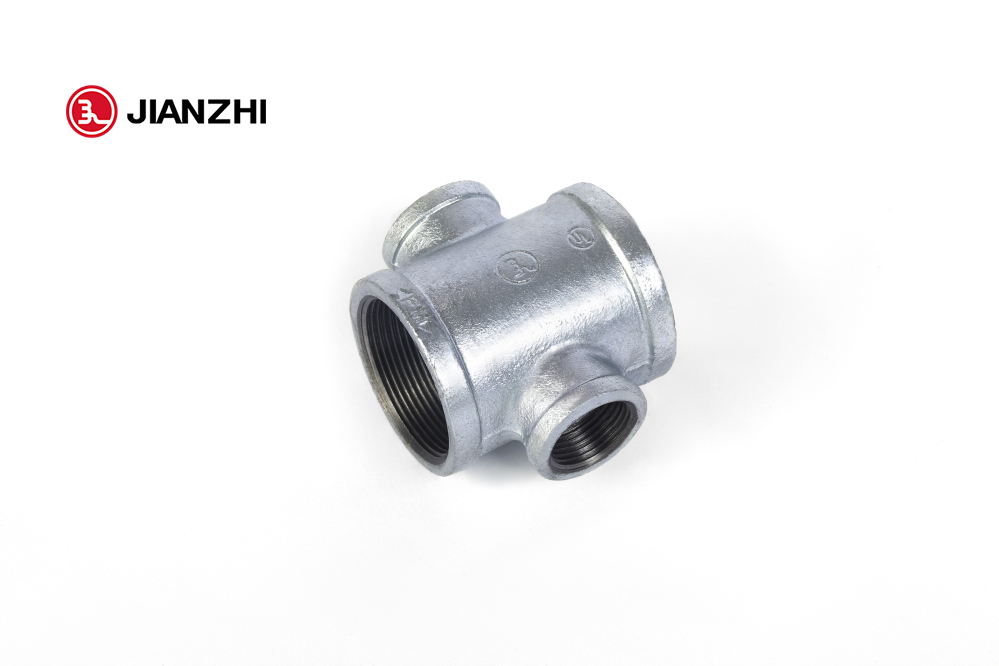

Galvanized Cross Reducer Fig.180R

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Do you know?
Our ‘Chain Link Type Quality Control’ make every one be a QA in the all production process.
That’s why we have confidence on our quality.
And the high quality helps our customers win the market.

Product Parameters

Size:3/4”-4”(DN20-DN100)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

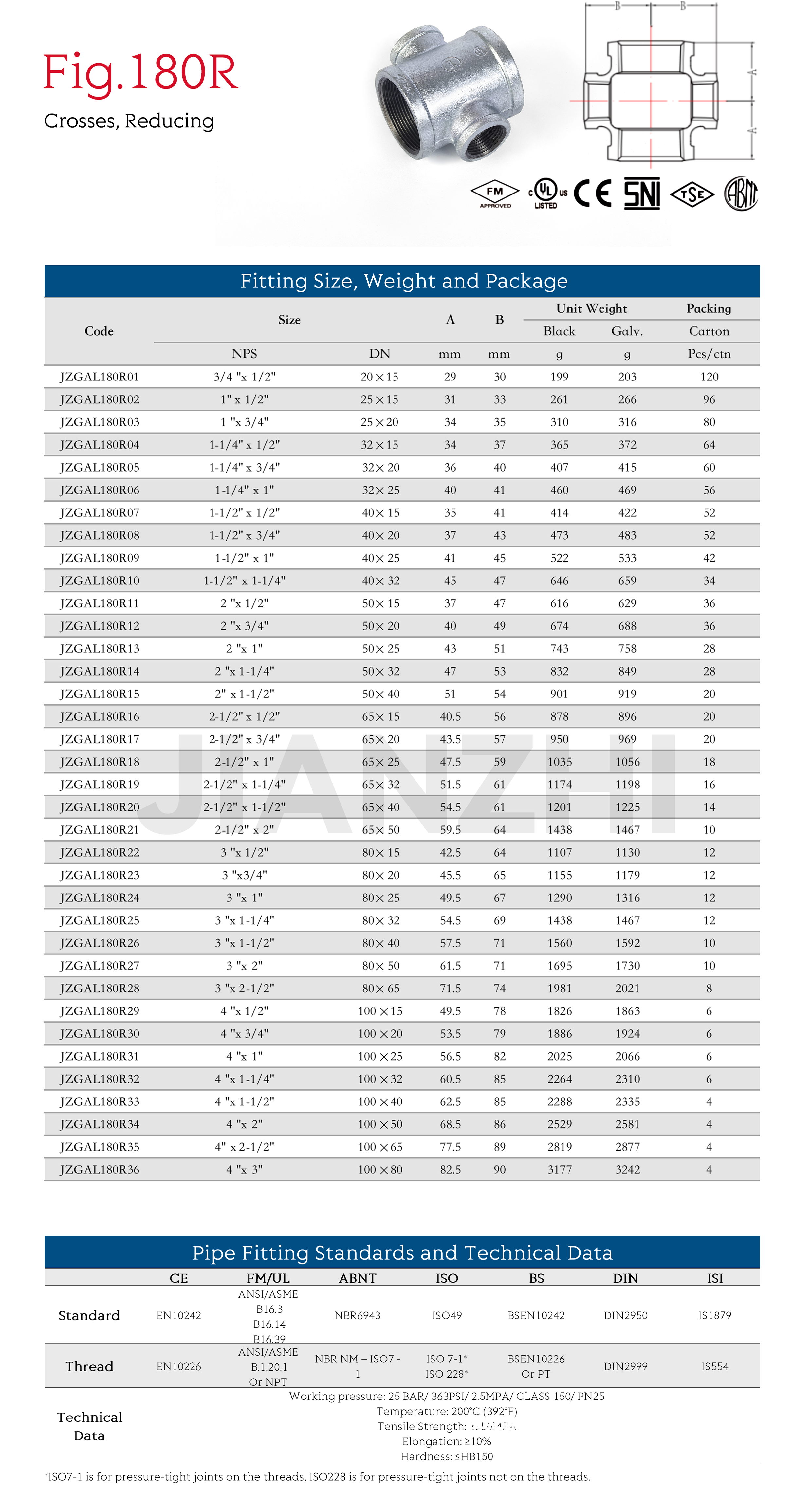

Product Dimensions

Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
