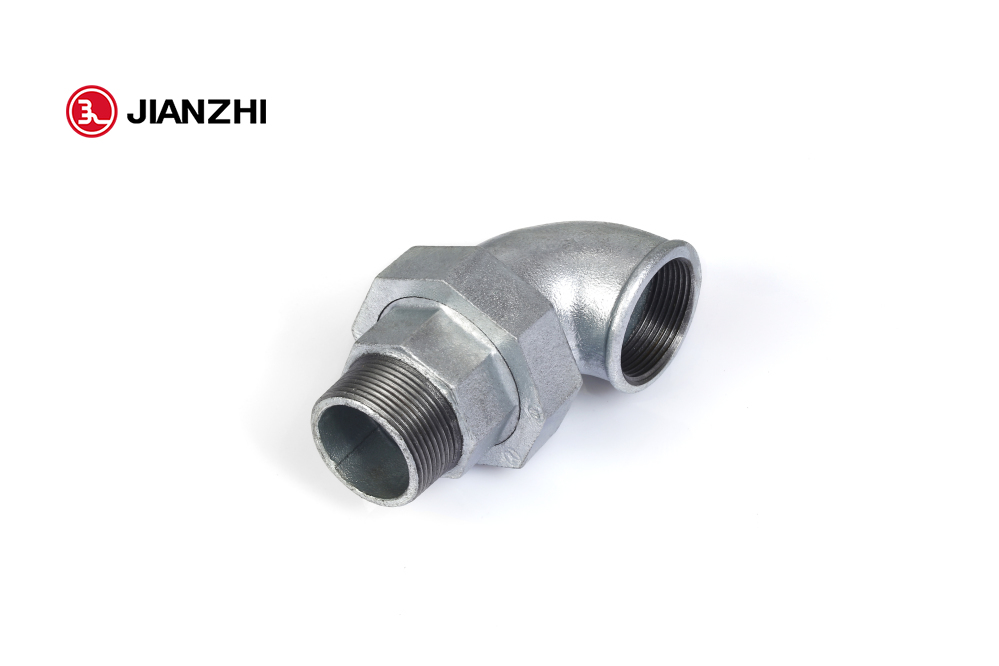

Galvanized Union Elbows Conical Seat Male and Female Fig.98

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Difference between hot dipped galvanized pipe fittings and electro galvanized pipe fittings:
Hot dipped galvanized pipe fittings:thick zinc layer, uniform zinc layer on the inner and outer walls, long service life.
Electro galvanized pipe fittings:thin zinc layer, smooth and beautiful surface, lower cost, but inner surface zinc layer is too thin.



Product Parameters

Size:1/2”-2”(DN15-DN50)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Product Dimensions



SIZEin1/23/4111/411/22
mm152025324050
A27323744.548.557
B67.57786.599.5107122



Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
