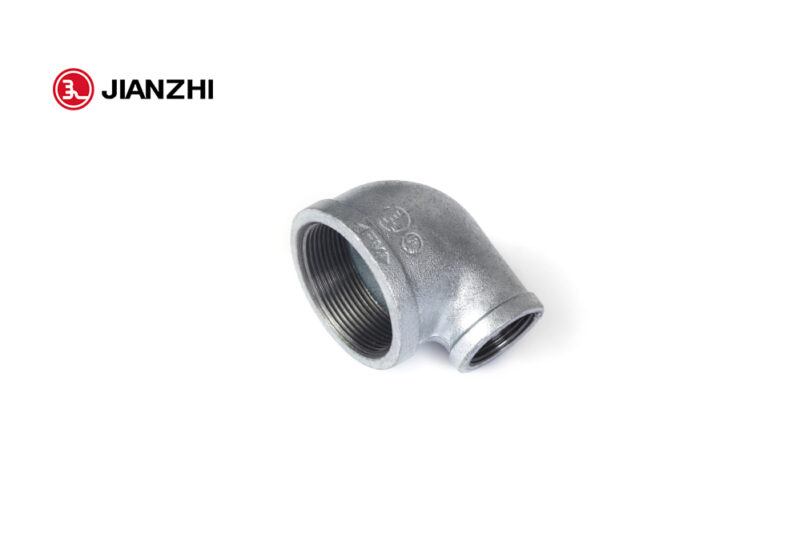

Pipe Joints 90 Degree Elbow Reducing Fig.90R

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

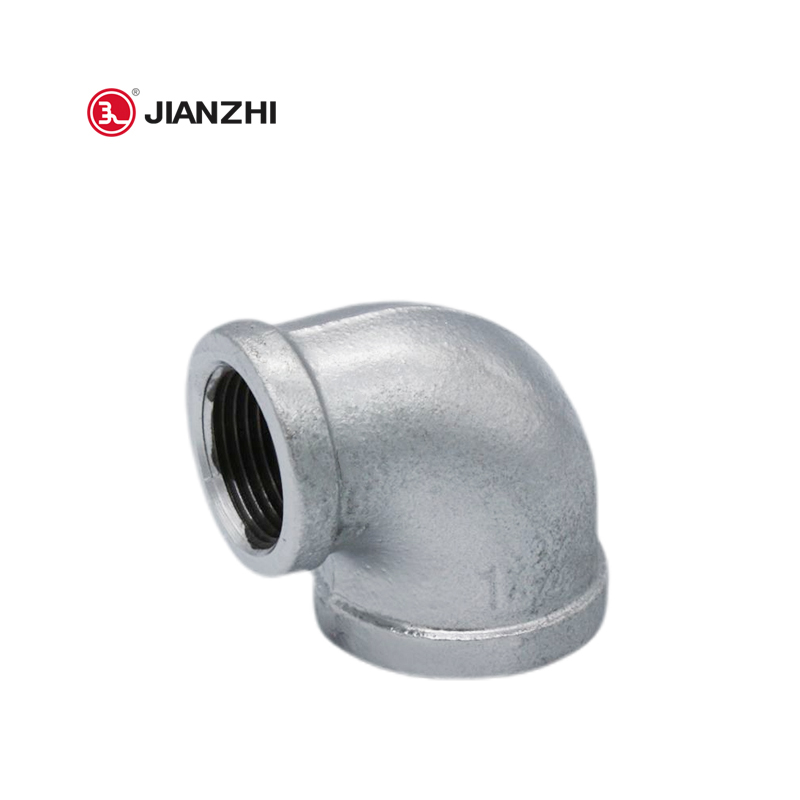

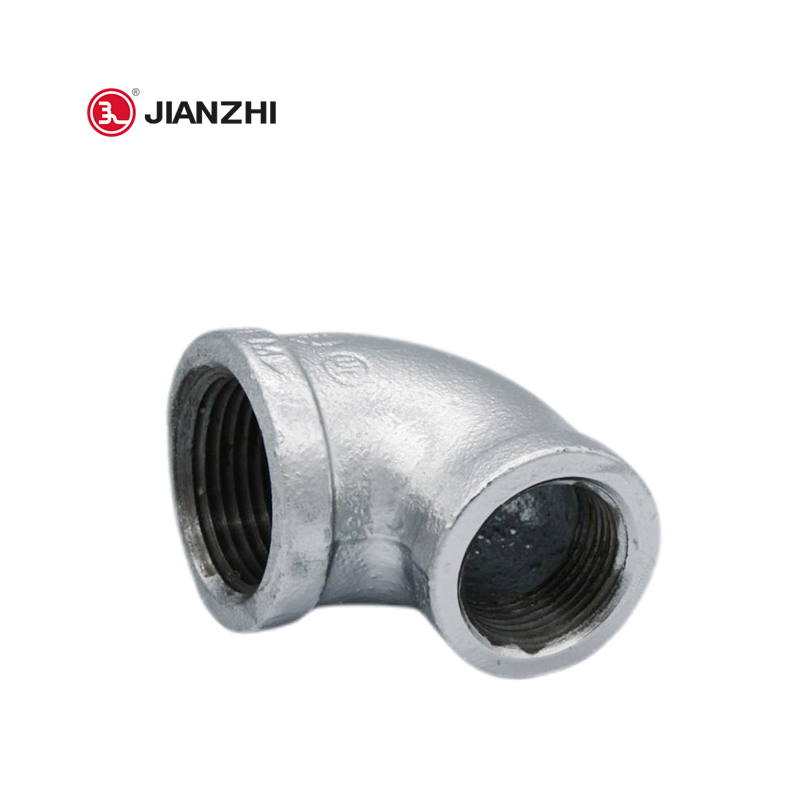

90 degree reducing elbow

Fitting is interchangeable with black cast-iron or steel. The 90°reducing elbow can change the direction of the pipe by turning it 90 degrees when connecting two pipes with different sizes. It can be used for low-pressure plumbing applications including air, water, natural gas, and steam.

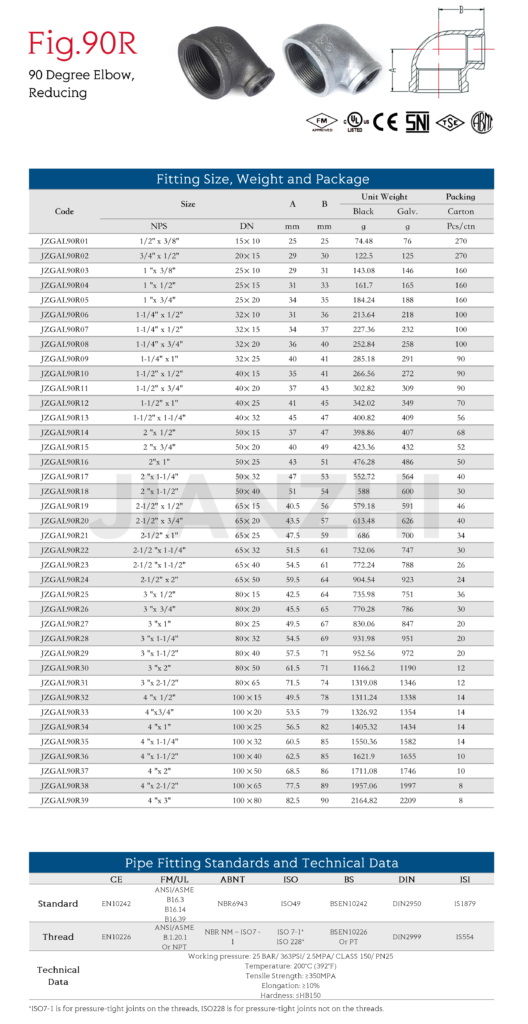

Size: 3/8”-4”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

JIANZHI has more than 38 years casting experience and technical reserve,in annealing process ,in order to ensure all fittings quality,JIANZHI adopt tunnel annealing furnaces.you may find thread cracking in some other brand products,this is a sign of immature annealing technology.If you find one unqualified products,including thread cracking,JIANZHI will pay you 200RMB. If you find a airhole product, you will get 500RMB payment. If you find a grey product,JIANZHI will pay you 1688RMB.So far, no manufacturer dares to make the above quality promise. JIANZHI has confidence to make this promise because of strict quality control.Choose JIANZHI, let JIANZHI bring you more benefits.
