What is the Nominal Diameter of a Fitting?

by | Jan 5, 2024 | Industry Knowledge

The phrase “nominal diameter” is frequently used to characterize the size of pipe fittings. However, what does this term mean, and why is it crucial to know? We’ll examine the nominal diameter of a fitting and its importance in the piping industry in more detail in this post.

Nominal Diameter vs. Actual Diameter

The diameter of the pipe that a fitting is intended to fit is known as its nominal diameter. It is vital to remember that this may not be the pipe’s true diameter.

The pipe wall’s thickness, the material utilized, and the manufacturing method are some of the variables that might affect the pipe’s diameter.

On the other hand, the nominal diameter interpretation of pipe fitting is a common measurement utilized by the industry. It is the diameter specified in the fitting’s specs and the diameter that the fitting is intended to fit.

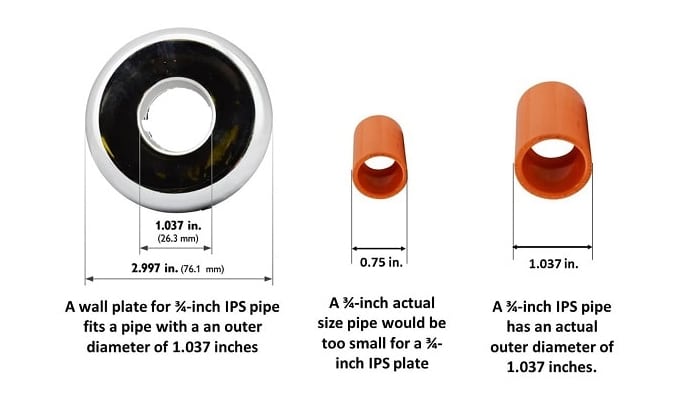

nominal diameter interpreation of pipe fitting

Why nominal diameter interpretation of pipe fitting Important?

To ensure a fitting fits correctly and functions as intended, it is essential to understand its nominal diameter. A fitting may not fit correctly if the nominal diameter is incorrect. This can result in leaks, lower flow rates, and other problems.

Furthermore, the pressure rating of a fitting is frequently ascertained using the nominal diameter of the fitting. The highest pressure that a fitting can sustain before failing is known as its pressure rating. The nominal diameter of the fitting, the fitting design, and the strength of the material all affect the pressure rating.

How to Determine Nominal Diameter

You can consult the fitting’s specifications to find out the nominal diameter. The nominal diameter of a fitting is commonly denoted as its “nominal diameter” or “ND”. To find the nominal diameter, you can also measure the diameter of the pipe that the fitting is intended to fit.

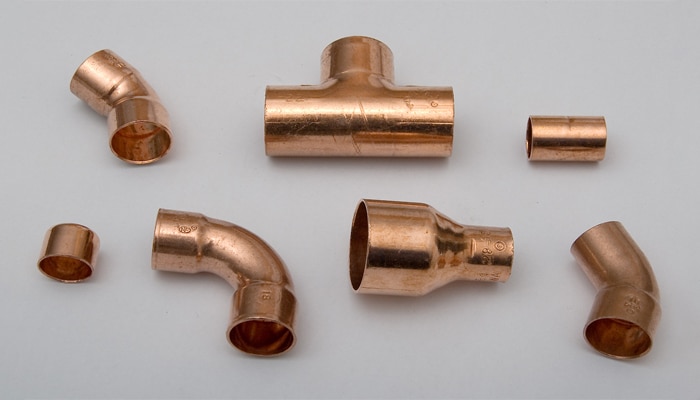

nominal diameter interpreation of pipe fitting

Conclusion

To sum up, a fitting’s nominal diameter is an important measurement that’s utilized to make sure the fitting fits correctly and functions as intended.

It’s critical to comprehend the distinction between nominal and real diameter to find the accurate nominal diameter and to consult the fitting’s specifications. You can guarantee your plumbing system’s dependability, efficiency, and safety by knowing a fitting’s nominal diameter.
