The Ultimate 2025 Guide: 7 Key Facts About Malleable Pipe Fittings & Our Malleable Iron Pipe Fittings Catalog

Key Takeaways

Malleable iron pipe fittings represent a cornerstone of modern plumbing and industrial systems, prized for a unique combination of strength and ductility achieved through a specific heat treatment process called annealing. Understanding the distinctions between global standards, such as the American ASTM A197 and the European EN 10242, is fundamental for ensuring system integrity and safety across international projects. The choice between thread types, primarily NPT for North America and BSPT for many other regions, is a critical decision point that dictates the security of a connection and prevents catastrophic failures. Surface treatments, like black oxide or hot-dip galvanization, are not merely aesthetic choices; they provide tailored protection against corrosion, making them suitable for different environments from dry, indoor applications to harsh, outdoor or chemical-exposed systems. A comprehensive grasp of the various forms within a malleable pipe fittings catalog—from elbows and tees to unions and flanges—empowers professionals and enthusiasts to design and construct robust, reliable, and purpose-built fluid and gas conveyance systems.

Table of Contents

• 1. The Fundamental Nature of Malleability in Iron: A Metallurgical Journey
• 2. Decoding Global Standards: ASTM, EN, and the Language of Quality
• 3. The Art of the Thread: NPT, BSPT, and Ensuring a Perfect Seal
• 4. Surface Treatments Unveiled: Black vs. Galvanized Fittings
• 5. A Tour Through the Malleable Pipe Fittings Catalog: Form and Function
• 6. The Broader Context: Applications Across Industries and DIY Projects
• 7. Ensuring Longevity and Safety: Best Practices for Installation and Maintenance
• Frequently Asked Questions
• References

1. The Fundamental Nature of Malleability in Iron: A Metallurgical Journey

To truly comprehend the utility and resilience of malleable iron pipe fittings, one must first embark on a brief but profound exploration into the heart of the material itself. The term “malleable” is not a mere descriptor; it is the outcome of a carefully orchestrated metallurgical transformation, a process that coaxes a notoriously brittle material, white cast iron, into a state of formidable toughness and ductility. This journey from brittleness to resilience is central to the human capacity to build robust systems capable of conveying fluids and gases under pressure, forming the very arteries of our industrial and domestic infrastructure. It is a testament to our ability to understand and manipulate the atomic structure of matter to serve our collective needs for safety, efficiency, and longevity. The story of malleable iron is, in essence, a story of controlled change, where heat and time conspire to fundamentally alter the character of the iron, making it a trusted servant in countless applications.

From Brittle to Ductile: The Annealing Transformation

At its inception, the raw material for a malleable iron pipe fitting is white cast iron, an alloy known for its extreme hardness and, consequently, its profound brittleness. In this state, the carbon within the iron exists primarily as iron carbide, or cementite, a compound that forms a network of hard, plate-like structures. While this makes the iron highly resistant to abrasive wear, it also renders it susceptible to fracture under sharp impact or tensile stress—much like a pane of glass. It is wholly unsuitable for applications like plumbing, where the system must withstand vibrations, pressure fluctuations, and the stresses of installation. The solution lies in a high-temperature heat treatment process known as annealing. During annealing, the fittings are heated to temperatures exceeding 900°C (1650°F) and held there for an extended period, sometimes for days. This sustained thermal energy provides the catalyst for a deep structural change. The rigid iron carbide network begins to break down. The carbon atoms, liberated from the cementite, migrate and regroup, precipitating into irregular, nodular clusters of pure graphite. This process, known as graphitization, is the very soul of creating malleable iron. The resulting material is no longer a rigid matrix but a softer, more ductile iron matrix interspersed with these graphite nodules, which act to deflect and absorb energy rather than allowing cracks to propagate. The fitting is thus transformed; it retains much of its tensile strength but has gained the ability to deform slightly under stress, to bend rather than break. This acquired ductility is what we call malleability, and it is this property that makes malleable iron pipe fittings so reliable.

Microstructure Matters: Graphite Nodules and Their Role

To appreciate the significance of this transformation, we must visualize the internal landscape of the iron. In the initial white iron state, imagine the structure as a collection of delicate, interlocking glass plates (the cementite) embedded in a matrix. A shock or stress easily finds a path to shatter these plates, leading to a catastrophic failure of the whole. After annealing, the landscape is entirely different. The glass plates have vanished, replaced by what one might compare to soft, rounded clumps of graphite (temper carbon) scattered throughout a more forgiving iron (ferrite or pearlite) matrix. When a stress is now applied, a potential crack encounters one of these graphite nodules. Instead of propagating through a brittle structure, the crack’s energy is blunted and dispersed around the soft nodule. The nodule effectively acts as a “crack-arrester,” forcing the fracture path to become more tortuous and requiring significantly more energy to cause failure. This microscopic behavior translates directly into macroscopic performance. It is why a malleable iron elbow can be tightened securely with a wrench without shattering and why a pipeline constructed from these fittings can withstand the subtle ground shifts and operational vibrations that are inevitable over its service life. The shape and distribution of these graphite nodules are not accidental; they are the direct, controlled result of the annealing cycle’s temperature, duration, and cooling rate, parameters that manufacturers like Jianzhi Pipe Fittings have refined over decades of experience since 1982 to produce consistently reliable malleable iron pipe fittings.

Whiteheart vs. Blackheart: Two Paths to Malleability

The journey of annealing can proceed down two principal paths, resulting in two distinct types of malleable iron: “Whiteheart” and “Blackheart.” The choice of process depends on the desired final properties and is often tied to regional manufacturing traditions. The Blackheart process, which is predominant in the United States and is the basis for standards like ASTM A197, involves annealing the white iron castings in a neutral atmosphere. The graphitization process occurs throughout the entire cross-section of the fitting. When a Blackheart fitting is fractured, the resulting surface is dark grey or black due to the exposed graphite nodules, hence the name. This process yields a material with excellent ductility and machinability, with a uniform structure from the surface to the core. Conversely, the Whiteheart process, more common in Europe and reflected in standards like EN 10242, involves annealing the castings in a decarburizing atmosphere. In this method, carbon is not only precipitated as graphite but is also actively removed from the surface of the fitting. The result is a fitting with a layered structure: a tough, ductile, low-carbon steel-like surface (the “white heart” layer) and a core that may still contain some graphite. This provides a surface that is particularly well-suited for welding or brazing and possesses high strength, though the overall ductility might be slightly less uniform than that of a Blackheart fitting. Understanding this distinction is not merely an academic exercise; it informs the selection of fittings for specific applications and explains subtle differences in performance characteristics and standards across different global markets. Both paths lead to a malleable product, but the nature of that malleability is shaped by the chosen thermodynamic journey.

2. Decoding Global Standards: ASTM, EN, and the Language of Quality

In a globalized world, the seamless integration of components from different manufacturers and regions into a single, functional system is a monumental challenge. For something as foundational as plumbing and piping, where failure can lead to significant property damage, environmental harm, or even loss of life, a common language of quality and performance is not a luxury but a necessity. This language is codified in technical standards. These documents are the product of rigorous engineering consensus, representing a collective agreement on material composition, mechanical properties, dimensions, testing procedures, and marking requirements. For malleable iron pipe fittings, two standards dominate the international landscape: ASTM A197 in North America and EN 10242 in Europe. To engage with the world of professional plumbing, construction, or industrial maintenance is to engage with these standards. They are the guarantors of interoperability, safety, and reliability, providing a framework of trust that allows an engineer in Houston to confidently specify a fitting that might be manufactured in Hebei, knowing it will meet a predictable and verifiable level of performance. These are not just bureaucratic documents; they are the bedrock of modern engineering practice.

The American Standard: Understanding ASTM A197

ASTM International, formerly the American Society for Testing and Materials, publishes the ASTM A197 / A197M standard, which is the definitive specification for “Cupola Malleable Iron.” This standard is the cornerstone for malleable iron pipe fittings used in the United States and other regions that follow American engineering conventions. It meticulously outlines the requirements for Blackheart malleable iron. The standard dictates specific limits on the chemical composition of the iron, controlling the percentages of carbon, manganese, silicon, sulfur, and phosphorus to ensure the proper formation of the desired microstructure during annealing. More importantly, it establishes minimum mechanical properties. It requires that test bars cast from the same batch of iron exhibit a minimum tensile strength of 40,000 psi (276 MPa) and a minimum yield strength of 30,000 psi (207 MPa). Perhaps most characteristic of its focus on ductility, it mandates a minimum elongation of 5%. This elongation value is a direct measure of the material’s ability to deform before fracturing, a key safety feature of malleable iron. Furthermore, ASTM A197 specifies methods for casting, heat treatment, and testing, ensuring that every fitting marked with its designation has undergone a process designed to produce a reliable and consistent product. When you select a fitting compliant with ASTM A197, you are not just buying a piece of metal; you are procuring an object whose material integrity has been defined and verified by a century-old system of engineering diligence.

The European Norm: Navigating EN 10242

Across the Atlantic, the European Committee for Standardization (CEN) provides the governing standard, EN 10242, titled “Threaded pipe fittings in malleable cast iron.” This standard is the harmonized specification for all member states of the European Union and is widely adopted elsewhere. While its goal is the same as ASTM A197—to ensure the quality and safety of malleable iron pipe fittings—its approach and specifics reflect European manufacturing traditions, particularly the prevalence of the Whiteheart process. EN 10242 specifies material property grades, such as W400-05, where ‘W’ signifies Whiteheart malleable cast iron, ‘400’ indicates a minimum tensile strength of 400 MPa, and ’05’ denotes a minimum elongation of 5%. The standard provides a comprehensive framework covering everything from thread types (typically ISO 7-1, which is a BSPT-type thread) to design criteria and pressure-temperature ratings. It also includes rigorous testing protocols, including a leakage tightness test on every single fitting intended for pressure service, often conducted with air under water. This 100% pressure testing requirement is a hallmark of the European standard, offering a high degree of assurance against leaks. Navigating EN 10242 is essential for any project within the European economic area or for multinational companies seeking to standardize their component specifications across different operational theaters.

A Comparative Table: ASTM vs. EN for Malleable Iron Fittings

A direct comparison illuminates the subtle but significant differences between these two pillars of the industry. While both aim for safety and quality, their paths diverge in material science, testing philosophy, and regional conventions. Understanding these differences is vital for procurement specialists, design engineers, and installers who work on international projects or source components globally. The choice of standard is not arbitrary; it is tied to the legal and technical requirements of the jurisdiction where the system will be installed and operated.

3. The Art of the Thread: NPT, BSPT, and Ensuring a Perfect Seal

Having established the robust nature of the material itself, our attention must turn to the primary function of a fitting: to connect. The success of this connection hinges on the precise geometry of its threads. A pipe thread is far more than a simple helical groove; it is a sophisticated sealing mechanism designed to create a leak-proof joint capable of withstanding immense pressure. The threads on a fitting and a pipe must engage not just mechanically, but intimately, forming a barrier that is impervious to the fluid or gas it contains. In the world of malleable iron pipe fittings, two thread forms reign supreme, each with its own distinct geometry and sealing philosophy: NPT and BSPT. The distinction between them is not trivial. It is a fundamental difference in design that makes them incompatible. An attempt to join them is a recipe for failure, a lesson that many have learned through costly leaks and system downtime. A deep understanding of these thread standards is, therefore, not an esoteric detail but a practical necessity for anyone who works with threaded pipe.

NPT (National Pipe Thread): The Tapered American Standard

The NPT, or National Pipe Taper, is the standard thread form in the United States and Canada. Governed by the ASME B1.20.1 standard, its defining characteristic is the taper of both the male and female threads. The threads are cut on a 1-degree, 47-minute angle (a 1 in 16 taper on the diameter). When a male NPT fitting is threaded into a female NPT fitting, the flanks of the threads are designed to wedge against each other. This wedging action, a form of interference fit, is the primary sealing mechanism. As the fitting is tightened, the threads deform slightly, creating an intensely compressed seal along the thread crests and roots. The V-shaped profile of the threads, with a 60-degree angle, further facilitates this metal-to-metal seal. However, due to the nature of this helical path, a perfect seal is not guaranteed by the threads alone. Small spiral leak paths can remain. For this reason, NPT connections almost always require the use of a thread sealant—either a PTFE tape or a liquid/paste sealant—to fill these microscopic voids and ensure a truly gas-tight or liquid-tight joint. The reliance on this combination of thread deformation and sealant is the core principle of the NPT sealing method.

BSPT (British Standard Pipe Taper): The International Counterpart

Outside of North America, the BSPT, or British Standard Pipe Taper, is far more common. It is defined by standards like ISO 7-1 and its predecessors, such as BS 21. Like NPT, BSPT is a tapered thread system designed to seal on the thread flanks. However, there are two crucial differences. First, the angle of the V-shaped thread profile is 55 degrees, not 60. Second, the pitch (the distance between threads) and the taper angle are different from NPT for most pipe sizes. These geometric dissimilarities are what make the two systems fundamentally incompatible. While a male NPT might seem to start threading into a female BSPT, the different thread angles and pitches will cause them to bind and gall, destroying the threads and preventing any possibility of a secure seal. The sealing philosophy of BSPT is similar to NPT: the primary seal is made on the threads, and a sealant is required to ensure a pressure-tight joint. It is often used in conjunction with its parallel-threaded cousin, BSPP (British Standard Pipe Parallel), where a male BSPT tapered thread can seal into a female BSPP parallel port, with the seal being made by a washer or gasket compressed against a machined face on the female fitting. This versatility adds to its widespread adoption in Europe, Asia, and across the Commonwealth.

The Perils of Mismatching: Why Thread Compatibility is Paramount

The temptation to force a connection between mismatched threads, often born of necessity or ignorance, is a dangerous one. Attempting to join an NPT fitting with a BSPT fitting is a textbook example of a poor engineering practice that courts disaster. Because the thread angles (60° vs. 55°) and pitches do not align, only the very first few threads will engage. As the wrench is turned, the threads will cross and deform, a process known as “galling.” This permanently damages both the male and female threads, creating a joint that feels tight but possesses virtually no structural integrity or sealing capability. It will leak, often immediately and profusely, upon pressurization. Even a low-pressure application is not safe, as the weakened joint is susceptible to failure from vibration or thermal cycling. The only proper course of action is to ensure absolute compatibility. This requires careful identification of the threads on existing pipework and the selection of new malleable iron pipe fittings that match precisely. In situations where a transition between the two systems is unavoidable, specialized adapters—NPT to BSPT—must be used. These adapters are purpose-built with a correct female thread on one end and a correct male thread on the other, providing a safe and reliable bridge between the two distinct worlds of pipe threading.

4. Surface Treatments Unveiled: Black vs. Galvanized Fittings

The selection of a malleable iron pipe fitting extends beyond its material science and thread geometry to a consideration of its interface with the external world. The surface of a fitting is its first line of defense against the relentless forces of corrosion. Iron, for all its strength, has an inherent tendency to react with oxygen and water, reverting to its more stable oxidized state in the form of rust. To mitigate this, malleable iron pipe fittings are typically supplied with one of two principal surface finishes: “black” or “galvanized.” This choice is far from cosmetic. It is a critical engineering decision that directly impacts the fitting’s service life, its suitability for a given environment, and its compatibility with the fluid it will carry. To choose between a black and a galvanized fitting is to make a judgment about the anticipated corrosive challenges the system will face. It requires a thoughtful assessment of the application, balancing cost, performance, and regulatory requirements to ensure the long-term integrity of the piping system.

The Rustic Appeal of Black Pipe Fittings: More Than Just Aesthetics

So-called “black pipe fittings” are not, in fact, bare iron. They are treated with a protective coating, typically a black oxide conversion coating or a similar rust-preventative lacquer. This process provides a minimal layer of corrosion resistance, primarily intended to protect the fitting from rusting during storage and transit before installation. Once installed, this thin layer offers very limited protection against environmental moisture. Consequently, black malleable iron pipe fittings are best suited for applications where the risk of external corrosion is low. This includes indoor gas distribution lines, closed-loop hydronic heating systems, fire sprinkler systems (in dry-pipe systems, the interior is often galvanized), and oil lines. In these environments, the fitting is shielded from rain, condensation, and corrosive atmospheres. The “black” finish has also found a second life in the world of interior design, where its dark, industrial-chic appearance is highly valued for constructing furniture, shelving, and lighting fixtures. In this context, its corrosion resistance is secondary to its aesthetic qualities, although a clear coat is often applied to prevent rust from forming in humid indoor environments and to avoid staining surfaces. The choice for a black pipe fitting is thus a choice for dry, non-corrosive service or for a specific visual style where environmental exposure is not a concern.

The Protective Shield of Galvanization: Hot-Dip vs. Electroplating

For applications where corrosion is a significant threat, galvanization is the standard solution. Galvanizing is the process of applying a protective layer of zinc to the iron fitting. Zinc is more reactive than iron, meaning it will corrode preferentially. This “sacrificial protection” ensures that even if the zinc coating is scratched, the surrounding zinc will corrode first, protecting the exposed iron beneath. There are two common methods of galvanizing. Hot-dip galvanization, the most robust method, involves immersing the finished fitting in a bath of molten zinc. This process creates a thick, durable, and metallurgically bonded layer of zinc-iron alloys and pure zinc on the surface. The resulting coating is highly resistant to abrasion and provides long-term protection even in harsh outdoor, industrial, or marine environments. The other method is electro-galvanization or electroplating, where zinc is deposited onto the fitting using an electric current in an electrolyte bath. This produces a thinner, more uniform, and shinier coating. While it provides good corrosion resistance, it is generally considered less durable than a hot-dip finish and is more suitable for moderately corrosive environments. For most demanding plumbing and industrial applications, such as outdoor water lines, coastal installations, or chemical plants, our high-quality galvanized pipe fittings manufactured via the hot-dip process are the superior choice, offering decades of reliable service.

Application-Specific Choices: When to Use Black and When to Galvanize

The decision-making process is a straightforward risk assessment. One must ask: what is the nature of the external environment and the internal fluid? Galvanized malleable iron pipe fittings are the default choice for potable water lines, as the zinc coating prevents the iron from rusting and contaminating the water supply. They are also essential for compressed air lines where moisture is present, outdoor piping, drainage systems, and any installation exposed to weather, high humidity, or corrosive chemicals. The zinc layer provides a robust barrier, ensuring the structural integrity of the fitting is not compromised by rust over time. Conversely, one should never use galvanized fittings for natural gas or propane lines. The zinc coating can flake off over time and clog the small orifices found in gas regulators and appliance control valves, leading to malfunction or hazardous conditions. For these applications, explore our range of black pipe fittings, as their simple protective coating does not pose a risk of flaking. Black fittings are also the standard for hydronic heating and oil conveyance, where the fluid itself is non-corrosive and protects the interior of the fitting, while the exterior is in a controlled, dry environment. The correct choice is therefore dictated by a rational analysis of the functional demands of the system, ensuring both safety and longevity.

5. A Tour Through the Malleable Pipe Fittings Catalog: Form and Function

The true power of a malleable iron pipe fitting system lies not in a single component, but in the vast and versatile vocabulary of shapes and functions available to the designer and installer. This vocabulary is laid out in the malleable pipe fittings catalog, a document that showcases an array of components, each designed to solve a specific geometric or functional problem in the conveyance of fluids. To browse such a catalog is to witness a grammar of construction, where elbows turn corners, tees create branches, and unions allow for disassembly. Each piece, from the smallest nipple to the largest flange, has a role to play in the creation of a coherent and robust whole. Understanding the purpose of these fundamental components is akin to learning the basic words of a language; it is the first step toward being able to construct complex, elegant, and effective sentences in the form of piping systems. This catalog is more than a list of products; it is a toolkit for shaping the flow of essential resources through our homes, cities, and industries.

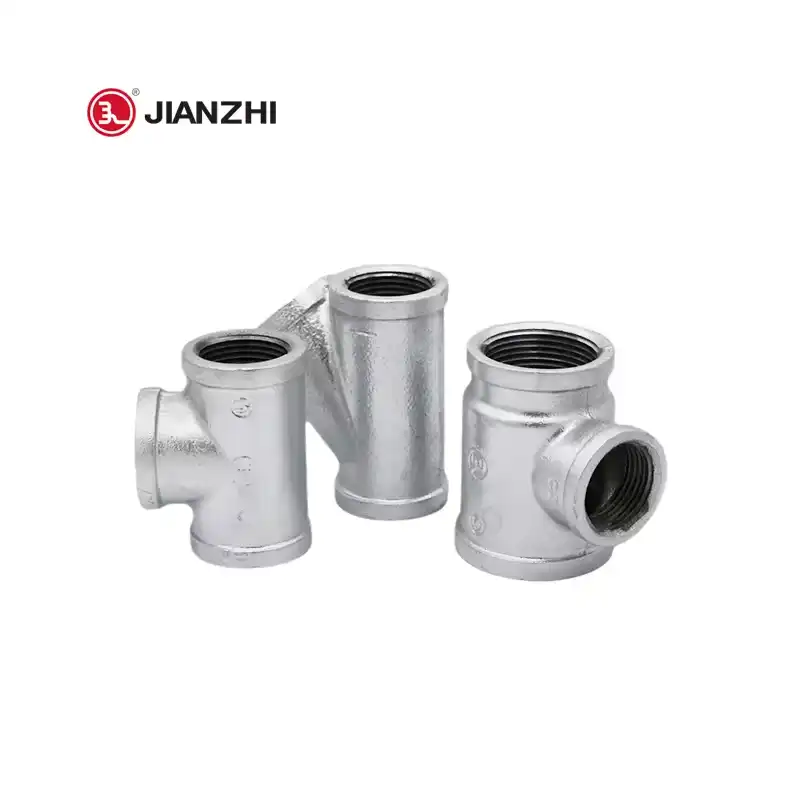

The Cornerstones: Elbows and Tees

At the heart of any piping layout are the components that direct flow: elbows and tees. The elbow is the most fundamental directional fitting, designed to change the path of a pipe run. The most common form is the 90-degree elbow, which executes a sharp right-angle turn, essential for navigating around obstacles or transitioning from a horizontal to a vertical run. Also common is the 45-degree elbow, which provides a more gradual change in direction, often used to create offsets or gentle bends in a pipeline. Street elbows are a clever variation, featuring a female thread on one end and a male thread on the other, allowing a close-coupled connection to another fitting without the need for a short piece of pipe (a nipple). The tee fitting is equally fundamental, providing a means to create a branch from a main line. A standard tee has three openings of the same size in a ‘T’ shape, allowing a 90-degree branch to be taken from a straight run. A reducing tee serves a similar purpose but with a smaller branch opening, enabling the new line to be of a smaller pipe diameter without requiring an additional reducer fitting. Together, elbows and tees form the primary navigational tools for routing pipes through the complex three-dimensional spaces of a building or industrial plant.

The Connectors: Sockets, Unions, and Nipples

While elbows and tees direct flow, another class of fittings is dedicated to the task of joining pipes together or extending them. The most basic of these is the socket or coupling, a short, cylindrical fitting with female threads at both ends, used to connect two male-threaded pipes in a straight line. A reducer, or reducer coupling, performs the same function but for pipes of two different sizes, featuring a larger female thread on one end and a smaller one on the other. Nipples are short lengths of pipe with male threads on both ends, used to connect two female-threaded fittings. Perhaps the most ingenious of the connectors is the union. A standard piping system, once assembled, is permanent. To replace a component in the middle of a run would require cutting the pipe. The union solves this problem. It consists of three parts: two ends that thread onto the pipes to be joined, and a central nut that draws the two ends together. By simply loosening the nut, the pipeline can be separated at the union, allowing for easy maintenance, repair, or replacement of valves, pumps, or other equipment without disturbing the rest of the system. The union provides a point of deliberate disassembly, a crucial feature for the long-term serviceability of any complex piping network.

The Controllers: Reducers, Plugs, and Caps

A third category of fittings is concerned with controlling or terminating flow. We have already encountered the reducer in its coupling form, but bushings also serve this purpose. A reducer bushing is a fitting with a male thread on the outside and a smaller female thread on the inside, designed to be screwed into a larger female fitting to reduce the connection size. Terminating a pipe run is the job of caps and plugs. A cap is a female-threaded fitting that screws onto the end of a male-threaded pipe, sealing it off. Conversely, a plug is a male-threaded fitting that screws into a female-threaded fitting, such as an unused port on a tee, to close it. These components are essential for creating dead ends in a system, for future expansion points, or for pressure testing a newly installed pipeline. They are the full stops and commas in the language of piping, allowing for controlled termination and pausing of the flow.

The Foundation: Malleable Iron Floor Flanges

Finally, there is the floor flange, a fitting that bridges the world of piping with the world of structures. A floor flange has a female-threaded hub in the center, designed to accept a pipe, and a flat, circular base with holes for screws or bolts. Its primary function is to securely anchor a pipe to a floor, wall, or ceiling, providing rigid support and stability. This is critical for vertical pipe runs, for securing railings, or for any application where the pipe itself is part of a structural assembly. In the realm of industrial-style furniture and decor, the malleable iron floor flange has become an iconic component, serving as the feet for tables, the base for lamps, and the mounting points for shelving units. Its robust, utilitarian form provides both a strong mechanical connection and a powerful aesthetic statement. Exploring our comprehensive malleable pipe fittings catalog reveals the full potential of these components, offering a palette of solutions for an almost infinite variety of structural and fluid-handling challenges.

6. The Broader Context: Applications Across Industries and DIY Projects

The true measure of a technology’s worth is the breadth and depth of its application. Malleable iron pipe fittings, by this standard, are an unqualified success. Their unique combination of strength, ductility, pressure resistance, and affordability has secured their place as a workhorse component across a vast spectrum of human endeavors. From the life-saving arteries of fire protection systems in skyscrapers to the humble gas lines that heat our homes, these fittings perform their duties silently and reliably. Their utility is a testament to a design that has been perfected over more than a century, meeting the demands of high-stakes industrial applications while also being accessible enough for creative personal projects. The story of malleable iron fittings is not confined to factories and construction sites; it extends into our public spaces, our homes, and even our artistic expressions, demonstrating a remarkable versatility that few other industrial components can claim.

Industrial Plumbing and Fire Protection Systems

In the demanding world of industrial plumbing, reliability is paramount. Factories, processing plants, and power generation facilities rely on extensive networks of pipes to transport water, compressed air, chemicals, and steam. In these settings, malleable iron pipe fittings are prized for their ability to withstand the rigors of an industrial environment. Their mechanical strength resists the vibrations from heavy machinery, and their pressure ratings are sufficient for most utility and process fluid applications. However, their most critical role is arguably in fire protection systems. According to the National Fire Protection Association (NFPA) 13 standard, which governs the installation of sprinkler systems, threaded malleable iron fittings are a standard and approved component. In these systems, which must remain dormant for years but function perfectly in an emergency, the long-term reliability of every joint is a matter of life and death. The fittings connect the network of pipes that hold water under pressure, ready to be released onto a fire at a moment’s notice. Their proven durability and adherence to strict manufacturing standards like ASTM A197 make them a trusted choice for fire protection engineers worldwide.

Gas and Oil Distribution Networks

The conveyance of flammable materials like natural gas, propane, and heating oil demands the highest level of safety and leak integrity. In low-pressure residential and commercial gas distribution, black malleable iron pipe fittings are the industry standard. Their strength provides security against mechanical damage, and when properly installed with the correct thread sealant, they form exceptionally reliable, gas-tight joints. The threaded nature of the system allows for meticulous assembly and pressure testing to ensure there are no leaks before the system is put into service. Similarly, in fuel oil systems that connect storage tanks to furnaces and boilers, the chemical compatibility and robustness of black iron fittings make them the ideal choice. The use of galvanized fittings is strictly avoided in these applications, as the zinc coating can react with compounds in the fuel or flake off, posing a risk to downstream equipment. The widespread use of malleable iron in these critical fuel systems underscores the deep trust that engineers and regulatory bodies place in the material’s ability to safely contain and transport energy resources.

The Rise of Industrial-Chic: Malleable Fittings in Furniture and Decor

Beyond their traditional industrial roles, malleable iron pipe fittings have undergone a remarkable cultural transformation. In the last decade, they have become the signature component of the “industrial chic” or “steampunk” design aesthetic. Artisans, DIY enthusiasts, and furniture designers have embraced the raw, utilitarian beauty of these fittings, repurposing them to create a wide range of objects for the home and commercial spaces. The inherent modularity of the system—the combination of pipes, elbows, tees, and flanges—lends itself perfectly to creative construction. Black malleable iron floor flanges become the sturdy feet of coffee tables, tees and elbows form the intricate skeletons of shelving units, and an assembly of pipes and sockets can be transformed into a unique table lamp or a curtain rod. This trend celebrates the form and honesty of the material. It takes a component designed for purely functional, often hidden, applications and places it on display, appreciating its texture, its weight, and its history of hard work. This aesthetic movement has introduced a whole new generation to the versatility of malleable iron, demonstrating that robust engineering and compelling design are not mutually exclusive pursuits.

7. Ensuring Longevity and Safety: Best Practices for Installation and Maintenance

The inherent quality of a malleable iron pipe fitting, guaranteed by adherence to standards like ASTM and EN, is only the first part of the equation for a successful system. The ultimate safety and longevity of a pipeline depend critically on the skill and diligence of the installer. The process of assembling threaded pipe is a craft that requires knowledge, the correct tools, and a feel for the material. A properly assembled joint will last for decades, providing leak-free service, while a poorly assembled one can fail prematurely, leading to costly and dangerous consequences. Furthermore, for professional and industrial systems, installation is not the end of the story. A program of regular inspection and maintenance is a necessary commitment to ensuring the system continues to operate safely and efficiently throughout its intended service life. The principles of good practice are therefore essential knowledge for both the professional plumber and the dedicated DIYer.

The Right Tools for the Job: Wrenches and Sealants

Successful installation begins with the right equipment. The primary tool for assembling threaded pipe is the pipe wrench. Unlike a standard wrench, a pipe wrench has serrated jaws designed to grip the round surface of a pipe, and its design cleverly tightens its grip as more force is applied. It is crucial to use two wrenches: one to hold the pipe or existing fitting stationary (the “backup” wrench) and one to turn the fitting being installed. This prevents stress from being transmitted down the line, which could loosen previously tightened joints. The condition of the threads is also paramount. They should be clean and free of dirt, debris, or damage before assembly. The choice of thread sealant is equally important. For NPT and BSPT threads, a sealant is not optional. For water lines, a high-quality PTFE (Teflon) tape is common. The tape should be wrapped clockwise (for right-hand threads) on the male threads, typically 2-3 wraps, ensuring it does not overhang the end of the pipe where it could break off and enter the system. For gas lines, a liquid or paste sealant specifically rated for gas is the required choice. These pastes fill the threads more completely and are formulated to resist the chemical makeup of natural gas or propane. Using the wrong sealant or applying it incorrectly is a common source of leaks.

The Nuances of Tightening: Achieving a Seal Without Over-Torquing

The most subtle skill in pipe fitting is knowing how tight is “tight enough.” The goal is to achieve a leak-proof seal without over-stressing the fitting or pipe. For tapered threads like NPT, a common rule of thumb is “hand-tight plus one to two turns” with a wrench. The fitting should be threaded on by hand until it is snug. Then, the wrench is used to apply one or two full rotations. The resistance will increase noticeably as the threads wedge together. At this point, the joint is typically sealed. The temptation to continue tightening in an attempt to make the joint “extra safe” is counterproductive and dangerous. Over-torquing can stretch the female threads or even crack the fitting, especially at the point where the material is thinnest. A cracked fitting may not be immediately apparent and can fail later under pressure or vibration. It takes experience to develop a feel for the proper torque, but following the hand-tight-plus-turns guideline is a safe starting point for preventing damage. After assembly, all professional installations should be pressure tested (often with air for safety) to verify the integrity of every joint before the system is put into service.

Inspection and Maintenance Regimens for Professional Systems

For industrial, commercial, and fire protection systems, the responsibility for the pipeline continues long after the installation crew has left. A formal inspection and maintenance program is a critical component of asset management and safety compliance. Inspections should be conducted regularly, with the frequency determined by the nature of the service, the age of the system, and regulatory requirements. Visual inspections should look for any signs of external corrosion, particularly at the points where pipes and fittings are in contact with hangers or supports, as these areas can trap moisture. Any signs of weeping or slow leaks at threaded joints should be addressed immediately. For critical systems, non-destructive testing methods like ultrasonic thickness measurement can be used to monitor for internal corrosion or erosion over time without having to disassemble the system. Any components showing significant corrosion or damage should be replaced. The use of unions at strategic points in the original design greatly simplifies this maintenance process. This proactive approach ensures that the piping system remains a reliable and safe asset for its entire design life, fulfilling the promise of durability inherent in the malleable iron fittings from which it is constructed.

Frequently Asked Questions

What is the main difference between malleable iron and cast iron fittings? The primary difference lies in their mechanical properties, which stem from their microstructure. Standard grey cast iron is brittle because its carbon exists as sharp graphite flakes, which create internal stress points and allow cracks to propagate easily. Malleable iron, on the other hand, starts as brittle white cast iron but undergoes a lengthy heat-treatment process (annealing). This process transforms the carbon into rounded nodules (temper carbon) within a ductile iron matrix. This nodular structure inhibits crack propagation, making malleable iron tough, ductile, and able to withstand shock and vibration much better than standard cast iron. Essentially, malleable iron can bend or deform slightly under stress, while cast iron is more likely to fracture. Can malleable iron pipe fittings be used for potable water? Yes, but only if they are properly coated. Standard black malleable iron fittings are not suitable for potable (drinking) water because the bare iron will rust, discoloring the water and potentially affecting its taste and quality. For potable water applications, you must use galvanized malleable iron pipe fittings. The hot-dip zinc coating on these fittings creates a protective barrier that prevents the iron from coming into contact with the water, thus preventing rust and ensuring the water remains safe and clean. Always check local plumbing codes to ensure compliance. What is the pressure rating for typical malleable iron fittings? Pressure ratings for malleable iron pipe fittings depend on the class of the fitting and the operating temperature. The most common fittings are Class 150 and Class 300. According to the ASME B16.3 standard, Class 150 fittings are typically rated for a maximum working pressure of 300 psi at ambient temperatures (from -20°F to 150°F). Class 300 fittings are rated for higher pressures, often up to 2000 psi for smaller sizes at ambient temperatures, though this rating decreases as temperature increases. It is absolutely essential to consult the manufacturer’s specifications and relevant standards (like ASME B16.3 or EN 10242) for precise pressure-temperature ratings for the specific fitting being used in an application. Can you weld malleable iron pipe fittings? Welding malleable iron is generally not recommended and can be very difficult. The heat from welding can disrupt the carefully created microstructure that gives the iron its malleable properties. Specifically, it can cause the graphite nodules to dissolve back into the iron matrix, and upon cooling, brittle iron carbides can reform in the heat-affected zone, making the area around the weld extremely brittle and prone to cracking. While certain types of malleable iron (like some Whiteheart grades) are more weldable than others, it requires specialized procedures, pre-heating, post-heating, and specific filler materials. For almost all standard plumbing and piping applications, the intended method of joining is via their threaded connections, not welding. How do environmental factors like temperature affect malleable iron fittings? Malleable iron performs very well across a wide range of temperatures. For cold environments, standard malleable iron retains its toughness and is suitable for service down to -29°C (-20°F), making it appropriate for most refrigeration and outdoor applications. At elevated temperatures, the strength of the iron begins to decrease. For example, a Class 150 fitting rated for 300 psi at ambient temperature might see its rating drop to 150 psi at 450°F (232°C). High temperatures can also accelerate corrosion, especially in the presence of moisture. Extreme cold below its rated temperature can cause the iron to become more brittle (a phenomenon known as ductile-to-brittle transition), increasing the risk of fracture under impact. Therefore, it is vital to operate within the pressure-temperature ratings specified by the manufacturer and relevant standards.

References

1. American Society of Mechanical Engineers. (2021). ASME B16.3 – Malleable Iron Threaded Fittings: Classes 150 and 300. ASME. https://www.asme.org/codes-standards/find-codes-standards/b16-3-malleable-iron-threaded-fittings
2. American Society for Testing and Materials. (2018). ASTM A197 / A197M-00(2018) – Standard Specification for Cupola Malleable Iron. ASTM International. https://www.astm.org/a0197a0197m-00r18.html
3. British Standards Institution. (2023). BS EN 10242:2023 – Threaded pipe fittings in malleable cast iron. BSI Group. https://knowledge.bsigroup.com/products/threaded-pipe-fittings-in-malleable-cast-iron-1/standard
4. Callister, W. D., & Rethwisch, D. G. (2018). Materials Science and Engineering: An Introduction (10th ed.). Wiley.
5. China Foundry Association. (n.d.). Association Profile. http://www.foundry.com.cn/
6. International Organization for Standardization. (2023). ISO 7-1:1994 – Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances and designation. ISO. https://www.iso.org/standard/362.html
7. Jianzhi Pipe Fittings. (2025). Products. Jianzhi Group. https://www.jianzhipipefitting.com/products/
8. National Fire Protection Association. (2022). NFPA 13 – Standard for the Installation of Sprinkler Systems. NFPA. https://www.nfpa.org/codes-and-standards/all-codes-and-standards/list-of-codes-and-standards/detail?code=13
9. Parker Hannifin Corporation. (n.d.). Thread Identification Guide. Parker Tube Fittings Division. https://www.parker.com/literature/Tube%20Fittings%20Division/ThreadIDGuide4400-T01-US.pdf
10. American Galvanizers Association. (n.d.). Hot-Dip Galvanizing for Corrosion Protection. AGA. https://galvanizeit.org/corrosion/is-galvanizing-reliable
