What Is Black Cast Iron And The Advantages Of Black Cast Iron Fittings?

by | May 31, 2024 | Industry Knowledge

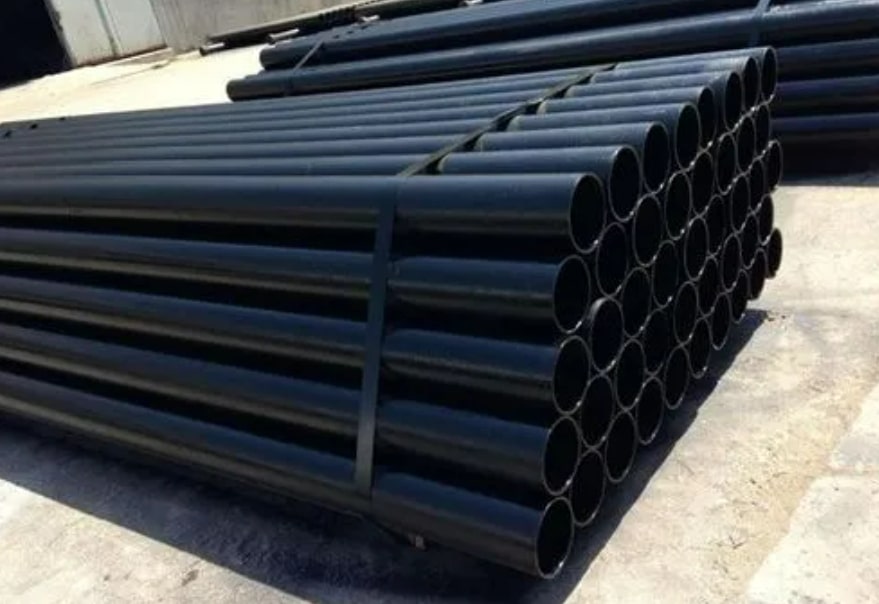

Welding black iron is a high-strength cast iron material developed in the 1950s. It ‘s procession through spheroidization and inoculation to make graphite exist in spherical form. Improved the mechanical properties of cast iron, especially plasticity and toughness.We produce welding black iron pipe. Black Cast Iron Fittings have good performance.

Differences between black cast iron fitting and ordinary one:

1.First, let’s look at the ingredients. Black cast iron contains graphite and an iron matrix, while regular cast iron has a different composition. White cast iron contains higher carbon and silicon, with high hardness and brittleness. Black cast iron usually contains 2-4% carbon and 1-3% silicon. The graphite particles are evenly distributed to prevent the formation of hot cracks.

2.Secondly, in terms of characteristics. Black cast iron has good toughness and compressive strength, and is corrosion-resistant.

Although ordinary cast iron, especially white cast iron, has high hardness, it is brittle and has low compressive strength.

3.Furthermore, the fields of application are different. Black cast iron has good toughness and compressive strength, making it suitable for manufacturing parts that need to withstand greater pressure and bending, such as pipe parts.

Ordinary cast iron is widely used in machinery, automobiles, engineering, construction and other fields because of its high strength, high rigidity and wear resistance.

In short, black cast iron offers the following advantages:

Graphite form: The splitting effect of the metal matrix is reduced, expansion is formed when the casting solidifies, the shrinkage of the casting volume is reduced, and the internal stress in the casting is reduced.

Physical properties: The brittle cutting caused by graphite creates excellent cutting performance.

It has good lubrication effect and can store lubricating oil, so that the castings have good wear resistance.

Chemical properties: Ductile iron has lower impurity content than pig iron. Specific elements added, such as magnesium and lead, enhance the material’s antioxidant capacity.

Mechanical properties: Ductile iron has excellent mechanical properties, especially its key indicators such as tensile strength, elongation, and yield strength. This is due to the fact that spherical graphite has less weakening effect on the metal matrix cross section, making the matrix relatively continuous, and the matrix strength utilization rate can reach 70% to 90%.

In general, black cast iron and ordinary cast iron each have their own unique composition, characteristics and application areas. Their respective advantages allow them to perform well in different situations. When selecting for use, the most appropriate type of cast iron needs to be determined based on specific engineering needs and environmental conditions.

Black Cast Iron Fittings

Common types of black iron pipe fittings include:

Black Cast Iron Fittings are made of black cast iron material, so they have the characteristics of cast iron, such as higher strength and corrosion resistance, and can withstand a certain amount of pressure and weight.

Elbow: used to change the flow direction of the pipe. Common angles are 45 degrees, 90 degrees and 180 degrees.

Tee: Used to divide or merge flows in the pipeline system. There are equal-diameter tees and reducing tees.

Flange: A component that connects the ends of two pipes and keeps the pipes removable to facilitate the installation, disassembly and maintenance of the pipes.

Joint: used to connect two pipes to ensure the continuity and sealing of the pipeline system.

Plug: Used to seal the end of a pipe to prevent leakage of liquid or gas.

When selecting and using black iron pipe accessories, you need to consider the following factors:

Material: Ensure that black iron pipe welding material of the accessory meets engineering requirements and can withstand the expected pressure and temperature.

Size: Choose appropriate fittings based on the size of your duct system to ensure tight, leak-free connections.We supply 2 Inch Black Iron Pipe Fittings and 1 Inch Black Iron Pipe Fittings for you to choose.

Standards and specifications: Comply with national and industry standards and select accessories that meet specifications to ensure the safety and reliability of the system.

Installation and maintenance: Follow correct installation steps and maintenance methods to ensure normal operation and extended service life of accessories.

In addition, with the continuous advancement of technology, the design and manufacturing process of black iron pipe accessories are also constantly optimized. Our new black iron pipe fittings use more advanced production processes and materials to improve their performance and durability. Is your best choice.
