Jianzhi, a China npt fitting supplier, continues to lead the industry with high quality, precise fittings that meet international standards. With a diverse range of fitting sizes, Jianzhi aims to support industries worldwide in ensuring reliable and safe pipe connections for various applications, from oil and gas to water treatment and construction.

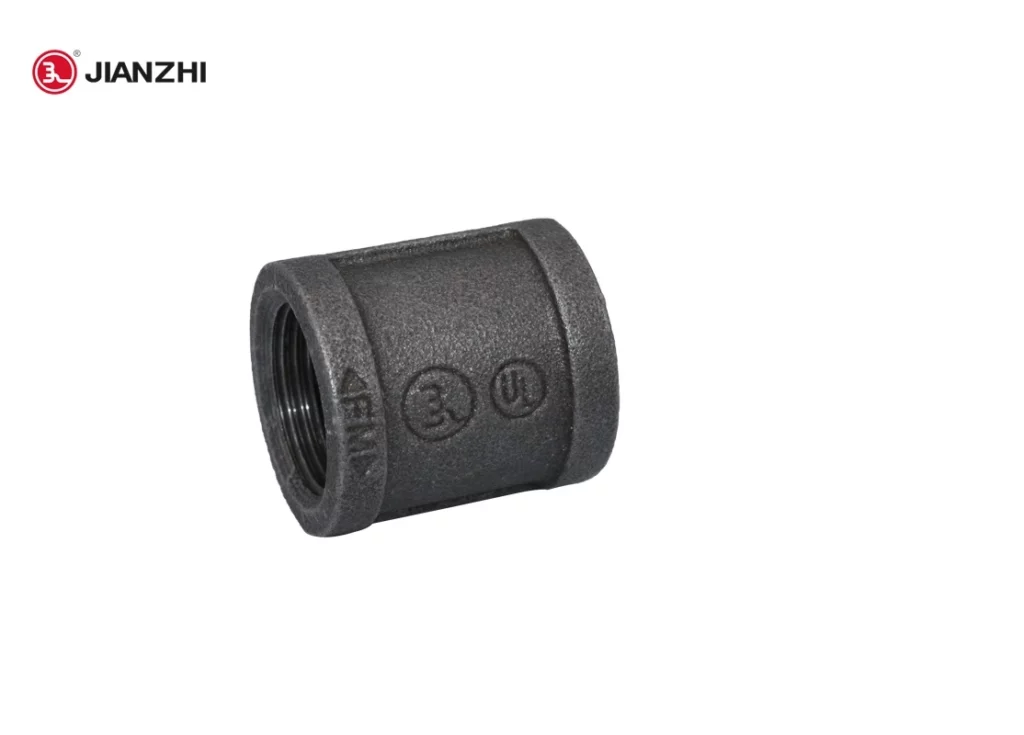

NPT thread fittings, known for their tapered design that creates a tight, leak-proof seal, are essential in many industrial settings. The most common NPT thread fitting sizes supplied by Jianzhi range from 1/8 inch to 2 inches, accommodating a variety of pipe diameters and ensuring seamless integration in both standard and complex piping systems. Some of the standard sizes offered include:
1/8” NPT – Ideal for smaller applications such as gas and pneumatic systems.
1/4” NPT – Commonly used for air and liquid flow in industrial machinery.
3/8” NPT – Versatile for HVAC systems and small pipelines.
1/2” NPT – Popular for general plumbing and irrigation applications.
3/4” to 2” NPT – Designed for larger scale projects, including water and gas distribution systems.
What standard define the exact dimensions and tolerances for NPT threads?
The exact NPT thread dimensions and tolerances are primarily defined by the ANSI/ASME B1.20.1 standard. This standard specifies the thread form, pitch, taper angle, and diameter tolerances required for NPT threads used in the United States. Here’s an overview of key standards governing NPT threads:
ANSI/ASME B1.20.1 (Pipe Threads, General Purpose)
This standard provides specifications for general-purpose NPT for sizes ranging from 1/16 inch to 24 inches. It includes detailed guidelines on pitch diameter, taper (typically 1 in 16), and thread depth, along with tolerances for both male (external) and female (internal) threads.
ANSI/ASME B1.20.3 (Dryseal Pipe Threads)
The B1.20.3 standard outlines the specifications for NPTF (National Pipe Taper Fuel) threads, which are similar to NPT but provide a tighter seal without the need for additional sealants. These threads are often used in fuel, hydraulic, and air systems where leakage is not acceptable.
ISO 7-1 / ISO 228 (International Standards for Pipe Threads)
For international applications, ISO standards may be used. While they define similar specifications to NPT, ISO standards typically specify BSP (British Standard Pipe) threads, which differ in thread angle and taper. ISO 7-1 includes specifications for tapered threads, while ISO 228 includes parallel threads.
Why is it important to account for the taper in NPT threads during installation?
Accounting for the taper in NPT (National Pipe Taper) threads during installation is essential because the taper directly impacts the seal quality, leak prevention, and structural integrity of the connection. Here are several reasons why considering the taper is crucial:
Ensures a Tight, Leak-Proof Seal
NPT threads have a 1:16 taper, meaning the diameter gradually increases along the length of the thread. As the male and female threads are tightened, this taper causes the threads to compress against each other, creating a wedge-like effect that forms a tight seal. Ignoring the taper can lead to incomplete sealing, resulting in potential leaks.
Controls Depth of Engagement
The taper dictates how deeply the threads engage before reaching maximum torque. Properly accounting for the taper prevents over-tightening, which can strip the threads or even crack the fitting, especially in softer materials like brass or PVC. Under-tightening, on the other hand, results in a loose connection that cannot withstand pressure.
Facilitates Consistent Thread Engagement Across Sizes
The taper standardizes thread engagement across different sizes, which ensures consistent assembly and prevents mismatched connections. This uniformity is especially important in applications where different NPT sizes are used, allowing for reliable pressure handling across a system.
About Jianzhi
Jianzhi is a leading supplier of NPT fittings in China, renowned for its high-quality products designed to meet international standards. With a wide range of NPT fittings in various sizes and materials, Jianzhi supports industries such as plumbing, oil and gas, construction, and water treatment worldwide. Known for its precision manufacturing and rigorous quality control, Jianzhi ensures that each fitting provides a reliable, leak-proof seal and performs well in high-pressure environments. The company’s commitment to innovation and customer satisfaction has established Jianzhi as a trusted partner for NPT fittings on the global stage.
