Industrial Applications Of Malleable Iron Fittings – 4 Way Galvanized Pipe Fittings

by | Oct 26, 2023 | Industry Application

When designing piping systems for industrial facilities, versatility is key. The system needs to withstand wide temperature fluctuations, vibrations from machinery, moisture, and various chemical exposures depending on the production process. Malleable iron fittings excel in these demanding environments due to their unique material properties and range of styles. They provide installers with flexibility during assembly while ensuring long-term reliability.

How To Produce The Malleable Iron?

Malleable iron is manufactured by heating ductile iron above its melting point to cause the carbon particles to flatten and create a spongy microstructure. This process gives the material ideal strength and flexibility. Unlike brittle cast iron or steel, malleable iron absorbs stress and vibration without cracking or failure. Its fatigue resistance means fittings won’t degrade prematurely from cyclic loading over decades of use.

The material also has thermal conductivity properties that allow it to withstand broad temperature fluctuations. Malleable iron fittings are rated from below freezing up to over 200 degrees Fahrenheit continuously. They are corrosion resistant and compatible with most industrial chemicals as well. These characteristics give malleable iron widespread application across heat transfer, steam, cooling, and chemical processes.

JIANZHI 4 Way Galvanized Pipe Fitting Supplier

Reputed Pipe Fittings supplier JIANZHI produce an extensive selection of threaded, grooved and welding neck fittings in sizes ranging from 1⁄2 inch to 6 inches. This provides installers with the ability to configure complicated multi-directional systems. A versatile fitting style that enables complex branch connections is the 4-way galvanized pipe fitting.

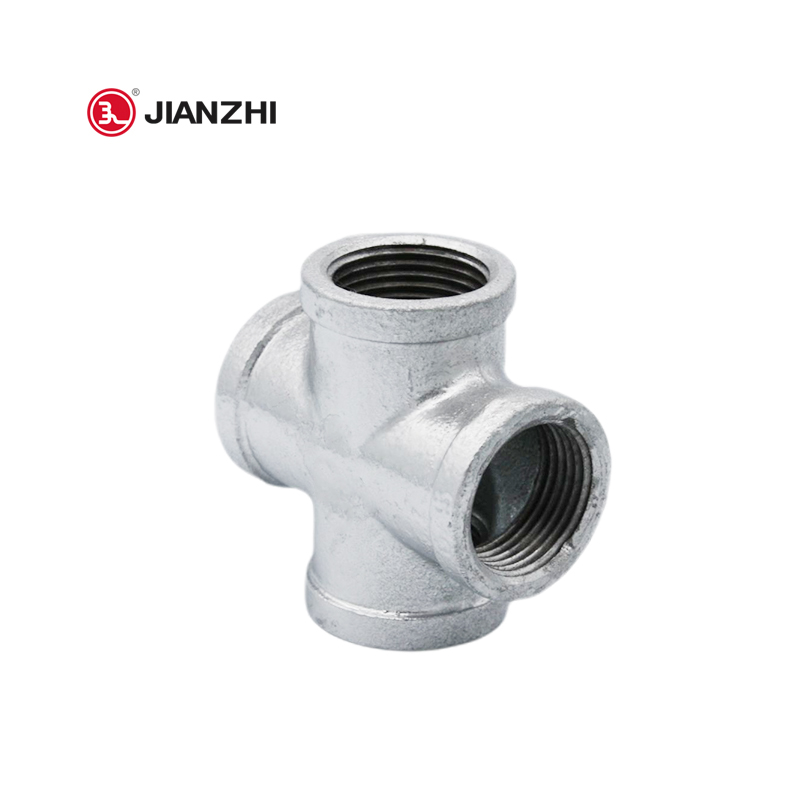

4-way galvanized pipe fittings are tee fittings with four outlet ports instead of the standard three. They allow distribution of a main line into four separate secondary lines at a 90-degree crossing. They are ideal for applications like process piping where precise splitting of flow is required into multiple downstream machines or vessel inlets.

Who Will Use 4-Way Fittings?

Numerous configurations are possible with 4-way fittings. For example, an installer can run two lines perpendicular and two lines parallel, with all four outlets at 90-degree angles. Or a straight-thru outlet can be utilized with three 90-degree branches. Galvanizing provides corrosion protection for carrying anything from water to chemicals.

Buildings materials manufacturers also offer fabricated malleable iron special fittings customized with additional taps, unique bends or dimensional requirements. This provides solutions for specialty applications or retrofits with unusual space constraints. Crane and machining services are available for large bore configurations.

With flexibility in design, material properties to handle vibration and extreme temperatures, and a wide selection of standard and special fittings, malleable iron piping systems stand up to the rigors of industrial use. Decades of real-world performance have proven malleable iron to be a smart choice across manufacturing, mining, power plants and other process industries. Versatile options like 4-way galvanized pipe fittings maximize installers’ ability to configure unique, multi-directional piping manifolds.
