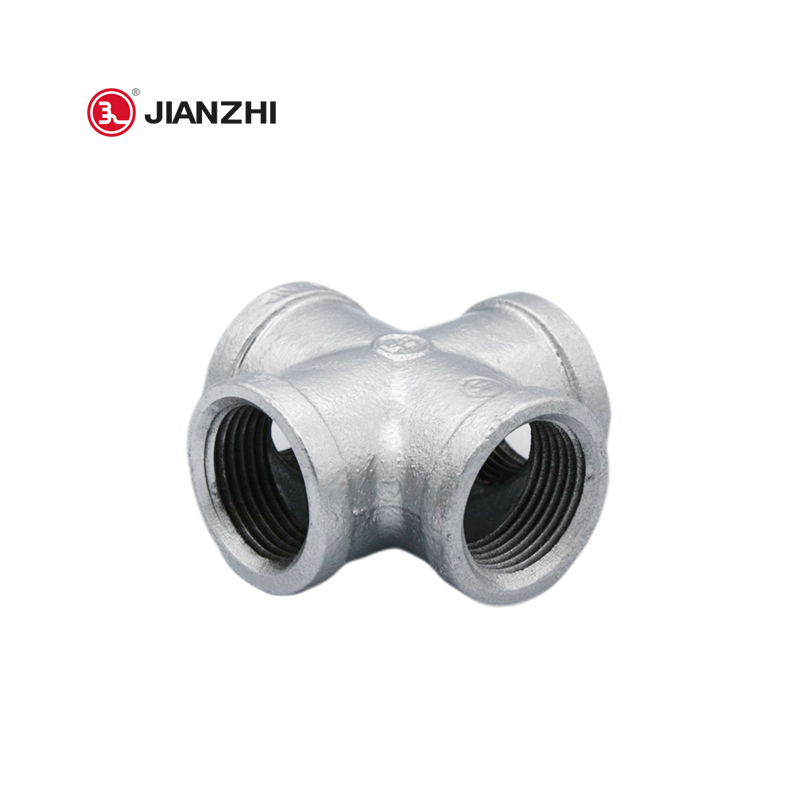

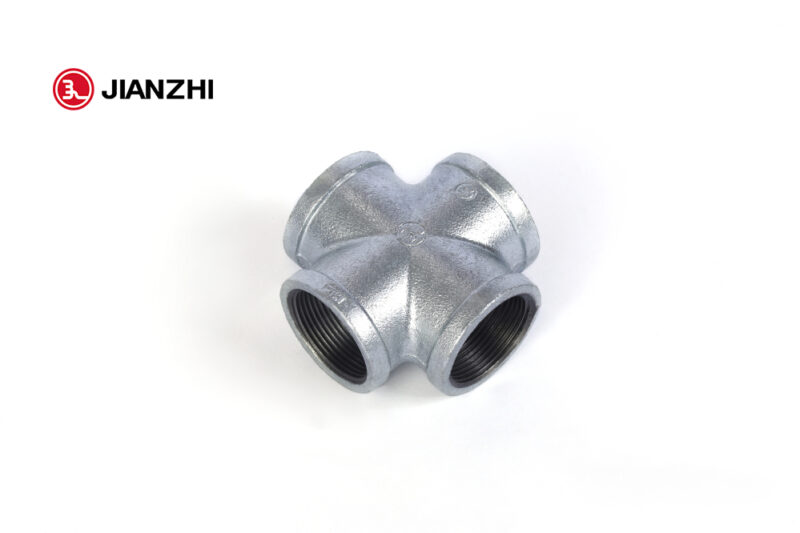

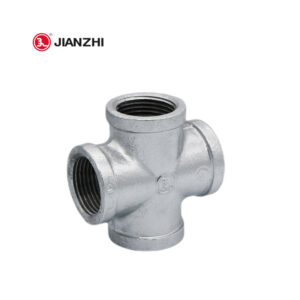

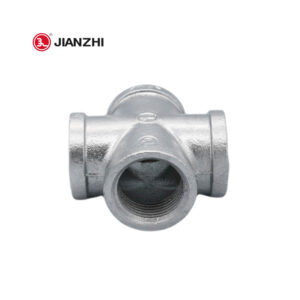

4 Way Pipe Fitting Equal Cross Fig.180

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy 4 way cross galvanized pipe fitting is made?

Contact us Now. high quality and best wholesale price.

Product Description

Do you know?
The famous Olympic Game in 2008. Most of the builds are choose Jianzhi pipe fittings.
Such as National Stadium, National Aquatics Center
And also many famous landmark buildings in China.
Like National Centre for the Performing Arts of China, Carton Tower and CITIC Tower

Product Parameters

Size:1/2”-4”(DN8-DN100)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

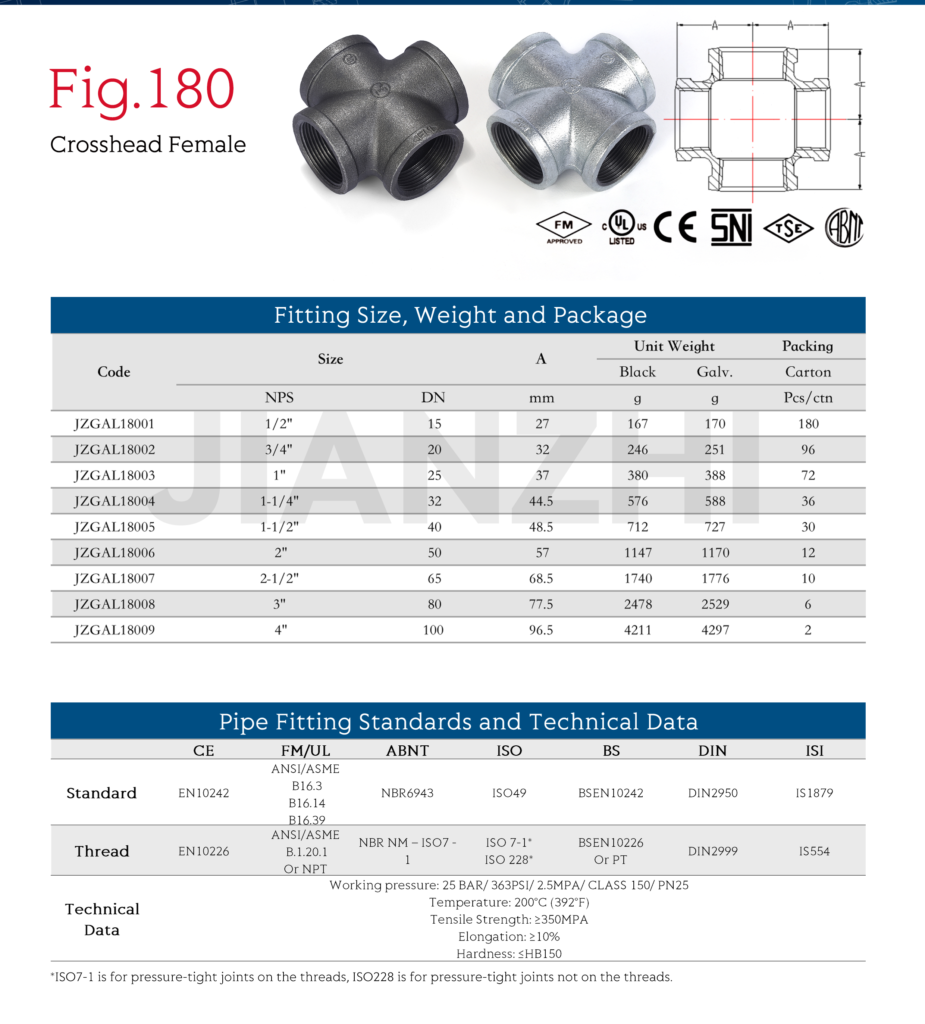

Product Dimensions

Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
