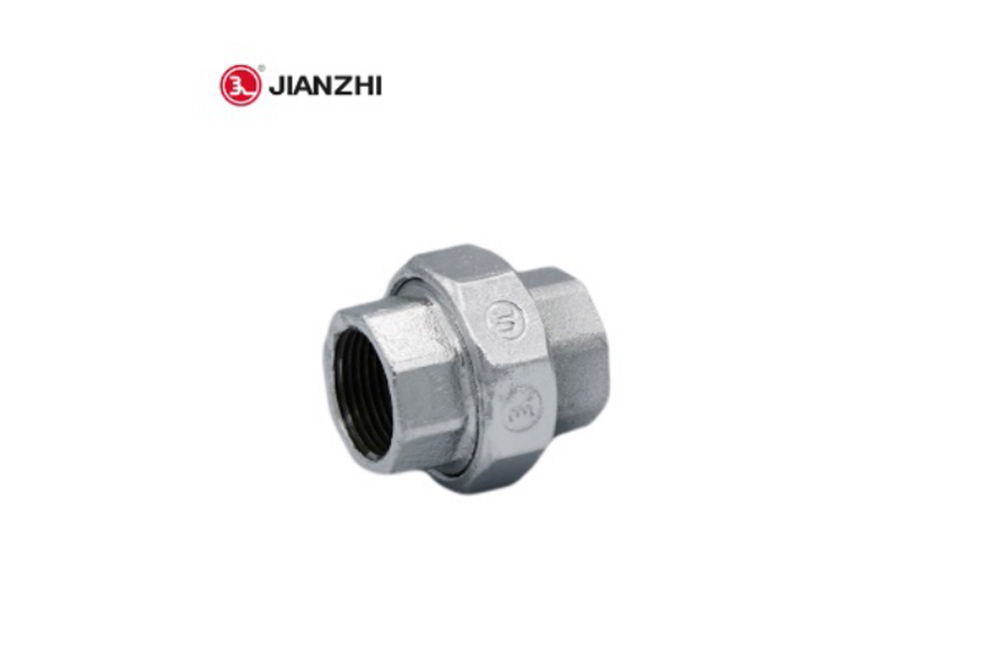

Threaded Malleable Fittings Union Brass Taper Seat Fig. 342

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

The taper union extrudes each other through the inner and outer conical inclined planes to form a sealing surface. Different from normal taper Union, brass taper Union use brass for sealing surface. It has good anti-rusty .

Size: 1/2”-2”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 12%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron

When you buy, please make sure that this key has a male interface and a female interface. The union of the cone seat guarantees a better seal and ensures that your piping system does not leak.

Brass Unions Taper Seat
