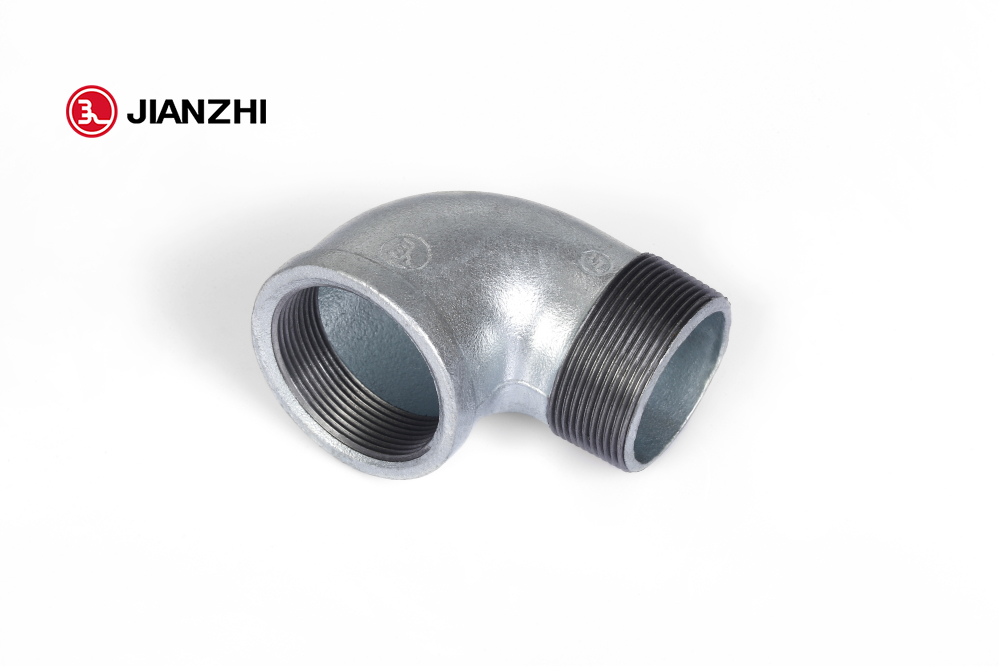

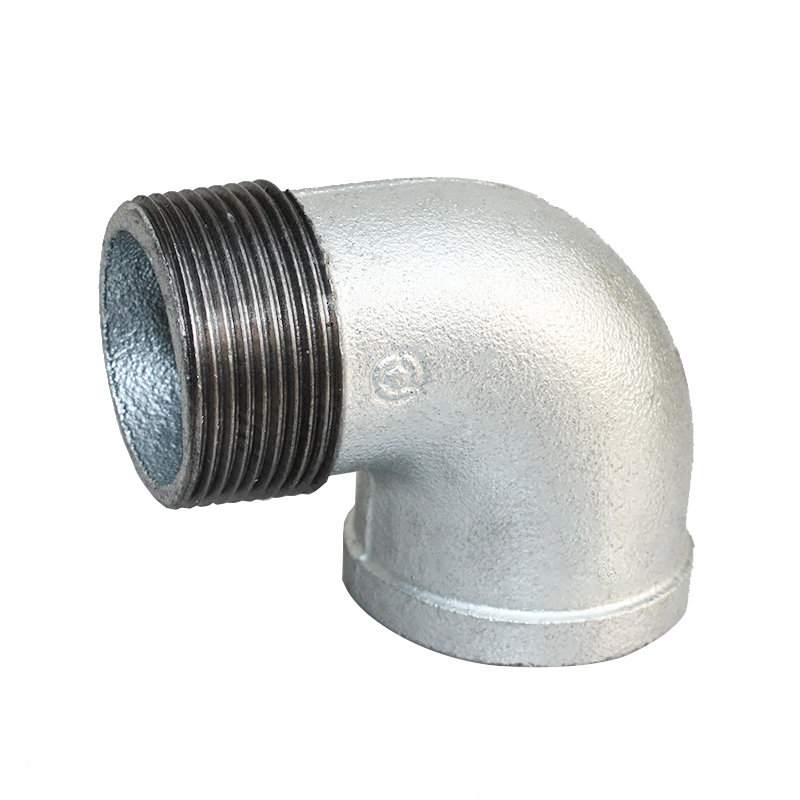

Cast Iron Fittings 90 Degree Elbow Fig.92

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Tensile strength refers to the maximum stress that a material can withstand before it breaks. It is one of the main mechanical indicators
of metal materials.JIANZHI adopts KTH330-08 black heart malleable iron as material and ensure tensile strength is no less than 330Mpa,elongation is no less than 8%. Excellent materials are the foundation of high-quality products,chooseJIANZHI, choose high quality.

Product Parameters

Size:1/4”-4”(DN8-DN100)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

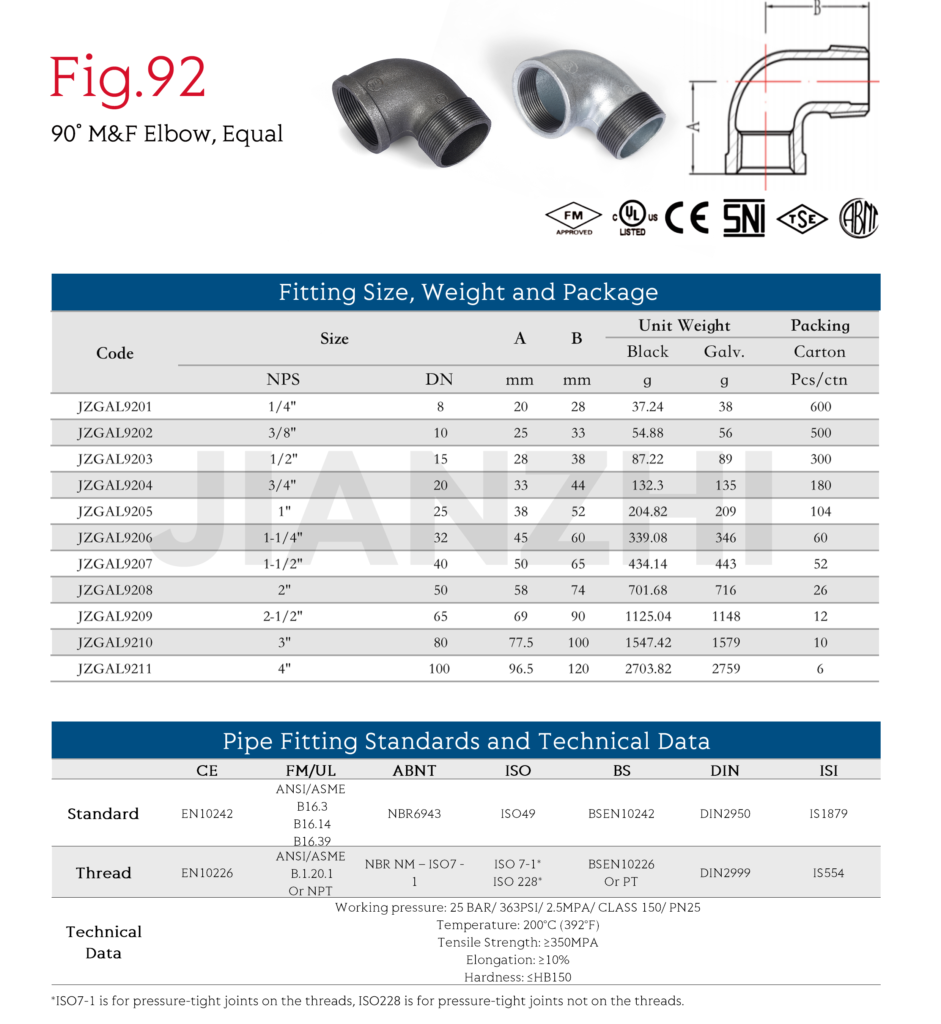

Product Dimensions



Sizein1/43/81/23/4111/411/2221/234
mm8101520253240506580100
A20252833384550586977.596.5
B283338445260657490100120



Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
