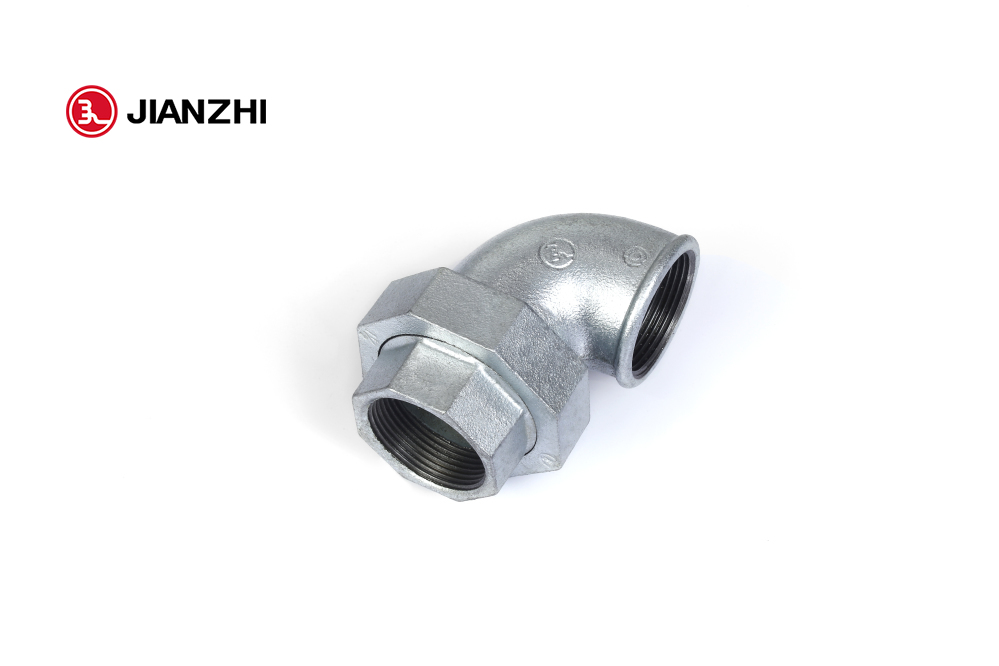

GI Pipe Union Elbows Conical Seat Fig.96

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Category: Tag:
Inquire Now

Product Description

Jianzhi Group invented “China Link Type Quality Management system”,Obtaining the ministry of agriculture “Enterprise modern management first prize”.All pipe fittings are strictly inspected at each procedure.Mutual inspection would be taken at the each production process,ring by ring, every worker will be a quality inspector. If they find unqualified products from last production process they will get awards,of course, upper process workers who let unqualified products go to next procedure will be punished.

Product Parameters

Size：1/2”-2”(DN15-DN50)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures：PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification：UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Product Dimensions



SIZEin1/23/4111/411/22
mm152025324050
A27323744.548.557
B49.55764.574.58294



Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
