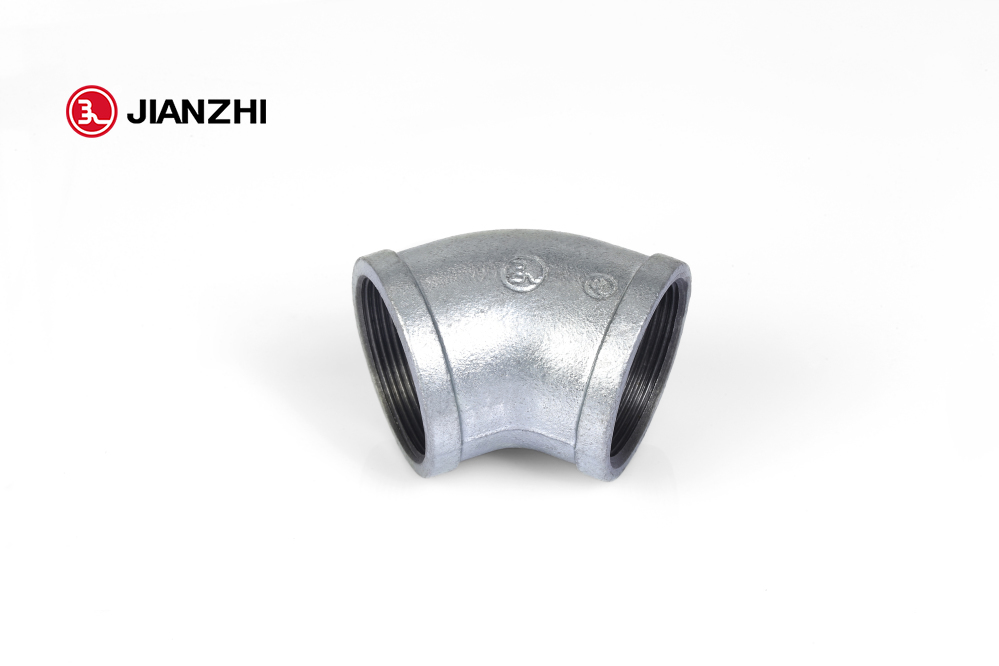

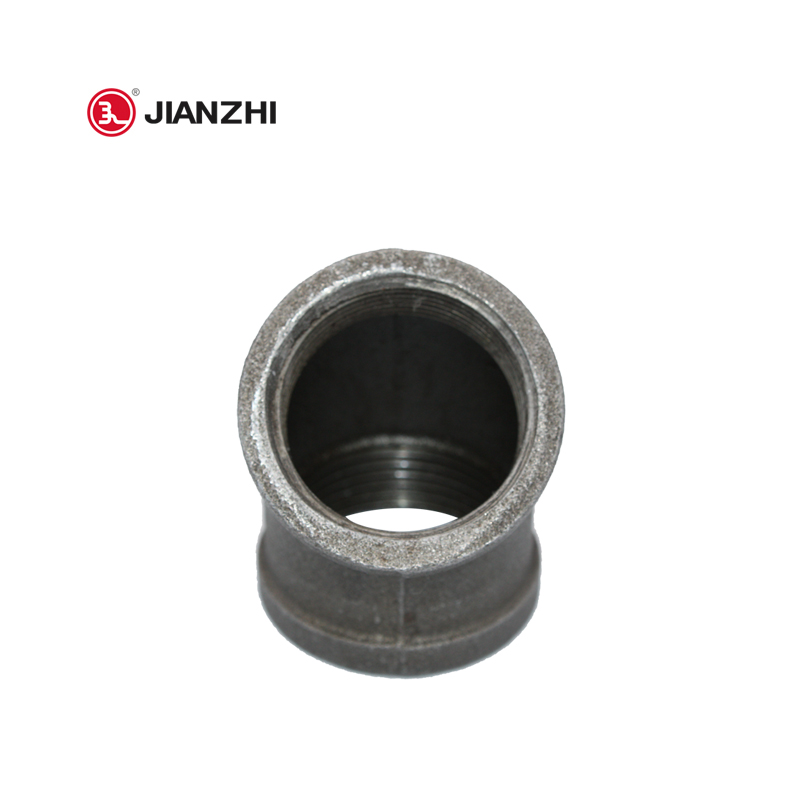

Iron Pipe Fittings 45 Degree Elbow Fig.120

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Size: 3/8”-4”(DN6-DN150)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Product Description

Corner this element is distinguishable by the presence of a corner. The part is utilized if one or more bends may be found in the system plan. Squares made of galvanized iron of the JIANZI trademark are utilized for the installation of steel piping. They change the direction from an external to an interior thread. With the assistance of a threaded connection, zinc-coated iron squares permit you to install piping of any sort, depending on the tasks.

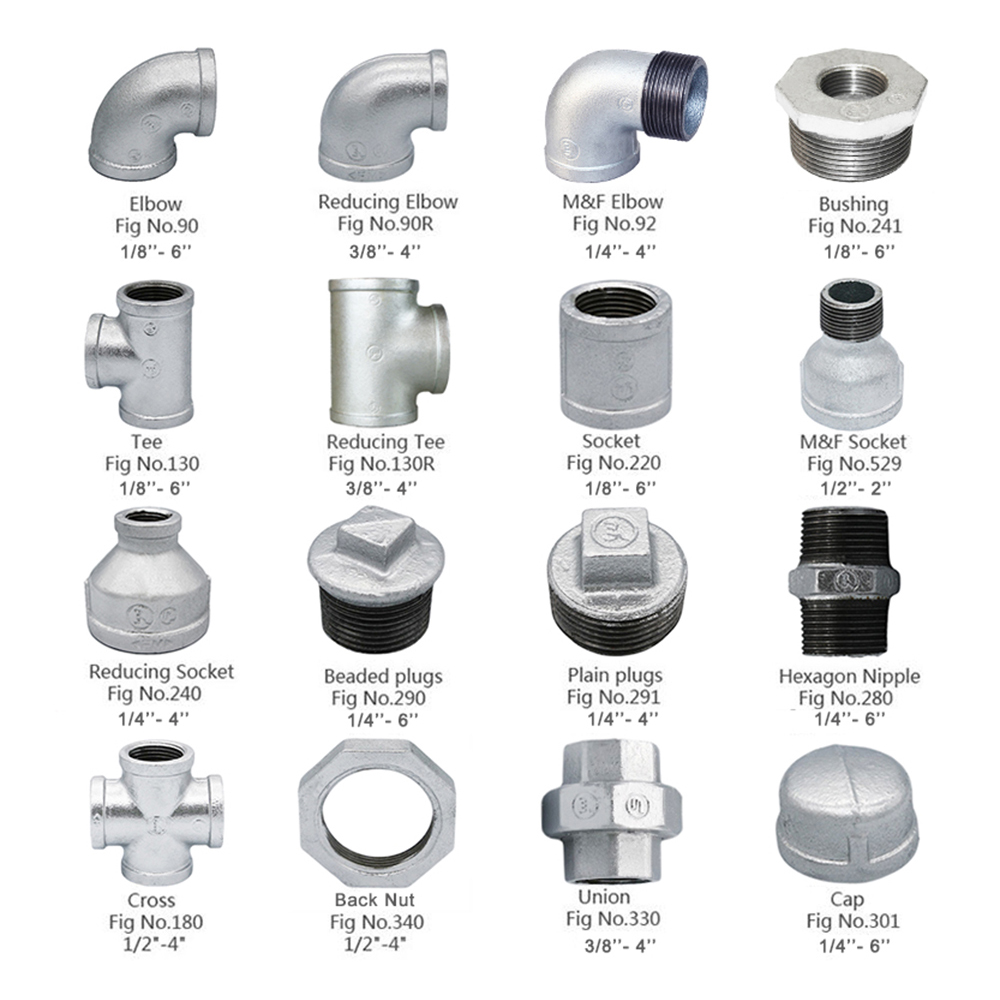

Malleable pipe fittings can be components used to join, terminate, control flow, and change the direction of tubes in many different industries. In picking out fittings, please think about their application to pick out material kind, shape, dimension and required durability. Accessories can be threaded or unthreaded.There are many shapes, types and dimensions. Please see our product specification sheet.

Jianzi provides pipe fittings and custom services. The organization was established in 1982 and is based in Tangshan City,Hebei Province, China.Obtained U.S. UL/FM and EU CEE certification.It continues to offer well in the global marketplace.Jianzi gives pipe fittings and Custom services.

The business was founded in 1982 and is based within Tangshan City,Hubei Province,China.Obtained U.E.C.E. certification.It continues to supply well in the worldwide market.Jianzi provides pipe fittings along with Custom services. The firm was established in 1982 and operates from Tangshan City, Hubei Province, China. Has obtained U.S. UL / FM and EU CE certification. Offers a wide range of malleable iron pipe fitting products.
