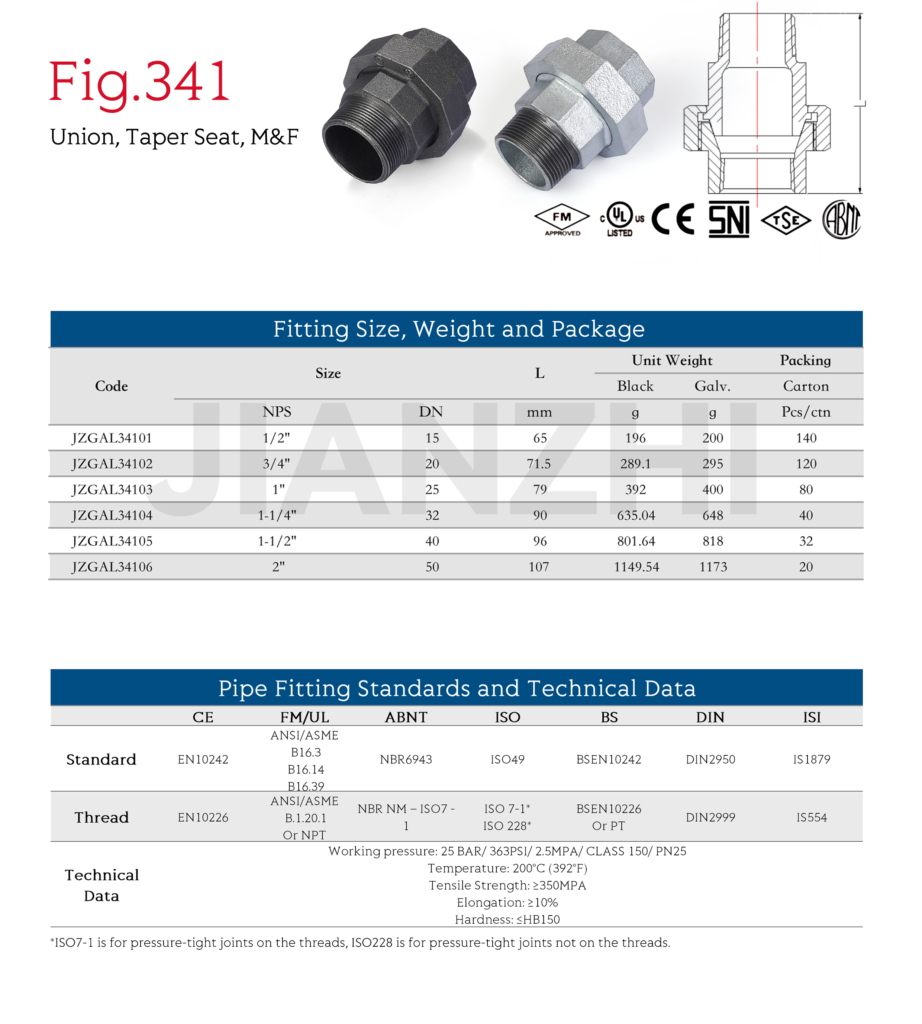

Galvanized Fittings Union Taper Seat Fig. 341
| Maximum Pressure: | 25 BAR (363PSI) (2.5MPA) CLASS 150 |
|---|---|
| Maximum Temperature: | 200°C (392°F) |
| Tensile Strength: | 350MPA |
| Suitable Applications: | Water, Oil, Gas, Petro-Chemical |
Size: 1/2”-2”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Product Description
Taper seat union with internal and external thread, has good sealing tightness , can contect the pipes with the end of external thead and other end of internal thread.
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 12%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
When you buy, please make sure that this key has a male interface and a female interface. The union of the cone seat guarantees a better seal and ensures that your piping system does not leak.
JANZHI-Malleable iron pipe fittings
EN10226 /ASMEB1.20.1/IS0228/IS07-1
Protect pipe fittings from injury during connection
disrupting their original performance
please contact our staff
0.6MPa
20%
standard
0.5MPa
±0.3°
40%
standard
+0.5°
363MPa
10%
standard
330MPa
12%
33%
standard
8%
100% individuoltesting ofthe product
