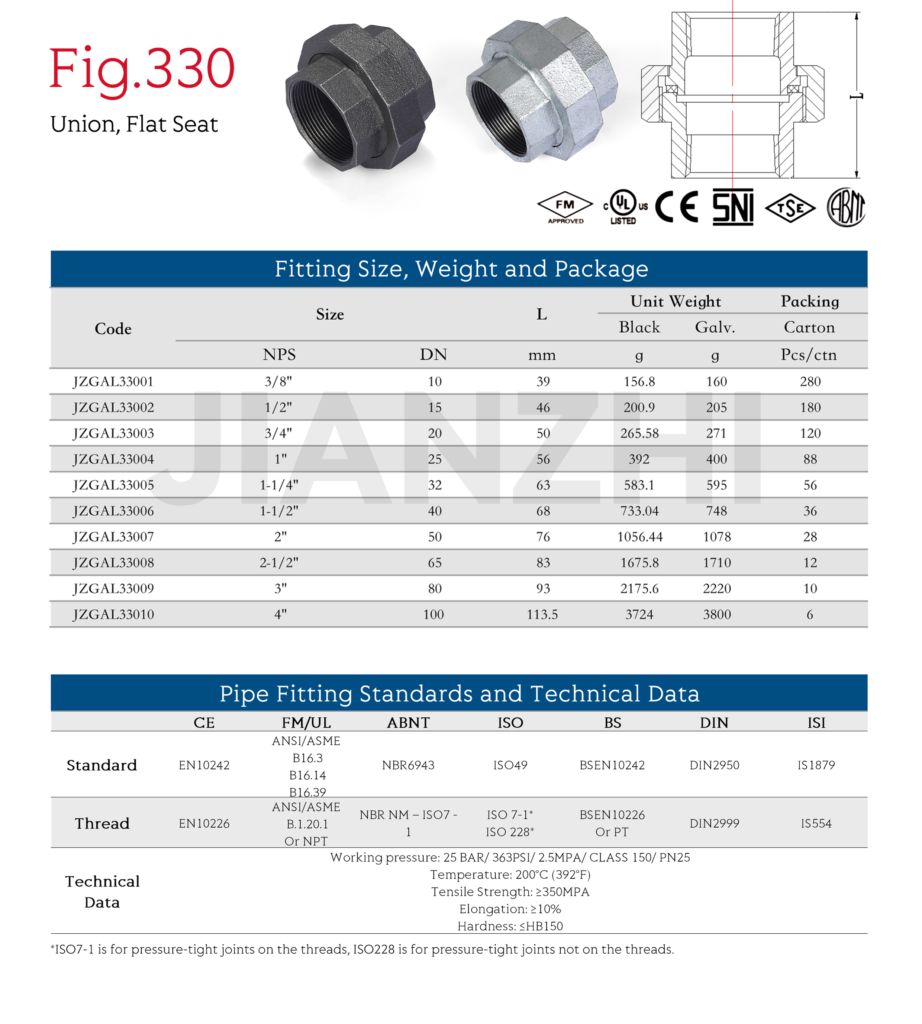

Plumbing Pipe Fittings Flat Seat Union Fig.330

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Various diameters of pipes, water meters, and valves can be connected with the union. It is very convenient to install, use, and maintain the pipe joint because of the socket structure. Additionally, it has a very high leak-proof ability, which provides a great market opportunity.
The union has high strength and good ductility. The connection is convenient, fast, and easy to operate. The detection is convenient and intuitive. Construction connection without electricity, no gas, no open fire operation, no oil leakage, no pollution, rain or wind, all-weather construction. It has strong applicability and can be operated flexibly in places with dense reinforcement arrangements in narrow and small sites.

Size: 1/2”-4”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

In Jianzhi Casting Group,all union is threaded by automatic CNC machine and lathes. Our union has high threading accuracy with excellent sealing performance. In China, our high quality union is irreplaceable.

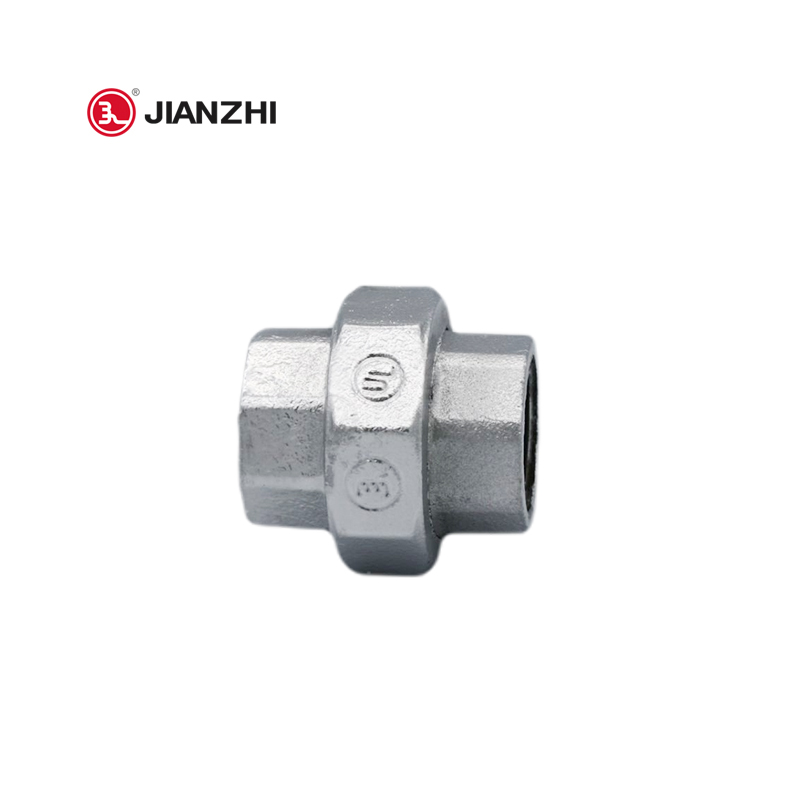

Plumbing Pipe Fittings Flat Seat Union
