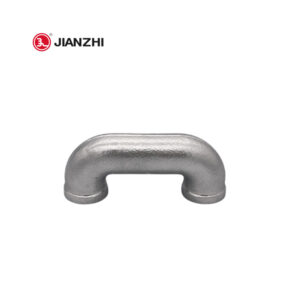

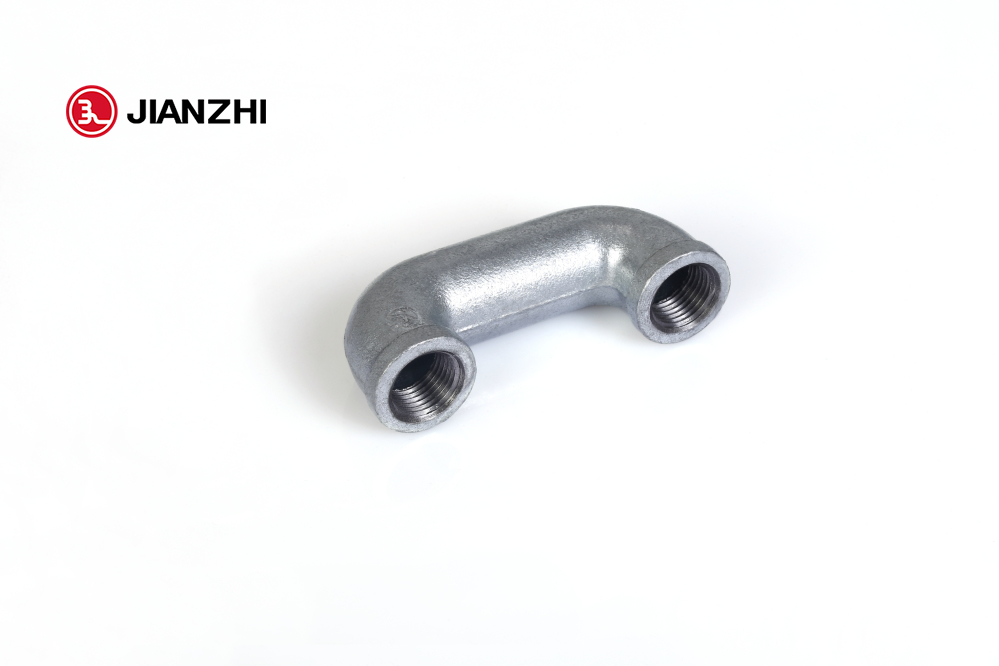

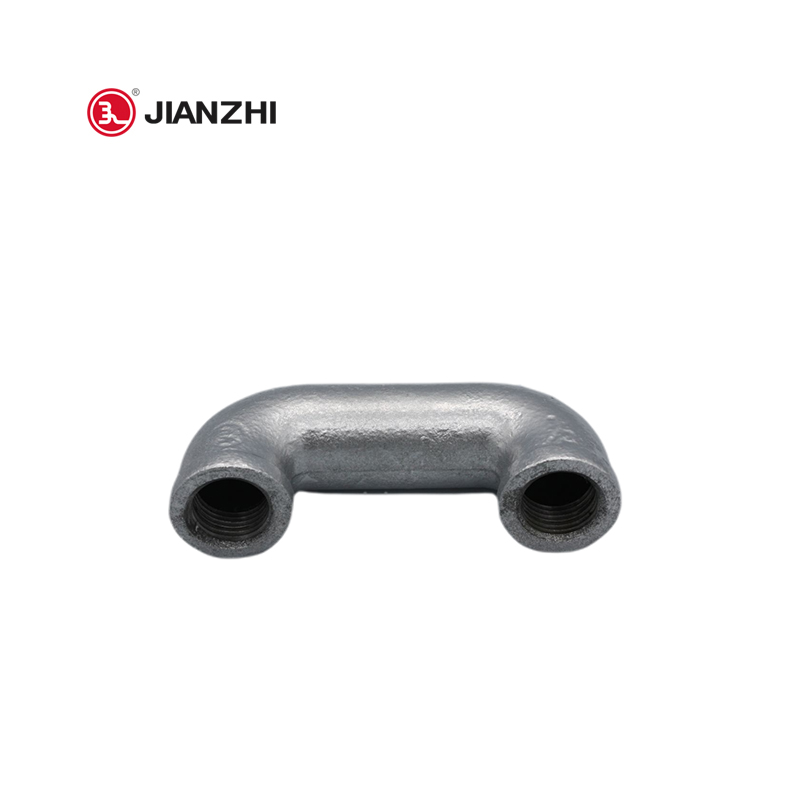

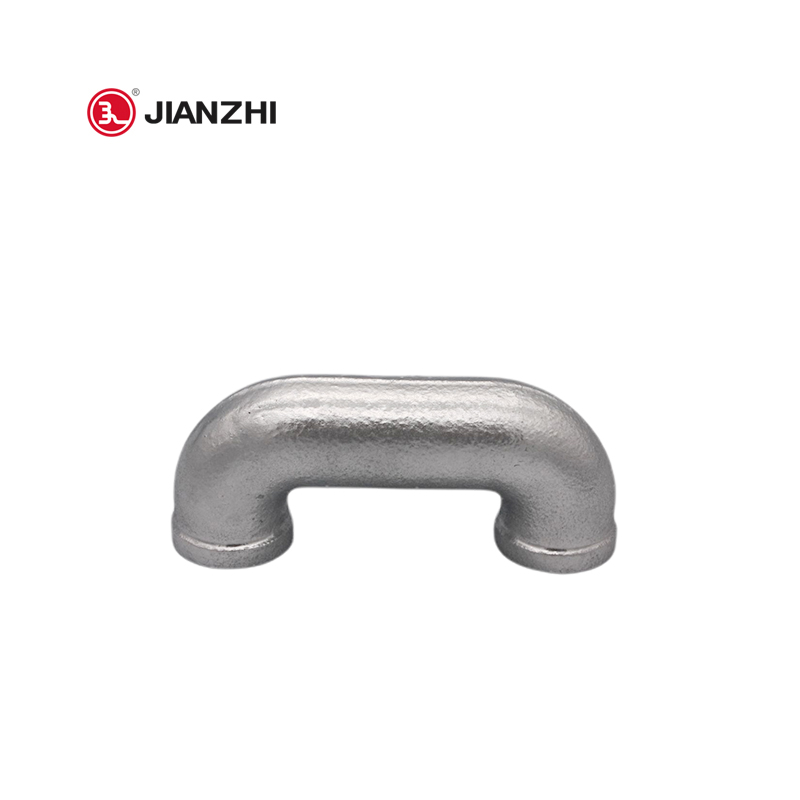

180 Degree Return Bend Fig.90U

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Malleable iron is a high-strength cast iron material developed in the 1950s. Its comprehensive properties are close to steel. It
is based on its excellent properties that it has been successfully used to cast some complex forces, strength, toughness, and
wear resistance highly demanding parts. Malleable iron has rapidly developed and widely used in many field.
JIANZHI adopt black heart malleable iron,tensile strength is more than 330Mpa,elongation is more than 8%.JIANZHI brand pipe fittings can be used in all major industrial sectors, which require high strength, plasticity, toughness, wear resistance, severe thermal and mechanical shock resistance, high or low temperature resistance, corrosion resistance, and dimensional stability.

Product Parameters

Size: 1/2”- 2”(DN15-DN50)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification: UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Product Dimensions



Size in 1/2 3/4 1 11/4 1 1/2 2
mm 15 20 25 32 40 50
A 30
B 80



Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
