The Expert Buyer’s Guide to the 45 Degree Pipe Elbow: 5 Key Factors for 2025

Abstract

The 45 degree pipe elbow, a fundamental yet often overlooked component in fluid and gas conveyance systems, serves the primary function of altering the direction of a pipe run by 45 degrees. An examination of this fitting reveals a complex interplay of material science, mechanical engineering, and fluid dynamics that dictates its performance and suitability for various applications. This analysis explores the critical factors influencing the selection of a 45 degree pipe elbow, with a particular focus on malleable cast iron, a material prized for its combination of strength and machinability. It investigates the distinctions between thread standards, such as NPT and BSPT, and their profound implications for system integrity. The document further considers the impact of the elbow’s geometry on flow characteristics, including pressure drop and turbulence. Manufacturing processes, from casting and annealing to finishing treatments like galvanization, are evaluated as determinants of quality and durability. Ultimately, the proper specification of a 45 degree pipe elbow is presented not as a trivial choice, but as a calculated decision integral to the safety, efficiency, and longevity of any piping system.

Key Takeaways

• Material choice, like malleable iron, dictates the elbow’s strength and corrosion resistance.
• Understanding thread types, NPT versus BSPT, is vital to prevent leaks and connection failure.
• A 45 degree pipe elbow minimizes pressure loss compared to sharper turns, improving system efficiency.
• Select a galvanized finish for outdoor or corrosive environments for enhanced longevity.
• Always verify manufacturing standards (e.g., ASTM, ASME) to ensure fitting quality and reliability.
• Proper installation techniques are just as important as selecting the correct fitting.
• Consider the application, from residential plumbing to industrial systems, to choose the right elbow.

Table of Contents

• Factor 1: Material Selection and Its Foundational Impact on System Longevity
• Factor 2: Decoding Thread Standards: NPT, BSPT, and the Nuances of Connection
• Factor 3: Radius and Flow Dynamics: The Subtle Physics of the 45 Degree Turn
• Factor 4: Manufacturing Processes and Quality Assurance: From Molten Iron to Finished Fitting
• Factor 5: Application-Specific Selection: Matching the Elbow to the Task
• Frequently Asked Questions (FAQ)
• Conclusion
• References

Factor 1: Material Selection and Its Foundational Impact on System Longevity

When we contemplate the vast, intricate networks of pipes that form the circulatory systems of our buildings and industries, it is easy to focus on the long, straight runs of pipe. Yet, the true complexity and elegance of these systems lie in the connections, the points of transition and redirection. Among the most common of these is the humble pipe elbow. The choice of a 45 degree pipe elbow, seemingly simple, is a decision freighted with consequence. The first and perhaps most fundamental consideration in this decision is the material from which the elbow is forged. The material is the very essence of the fitting; it determines its strength, its resistance to the elements within and without, and ultimately, its lifespan. It is a choice that speaks to the anticipated future of the system—will it face high pressures, corrosive substances, or extreme temperatures? The answer to these questions begins with a deep understanding of materials.

The Enduring Strength of Malleable Cast Iron

Let us first consider malleable cast iron. The name itself suggests a paradox: the brute strength of iron combined with a capacity for being shaped, a certain yielding quality. This is not a contradiction but a testament to a sophisticated metallurgical process. Standard cast iron, while strong in compression, is brittle. It shatters under sharp impact or tensile stress. Malleable iron, however, undergoes a prolonged heating and cooling process known as annealing. This heat treatment fundamentally alters the material’s microstructure. The brittle, plate-like graphite structures found in gray cast iron are transformed into irregular, rounded nodules of temper carbon within a ferrite or pearlite matrix.

Imagine a pane of glass with microscopic cracks running through it. This is akin to the structure of gray cast iron. Now, imagine that glass is instead embedded with tiny, spherical pebbles. It retains its hardness but is far less likely to propagate a crack. This is the structural advantage of malleable iron. This transformation imparts a degree of ductility, allowing the iron to deform slightly under stress before fracturing. It is this quality that makes a malleable cast iron 45 degree pipe elbow so resilient, capable of withstanding the vibrations, pressure fluctuations, and occasional impacts that are commonplace in many piping systems (Permanent Steel, 2025). Its tensile strength is a significant improvement over standard cast iron, providing a robust and reliable connection point that resists the pulling forces that can occur in a pipe run.

Comparing Malleable Iron, Ductile Iron, and Standard Cast Iron

To fully appreciate the unique position of malleable iron, it helps to compare it to its ferrous cousins: standard gray cast iron and ductile iron. Each has a distinct internal structure and, consequently, a distinct set of properties that makes it suitable for different tasks.

As the table illustrates, ductile iron offers superior strength and ductility, but its manufacturing process is more complex and costly. Standard gray cast iron is inexpensive and excellent at damping vibrations but is too brittle for most pressurized pipe fittings. Malleable cast iron occupies a “sweet spot,” offering a considerable upgrade in toughness and reliability over gray iron without the higher cost of ductile iron. This makes it an ideal material for threaded pipe fittings like a 45 degree pipe elbow, where machinability for threading and durability for service are both paramount.

Stainless Steel: The Choice for Corrosion Resistance

Journeying beyond the family of iron, we encounter stainless steel. This material is an alloy of iron, chromium, and often nickel. The magic of stainless steel lies in the chromium. When exposed to oxygen, the chromium forms a passive, invisible, and incredibly thin layer of chromium oxide on the surface of the steel. This layer is self-healing; if scratched, it instantly reforms, providing continuous protection against rust and corrosion.

For systems carrying potable water, food-grade products, or highly corrosive chemicals, a stainless steel 45 degree pipe elbow is often the only viable choice. It will not impart a metallic taste to water nor will it leach harmful substances. While its initial cost is significantly higher than that of malleable iron, its longevity in harsh environments can make it the more economical choice over the life of the system. Think of it as an investment in purity and permanence. However, its hardness can make it more difficult to machine and properly seal, requiring more care during installation.

Carbon Steel: Balancing Strength and Cost

Carbon steel is, in many ways, the workhorse of the industrial world. It is an alloy of iron and carbon, simple in its composition but versatile in its application. Carbon steel fittings are exceptionally strong and can handle very high pressures and temperatures, making them a staple in power plants, refineries, and heavy industrial settings (Hu-Steel, 2025). They are typically joined by welding rather than threading, creating a permanent, monolithic system.

A carbon steel 45 degree pipe elbow is a symbol of industrial might. Its weakness, however, is its susceptibility to corrosion. Unlike stainless steel, it has no passive protective layer. It will rust readily if exposed to moisture and oxygen. Therefore, carbon steel systems must be protected by coatings, paint, or by the nature of the fluid they carry (such as oil, which inhibits rust). For a threaded fitting, this vulnerability is a significant drawback, as the threads themselves can corrode, compromising the seal and making disassembly impossible.

Galvanized vs. Black Finishes: A Dichotomy of Protection and Aesthetics

Returning to our focus on malleable cast iron, we must address the final step in its preparation: the surface finish. Fittings are typically available in two primary states: “black” or “galvanized.”

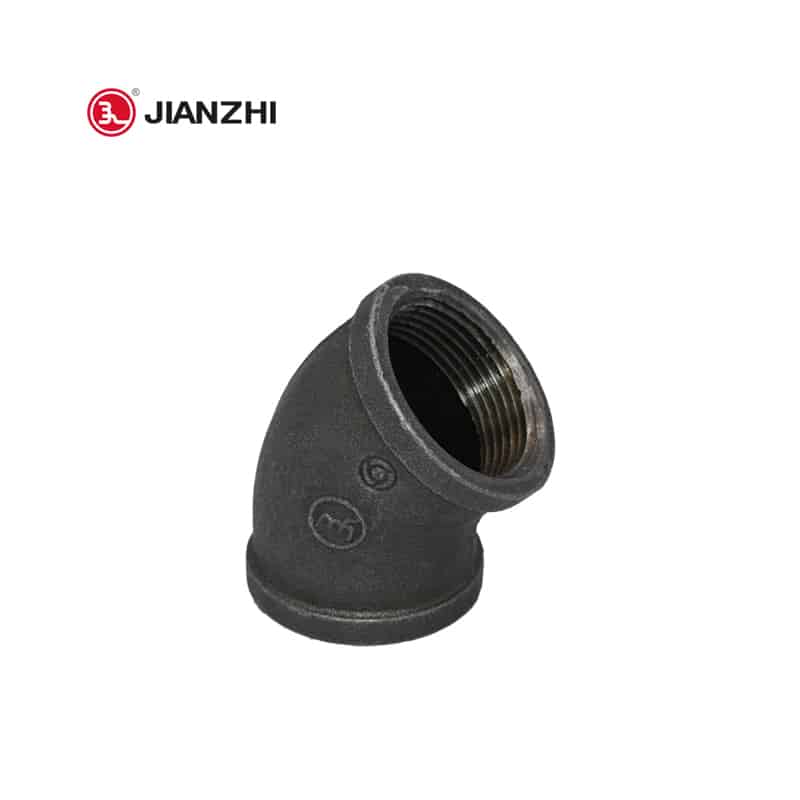

A black iron pipe fitting is not painted black. The term refers to the dark iron oxide scale that forms on the surface of the iron during the manufacturing process. This finish offers a minimal degree of corrosion protection, really just a slight barrier against moisture in a dry, indoor environment. Its primary use is in closed-loop heating systems (hydronics) or in natural gas and propane lines where the substance being transported is non-corrosive and free of water. For applications where aesthetics are a concern, such as in rustic or industrial-style furniture and shelving, the raw, dark look of a 45 degree pipe elbow is often highly desirable.

Galvanization, on the other hand, is a process of deliberate and robust protection. The malleable iron fitting is dipped into a bath of molten zinc. The zinc bonds metallurgically to the surface of the iron, creating a layered coating. This zinc coating provides protection in two ways. First, it acts as a simple barrier, physically separating the iron from the corrosive environment. Second, and more cleverly, it provides cathodic protection. Zinc is more electrochemically active than iron. This means that if the coating is scratched and both the zinc and the iron are exposed, the zinc will corrode preferentially, “sacrificing” itself to protect the iron beneath. This makes galvanized fittings, like a durable malleable iron 45 degree elbow, the standard choice for potable water lines, outdoor installations, compressed air lines carrying moisture, and any environment where rust is a concern.

Factor 2: Decoding Thread Standards: NPT, BSPT, and the Nuances of Connection

Having chosen the material that will give our 45 degree pipe elbow its intrinsic character, we must now turn our attention to the manner in which it will connect with its neighbors in the piping system. This is the domain of threads. To the casual observer, all threads may look alike—a simple spiral groove. To the engineer, the plumber, and the careful builder, however, the subtle differences in the geometry of these threads are a matter of profound importance. A mismatch in thread standards is not a minor inconvenience; it is a fundamental failure of connection that can lead to persistent leaks, stripped threads, and even catastrophic failure under pressure. The two dominant standards for tapered pipe threads in the world are the American NPT and the British BSPT. Understanding their logic is essential.

The Tapered Logic of NPT (National Pipe Thread)

The American standard, NPT, stands for National Pipe Taper. The key word here is “taper.” Unlike the parallel threads on a bolt or screw, NPT threads are cut on a cone. The diameter of the pipe and fitting gradually increases over the length of the thread. When a male-threaded pipe is screwed into a female-threaded fitting like a 45 degree pipe elbow, the tapers interfere with each other. As the connection is tightened, the flanks of the male and female threads are forcefully wedged together. This wedging action, known as thread deformation, is the primary sealing mechanism of an NPT joint.

The threads themselves are designed with a 60-degree angle between the flanks, and the crests and roots of the threads are flattened. It is a common misconception that the threads alone create a perfect, leak-proof seal. They do not. The very nature of the cutting process leaves a spiral leak path along the crest of the threads. Therefore, an NPT connection always requires the use of a suitable thread sealant, such as PTFE tape or a liquid pipe dope. The sealant’s job is to fill that microscopic helical gap, completing the seal that the mechanical force of the taper began.

Understanding BSPT (British Standard Pipe Taper) and Its Global Reach

Across the Atlantic, and indeed across much of the world that fell under the influence of British engineering standards, the dominant form is BSPT, which stands for British Standard Pipe Taper. Like NPT, it is a tapered thread, and it functions on the same principle of a mechanical wedge creating a seal. However, the devil, as they say, is in the details. The geometry of the BSPT thread is different. The angle between the flanks of a BSPT thread is 55 degrees, not 60. The crests and roots are also rounded rather than flattened.

These differences may seem minute, but they are absolute. They mean that an NPT male fitting will not properly seat in a BSPT female fitting, and vice versa. While you might be able to start threading them together for a turn or two, they will quickly bind. Attempting to force them together with a wrench will result in damaged threads, a condition known as “galling,” and a joint that is guaranteed to leak. BSPT connections, like their NPT counterparts, also require a thread sealant to fill the spiral leak path and ensure a pressure-tight joint.

NPT vs. BSPT: A Comparative Analysis

The choice between NPT and BSPT is largely dictated by geography and the origin of the equipment being used. It is a crucial point of knowledge for anyone involved in international trade or servicing equipment from different parts of the world. Let’s formalize the comparison.

One important note is the existence of a parallel thread variant in the British system, known as BSPP (British Standard Pipe Parallel). BSPP connections do not seal via the threads. Instead, they rely on a gasket or O-ring that is compressed against a flat surface, typically on the shoulder of the male fitting. It is vital not to confuse BSPT with BSPP. A 45 degree pipe elbow designed for a pressurized system will almost invariably use a tapered thread (NPT or BSPT) for its primary connections.

The Perils of Mismatching Threads: A Cautionary Tale

Let me paint a picture for you. Imagine a maintenance technician in a factory in Ohio. A critical piece of machinery, imported from Germany, has a failed hydraulic line. The technician needs to replace a 45-degree elbow. He grabs a new malleable iron elbow from his stockroom, which is filled with NPT fittings. The thread size appears to be correct, say, 1/2 inch. He starts to screw it in. It goes for a couple of turns and then gets tight. Believing it just needs a bit more force to seat the taper, he puts a large pipe wrench on it and gives it a powerful heave. There is a sickening crunch. He has just destroyed the threads on a multi-thousand-dollar hydraulic manifold. The machine is now down for days, waiting for a proper BSPT fitting to be air-freighted from overseas.

This is not a far-fetched scenario. It happens with frustrating regularity. The subtle difference in thread angle and profile creates an interference that brute force cannot overcome. It only leads to destruction. The first rule of pipe fitting is to correctly identify the thread standard before you ever pick up a wrench. This can be done with thread gauges, by carefully measuring the threads-per-inch (TPI) and diameter, or by checking the documentation for the equipment. When in doubt, stop and verify. The time spent in identification is trivial compared to the cost of correcting a mistake.

Factor 3: Radius and Flow Dynamics: The Subtle Physics of the 45 Degree Turn

We have constructed our elbow from the proper material and endowed it with the correct threads for connection. Now, we must consider its very purpose: to change the direction of flow. Every time a fluid—be it water, air, oil, or steam—is forced to change direction, there is a cost. This cost is paid in the form of energy, manifesting as a drop in pressure and an increase in turbulence. The art of good piping design is to minimize this cost. The geometry of the 45 degree pipe elbow is a masterclass in compromise, offering a gentler, more efficient change of direction than its more abrupt 90-degree counterpart. To understand why, we must dip our toes into the world of fluid dynamics.

Long Radius (LR) vs. Short Radius (SR) Elbows: A Misconception in 45-Degree Fittings

In the world of pipe fittings, particularly with 90-degree elbows, you will frequently encounter the terms “Long Radius” (LR) and “Short Radius” (SR). A long radius 90-degree elbow has a center-to-face dimension that is 1.5 times the nominal pipe size (NPS). A short radius 90-degree elbow has a center-to-face dimension equal to the NPS. The longer, more gradual sweep of an LR elbow creates less friction and pressure drop than the tight turn of an SR elbow.

However, this LR/SR distinction is almost exclusively applied to 90-degree elbows. For a standard 45 degree pipe elbow, there is generally only one standard radius, which is inherently “long” or gradual by nature. The change of direction is less severe, so the need for a tighter, space-saving “short radius” version is virtually nonexistent in standard plumbing and industrial piping. The geometry of a standard 45-degree fitting is already optimized for a smooth directional change. So, while it’s a crucial concept for 90-degree turns, you can generally set aside the LR/SR concern when specifying a 45-degree elbow for most common applications.

The Concept of Center-to-Face Dimension and Its Practical Importance

While the LR/SR terminology may not be prevalent, the underlying measurement that defines it—the center-to-face dimension—is critically important for the person assembling the pipe system. The center-to-face dimension is the distance from the centerline of one opening of the elbow to the face of the other opening.

Think of it as the “take-off” measurement. When a plumber or pipefitter is cutting a piece of pipe that needs to connect two 45-degree elbows, they must know this dimension precisely to calculate the correct length of the pipe. If their calculation is off, the final assembly will not align. Standardized dimensions, governed by bodies like ASME (American Society of Mechanical Engineers), ensure that a 1-inch 45-degree elbow from one reputable manufacturer will have the same critical dimensions as one from another. This interchangeability is the bedrock of modern construction and maintenance. When you purchase a fitting that conforms to a standard like ASME B16.3 for malleable iron threaded fittings, you are purchasing the assurance that it will fit.

How a 45 Degree Pipe Elbow Minimizes Pressure Drop and Turbulence

Imagine a river flowing smoothly. Now, imagine it hits a sharp, 90-degree cliff wall. The water would crash against it, churning violently, with eddies and whirlpools forming. A great deal of the river’s forward energy would be lost in this chaos. This chaotic, tumbling motion is turbulence. Now, imagine the river instead encounters a gently sloping bank that guides it into a new direction. The flow would remain much smoother, and more of its energy would be conserved.

This is precisely the difference between a 90-degree elbow and a 45 degree pipe elbow. The fluid on the inside of the turn has to travel a shorter distance than the fluid on the outside of the turn. In a sharp 90-degree bend, this difference is pronounced. The fluid on the outside has to accelerate dramatically, while the fluid on the inside can slow down and even separate from the pipe wall, creating a low-pressure zone and turbulence.

A 45-degree elbow mitigates this effect significantly. The change in direction is less abrupt. The difference in path length between the inner and outer curve is smaller. The fluid can navigate the turn with less disruption, maintaining a more laminar (smooth) flow profile. This directly translates to a lower pressure drop across the fitting. In a system with a single elbow, this difference might be negligible. But in a complex system with dozens of directional changes, using 45-degree elbows wherever possible instead of 90-degree elbows can result in a significant cumulative reduction in pressure loss. This means the pump or compressor driving the system doesn’t have to work as hard, saving energy over the life of the system (What Is Piping, 2024).

Calculating Pressure Loss: An Engineer’s Perspective

For engineers designing large-scale systems, quantifying this pressure loss is not an academic exercise; it is a critical design parameter. The pressure loss due to a fitting is often expressed in one of two ways: as a resistance coefficient (K-factor) or as an equivalent length of straight pipe.

The K-factor is a dimensionless number that is specific to the geometry of the fitting. The pressure loss (ΔP) is then calculated using the formula ΔP = K * (ρV²/2), where ρ is the fluid density and V is the fluid velocity. A standard threaded 90-degree elbow might have a K-factor of around 1.5, while a 45 degree pipe elbow has a K-factor of around 0.35. This clearly shows that the 90-degree elbow contributes more than four times the pressure loss of the 45-degree elbow.

The equivalent length method is perhaps more intuitive. It answers the question: “How many feet of straight pipe would cause the same amount of friction loss as this one fitting?” For example, a 2-inch, 90-degree standard elbow might be equivalent to about 5.5 feet of straight pipe. A 2-inch, 45-degree elbow, in contrast, is only equivalent to about 2.5 feet of pipe. When you are adding up the total friction loss in a system that might be hundreds of feet long, these equivalent lengths for each fitting become very significant. Using two 45-degree elbows to make a 90-degree offset will almost always result in less total pressure drop than using a single 90-degree elbow.

Factor 4: Manufacturing Processes and Quality Assurance: From Molten Iron to Finished Fitting

We have delved into the “what” and the “why”—what material to use, why one thread form is different from another, and why the geometry of a 45 degree pipe elbow matters to the flow within it. Now, we must examine the “how.” How is this small but critical component brought into being? The journey from raw materials to a finished, reliable pipe fitting is a multi-stage process rooted in both age-old foundry techniques and modern quality control. The integrity of the final product is a direct reflection of the care and precision invested at each stage. A flaw in the casting, an error in the heat treatment, or a sloppy machining job can turn a seemingly robust component into a hidden point of failure.

The Art and Science of Casting Malleable Iron

The process begins with a precise recipe of raw materials—pig iron, scrap steel, and various carbon and silicon sources—melted in a furnace at temperatures exceeding 2,700°F (1,500°C). The chemistry of this molten bath is meticulously controlled. Once the correct composition is achieved, the molten metal is poured into molds. These molds are typically made of sand mixed with a binder and are formed around a pattern that is the exact shape of the desired elbow, including allowances for shrinkage as the metal cools.

At this stage, the casting is known as “white iron.” It is incredibly hard and brittle, so much so that it could be shattered with a hammer. Its internal structure is composed of iron carbides (cementite), which are responsible for this hardness. The casting is then removed from the sand mold, a process called shakeout. The excess material, including gates and risers (channels that allow the metal to flow into and feed the mold cavity), is trimmed off. The raw, brittle white iron casting is now ready for its transformation.

The Annealing Process: Imparting Malleability and Strength

This is the metallurgical heart of the process. The white iron castings are loaded into a large annealing oven. They are subjected to a very specific and prolonged heat cycle. The oven is slowly heated to a temperature of around 1,750°F (950°C) and held there for an extended period—sometimes for 50 hours or more. During this high-temperature soak, the brittle iron carbide structure breaks down. The carbon atoms migrate through the iron matrix and coalesce into the compact, irregular nodules of temper carbon that are the hallmark of malleable iron.

After this soak, the castings are cooled very slowly. The rate of cooling is critical, as it determines the final matrix of the iron (whether it is ferritic or pearlitic), which in turn determines its final strength and ductility. This entire annealing cycle is a delicate dance of time and temperature. Rushing it or failing to control the atmosphere inside the oven can result in an incomplete transformation, leaving a product that does not meet the required mechanical properties. A properly annealed malleable iron 45 degree pipe elbow possesses the toughness to resist fracture, a quality that is indispensable in a pressurized system.

Precision Machining: Cutting the Threads

Once the elbow has been annealed and has acquired its desired material properties, it is still not a finished fitting. It is a tough, blank casting. The next crucial step is machining. The casting is securely held in a jig while high-speed, automated machines cut the threads into the openings. This is a precision operation. The machines must cut the threads to the exact taper, pitch, and diameter specified by the relevant standard (e.g., ASME B1.20.1 for NPT).

The quality of the threads is paramount for a proper seal. The threads must be clean, sharp, and fully formed, with no nicks, burrs, or tears. Poor quality machining can result in threads that are difficult to start, that bind prematurely, or that have imperfections that create leak paths. After machining, each fitting is typically inspected, often with go/no-go gauges, to ensure the threads are within the allowed tolerances.

The Galvanization Process: A Layer of Sacrificial Protection

For fittings destined for use in corrosive environments, there is one final manufacturing step: galvanization. As discussed earlier, this involves immersing the finished and machined elbow in a bath of molten zinc. Before this immersion, however, the elbow must be perfectly clean. It goes through a series of chemical baths: a degreasing bath to remove any oils from machining, an acid pickling bath to remove any mill scale or rust, and a fluxing bath to prepare the surface for bonding with the zinc.

Once properly cleaned, the elbow is dipped into the molten zinc, which is typically held at around 840°F (450°C). The iron and zinc react to form a series of zinc-iron alloy layers, with a final layer of pure zinc on the outside. The thickness of this coating is an important quality parameter, as it determines the lifespan of the corrosion protection. A high-quality galvanized coating is uniform, continuous, and free of lumps or bare spots, ensuring that the entire surface, including the delicate threads, is protected.

Quality Control Standards (ASME, ASTM, ISO) and Their Significance

Throughout this entire process, reputable manufacturers adhere to a strict set of industry standards. These standards are not arbitrary rules; they are a collective body of knowledge developed over decades to ensure safety, reliability, and interchangeability. For a malleable iron 45 degree pipe elbow intended for the US market, key standards include:

• ASTM A197/A197M: This is the material standard. It specifies the chemical composition, heat treatment process, and required mechanical properties (tensile strength, yield strength, elongation) for malleable iron.
• ASME B16.3: This is the dimensional standard for malleable iron threaded fittings. It dictates the center-to-face dimensions, wall thickness, thread specifications, and pressure ratings for fittings of various sizes.
• ASME B1.20.1: This is the specific standard for NPT pipe threads.

When you see a fitting marked with these standards, it is the manufacturer’s declaration that the product meets these established criteria for quality and performance. It is a mark of trust. Conversely, a fitting with no markings or with unfamiliar markings should be viewed with suspicion, as it may not meet the safety and dimensional requirements for your application (Sincosteel, 2024).

Factor 5: Application-Specific Selection: Matching the Elbow to the Task

We have now assembled a complete intellectual toolkit for understanding the 45 degree pipe elbow. We know about its materials, its connections, its effect on flow, and how it is made. The final and most practical step is to apply this knowledge. The selection of the right elbow is not an abstract problem; it is a response to a specific need. The ideal fitting for a residential hot water line is different from the one required for a high-pressure industrial steam line. Matching the fitting to the application is the synthesis of all the factors we have considered.

Residential Plumbing: Water, Gas, and Drainage

In the familiar environment of our homes, the 45 degree pipe elbow is a ubiquitous but often unseen worker. For potable water lines (both hot and cold), the standard choice is a galvanized malleable iron elbow. The galvanization is essential to prevent rust from contaminating the drinking water and to ensure the longevity of the pipes, which are constantly exposed to water and oxygen. The malleable iron provides more than enough strength to handle typical municipal water pressures.

For natural gas or propane distribution within a house, black malleable iron fittings are the norm. Since the gas is dry and non-corrosive, the expensive step of galvanization is unnecessary. The robust, threaded connections of malleable iron fittings are prized for their reliability in these applications, where a leak could have dire consequences.

In drainage systems (DWV – Drain, Waste, Vent), the primary concern is not pressure but smooth flow and corrosion resistance. While large-diameter pipes are often plastic (PVC or ABS), smaller threaded connections in vent lines or complex drainage configurations might still use galvanized malleable iron elbows for their strength and durability. The 45-degree bend is particularly useful for creating gentle offsets to route pipes around obstacles like floor joists without impeding the flow of waste.

Industrial Piping: Navigating High Pressure and Temperature

As we move from the residential to the industrial sphere, the demands placed upon pipe fittings increase dramatically. In a power plant, chemical facility, or oil refinery, a 45 degree pipe elbow might need to withstand pressures of thousands of PSI and temperatures of hundreds or even thousands of degrees.

In these extreme environments, carbon steel or alloy steel fittings are the standard. These are typically thick-walled and are joined by welding (butt-weld fittings) rather than threading. A threaded connection, like those on a malleable iron elbow, becomes a potential weak point at very high pressures. For moderately high-pressure steam lines or compressed air systems, however, heavy-duty (e.g., Class 300) malleable or ductile iron threaded fittings can still be a viable and cost-effective option. The key is to scrupulously check the pressure-temperature rating of the specific fitting class against the operating conditions of the system.

Fire Protection Systems: The Demand for Reliability

There are few applications where reliability is more critical than in a fire sprinkler system. These systems sit dormant for years, even decades, but must function perfectly and instantly when called upon. The fittings used must be able to withstand the static pressure of the system for long periods and resist corrosion that could clog the sprinkler heads.

For this reason, galvanized malleable iron fittings are a very common choice in threaded fire protection systems. They offer an excellent combination of strength, proven reliability, and corrosion resistance at a reasonable cost. Ductile iron fittings are also used, particularly in larger sizes or higher-pressure systems. Every component in a fire sprinkler system, including every 45 degree pipe elbow, must be UL (Underwriters Laboratories) listed or FM (Factory Mutual) approved, which provides an extra layer of third-party verification of its quality and suitability for this life-safety application.

HVAC and Compressed Air Lines: Maintaining Flow Efficiency

In Heating, Ventilation, and Air Conditioning (HVAC) systems, 45-degree elbows are used extensively in hydronic (hot and chilled water) piping. Both black iron (for closed-loop heating) and galvanized iron (for chilled water, to handle condensation) are used. In these systems, which often involve long and complex pipe runs, the lower pressure drop of a 45 degree pipe elbow is a significant advantage. Minimizing pressure loss allows for the use of smaller, more efficient circulation pumps, saving on both initial and operational costs.

Similarly, in compressed air systems, every bit of pressure loss between the compressor and the point of use is wasted energy. Using 45-degree elbows to create gradual offsets instead of sharp 90-degree turns is a simple but effective strategy for improving the overall efficiency of the compressed air network. Galvanized malleable iron is the preferred material here, as compressed air often contains a significant amount of water vapor that will condense in the pipes and cause rust in unprotected fittings.

Frequently Asked Questions (FAQ)

Can I use a 45-degree elbow for both gas and water lines?

No, you should use different types of fittings for these applications. For natural gas or propane, you should use a black malleable iron 45 degree pipe elbow. For potable water lines, you must use a galvanized malleable iron elbow to prevent rust and ensure the water remains safe to drink. Using a black iron fitting for water will lead to rapid corrosion and system failure.

What is the difference between a 45-degree elbow and a 45-degree street elbow?

A standard 45-degree elbow has two female (internal) threads. A 45-degree “street” elbow (or “street ell”) has one female thread and one male (external) thread. This allows it to be screwed directly into another fitting without needing a short piece of pipe (a nipple) in between, saving space and one connection point.

How do I properly tighten a malleable iron 45-degree elbow?

First, apply a suitable thread sealant (PTFE tape or pipe dope) to the male threads. Then, screw the fitting on hand-tight. After that, use a pipe wrench to tighten it further. A general rule of thumb is to tighten it 1.5 to 3 full turns past hand-tight. The key is to create a firm, leak-proof seal without over-tightening, which can crack the fitting or damage the threads.

Why choose a malleable iron 45 degree pipe elbow over a plastic one?

Malleable iron offers significantly greater mechanical strength, temperature resistance, and pressure rating compared to plastic fittings (like PVC or CPVC). It is the superior choice for pressurized gas lines, high-temperature water lines, and in any application where the pipes might be subject to physical impact or vibration. Plastic is suitable for low-pressure drainage and some cold-water applications but lacks the robustness of iron.

Is a black iron pipe fitting suitable for outdoor use?

No, black iron fittings should not be used outdoors or in any environment where they will be exposed to moisture. The black oxide finish offers very little protection against rust. When exposed to rain, condensation, or even high humidity, a black iron fitting will corrode quickly. For any outdoor or damp application, a galvanized fitting is required.

What does the “Fig. 120” designation mean on an elbow?

“Fig. 120” is a common industry designation for a standard 45-degree elbow with female threads on both ends. This figure number is a shorthand used by manufacturers and distributors to identify the specific shape and type of fitting, similar to how “Fig. 90” often denotes a 90-degree elbow. It helps ensure you are ordering the correct part.

Conclusion

The journey through the world of the 45 degree pipe elbow reveals a narrative of quiet competence. It is a component that does not call attention to itself, yet its proper selection and implementation are foundational to the integrity of systems that are vital to our daily lives. We have seen that the choice of material, from the resilient and versatile malleable cast iron to corrosion-resistant stainless steel, is a response to the specific chemical and physical challenges the fitting will face. We have navigated the precise and unforgiving world of thread standards, recognizing that the subtle geometry of NPT and BSPT threads is a language that must be spoken correctly to ensure a secure and leak-free union.

Furthermore, we have explored the physics of flow, appreciating how the gentle curve of the 45-degree elbow preserves energy and maintains efficiency within a system. We have peered into the fiery heart of the foundry and the precision of the machine shop to understand that quality is not an accident, but the result of a controlled and deliberate manufacturing process. Finally, we have grounded this knowledge in the practical realities of application, matching the specific attributes of the fitting to the unique demands of residential, industrial, and safety systems. The 45 degree pipe elbow is, therefore, far more than a simple piece of metal. It is an embodiment of metallurgical science, mechanical precision, and thoughtful engineering—a critical node in the networks that support our world.
