Malleable cast iron is commonly known as malleable iron, horse iron. The production process of vermicular graphite cast iron is: first cast into white cast iron castings, and then through forgeable annealing (forgeable annealing decomposes cementite into flocculent graphite) to obtain malleable iron castings.
Chemical composition, structure and properties of malleable iron
1 The chemical composition of malleable cast iron is: wC=2.2%～2.8%, wSi=1.0%～1.8%, wMn=0.3%～0.8%, wS≤0.2%, wP≤0.1%.
2 The structure of malleable cast iron has two types: ferrite (F) + flocculent graphite (G); pearlite (P) + flocculent graphite (G).
3 Performance:
Because the graphite in malleable cast iron is flocculent and has little effect on the matrix, its mechanical properties are higher than that of gray cast iron, and its plasticity and toughness are good, but malleable cast iron cannot be forged and pressed. The matrix structure of malleable cast iron is different, Its properties are also different, in which black-core malleable iron has higher plasticity and toughness, while pearlitic malleable iron has higher strength, hardness and wear resistance.
The malleable steel products of Jianzhi Group have a certain reputation in the world and are reliable suppliers.
-
3 Way Pipe Fittings Iron 90 Side Outlet Elbow Fig.1221
-

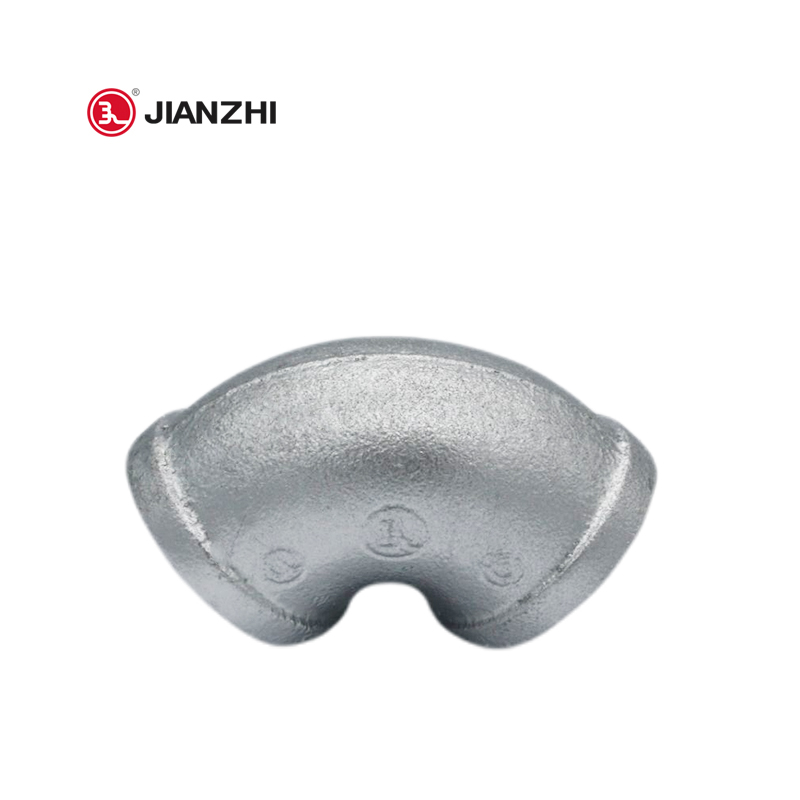

FIG.90 Elbow 90°, Equal
-
FIG.130 Tee Equal
-
FIG.220 Socket, Part Threaded
-
Galvanized Pipe Bushing Fig.241
-
Galvanized Nipple Equal Fig.280
-
BSP Pipe Fittings Union Taper Seat Fig.340
-
4 way galvanized pipe fitting Equal Cross Fig.180
-
Elbow Pipe Bend 45 Degree Male and Female Fig.40
-
Female GI Pipe Fittings 45 Degree Fig. 41
-
180 Degree Return Bend Fig.90U
-
Cast Iron Fittings 90 Degree Elbow Fig.92
