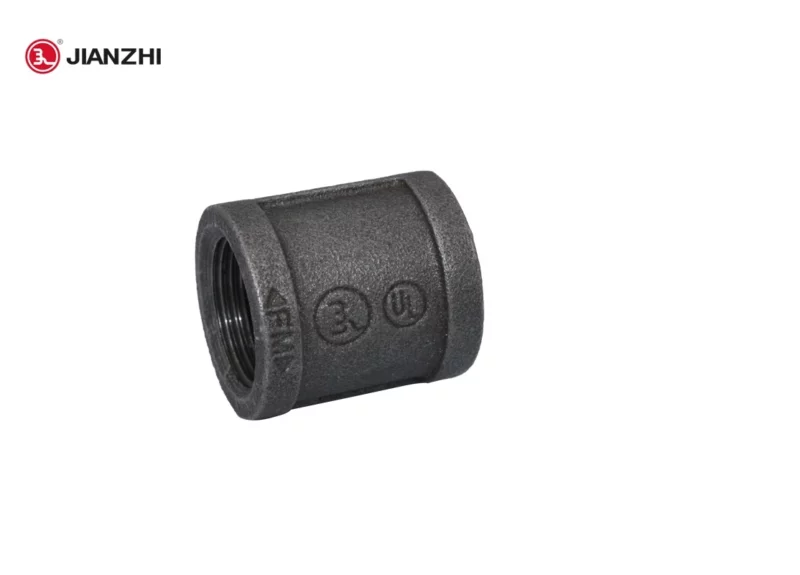

Black NPT Fitting Socket Entire Threaded Fig.270
Product Description

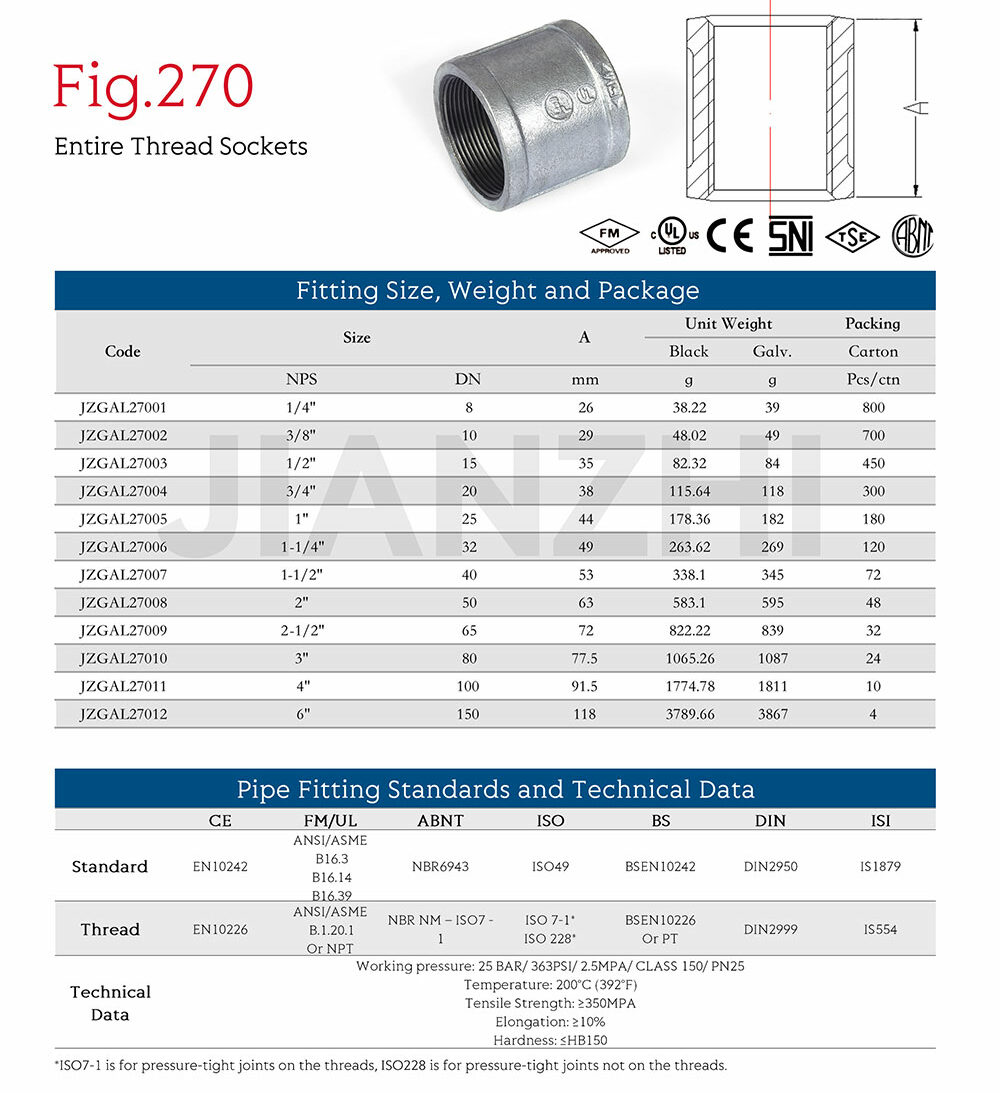

Fitting size, package and your order quantity Fig.270
| Size | L(mm) | PCS/CTN. | Size | L(mm) | PCS/CTN. |
| 1/4 | 26 | 800 | 1½ | 53 | 72 |
| 3/8 | 29 | 700 | 2 | 63 | 48 |
| 1/2 | 35 | 450 | 2½ | 72 | 32 |
| 3/4 | 38 | 300 | 3 | 77 | 24 |
| 1 | 44 | 180 | 4 | 91 | 10 |
| 1¼ | 49 | 120 | 6 | 118 | 4 |
Pipe Fitting Standards and Technical Data Fig.270
| CE | FM/UL | ABNT | ISO | BS | DIN | ISI | |
| Standard | EN10242 | ANSI/ASME B16.3 B16.14 B16.39 | NBR6943 | ISO49 | BSEN10242 | DIN2950 | IS1879 |
| Thread | EN10226 | ANSI/ASME B.1.20.1 Or NPT | NBR NM – ISO7 -1 | ISO 7-1* ISO 228* | BSEN10226 Or PT | DIN2999 | IS554 |
| Technical Data | Working pressure: 25 BAR/ 363PSI/ 2.5MPA/ CLASS 150/ PN25 Temperature: 200°C (392°F) Tensile Strength: ≥350MPA Elongation: ≥10% Hardness: ≤HB150 | ||||||
