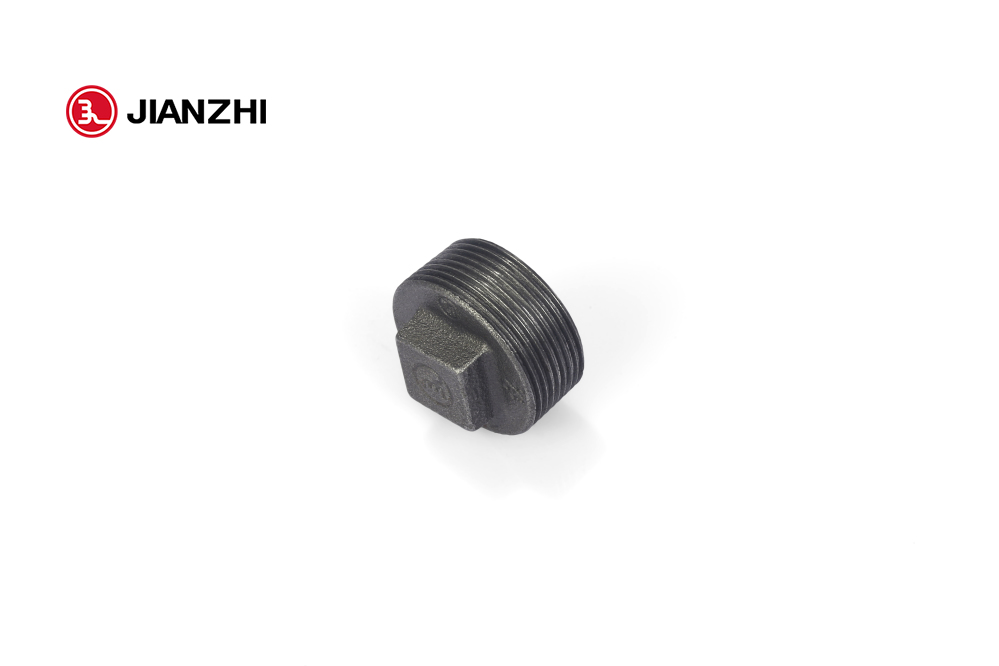

Square Head Plug Plain Fig.291

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

In order to ensure that Jianzhi’s products can be used in a wider and more severe environment, the company adopts materials that meet higher standards than EU standards. This is why Jianzhi’s products are more expensive than other brands.
In a private or cottage construction system, and in centralized pipeline systems, black cast iron JIANZHI fittings are used to connect pipe sections and to change the direction of transported substances. Both internal and external threads can be found on threaded cast iron fittings, which allows them to connect pipelines of different diameters and materials.

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron

Tips:
The to Tolerance on length (mm)

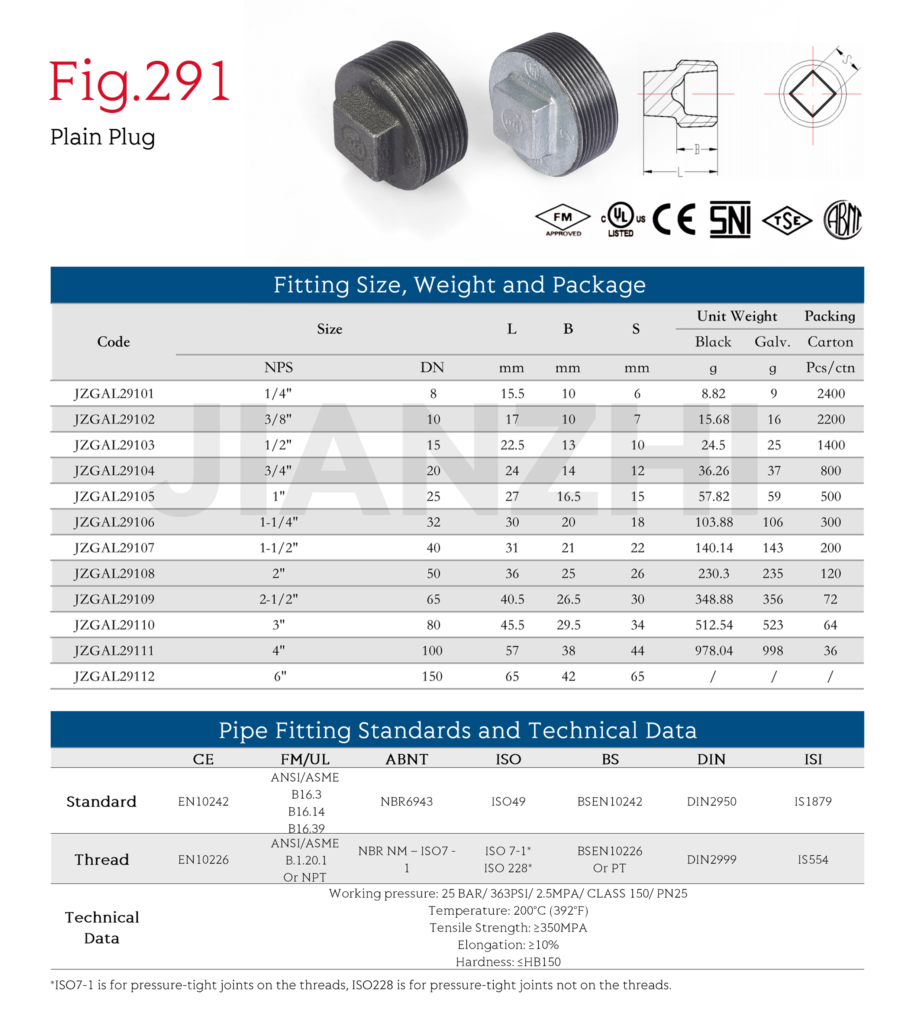

Plain-Plug
