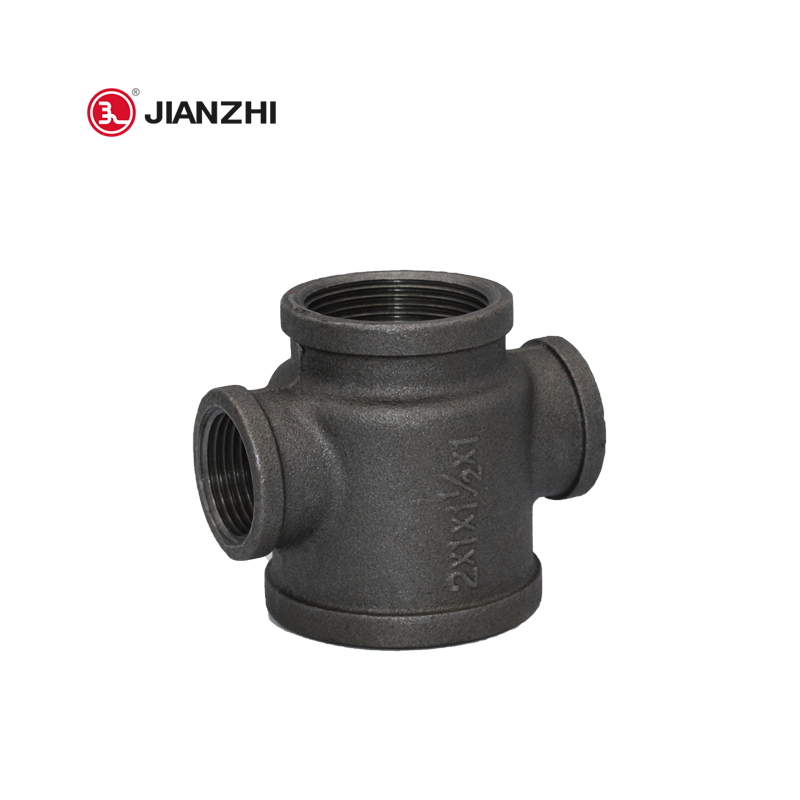

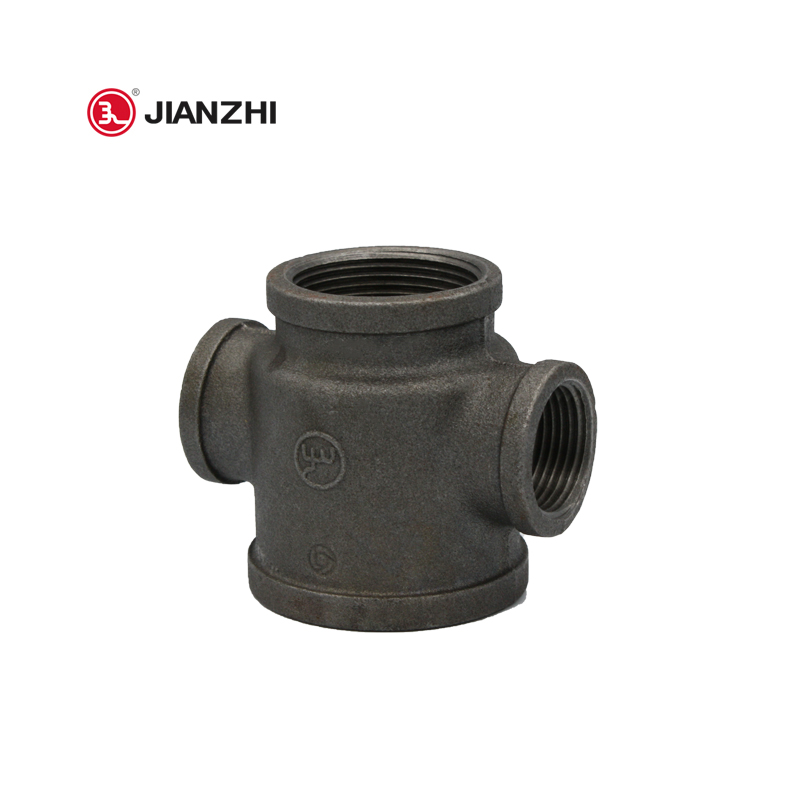

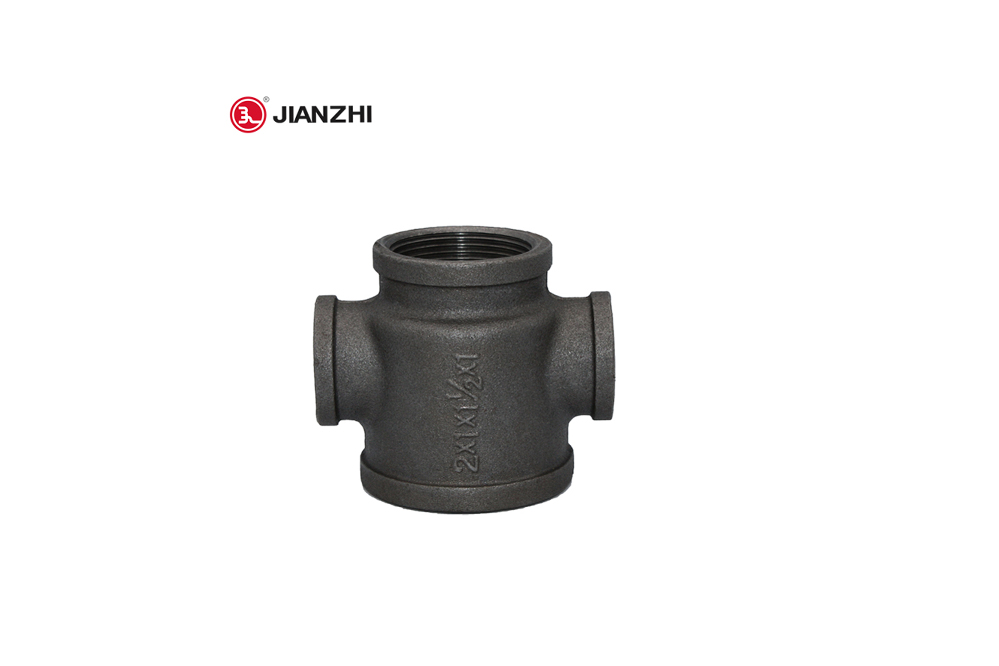

Black Cross Reducer Fig.180R
| Maximum Pressure: | 25 BAR (363PSI) (2.5MPA) CLASS 150 |
|---|---|
| Maximum Temperature: | 200°C (392°F) |
| Tensile Strength: | 350MPA |
| Suitable Applications: | Water, Oil, Gas, Petro-Chemical |
Material: Malleable Iron
Connection Type :Threaded
Size: 1/2”-4”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Product Description
You will be impressed by the quality and production process of Jianzhi 180 reducing four-way pipe if you visit our factory.
Jianzhi produces reducing four-way pipe fittings in many different sizes to satisfy the requirements of different customers and pipe diameters. In addition to our 40 mold sets, we have six different sizes of pipe fittings to match them: 2-1/2”x1/2”, 2-1/2”x3/4”, 2-1/2”x1”, 2-1/2”x1-1/4”, 2-1/2”x1-1/2”, 2-1/2”x2”.
Therefore, Jianzhi has the largest selection of full-size reducing four-way pipe fittings.
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
End Connections: Cross
Do you know?
Due to Jianzhi have strict thread standard, it is easy to install.
In the short time, you can install more Jianzhi fittings, also save your cost.
Black Cross Reducer
