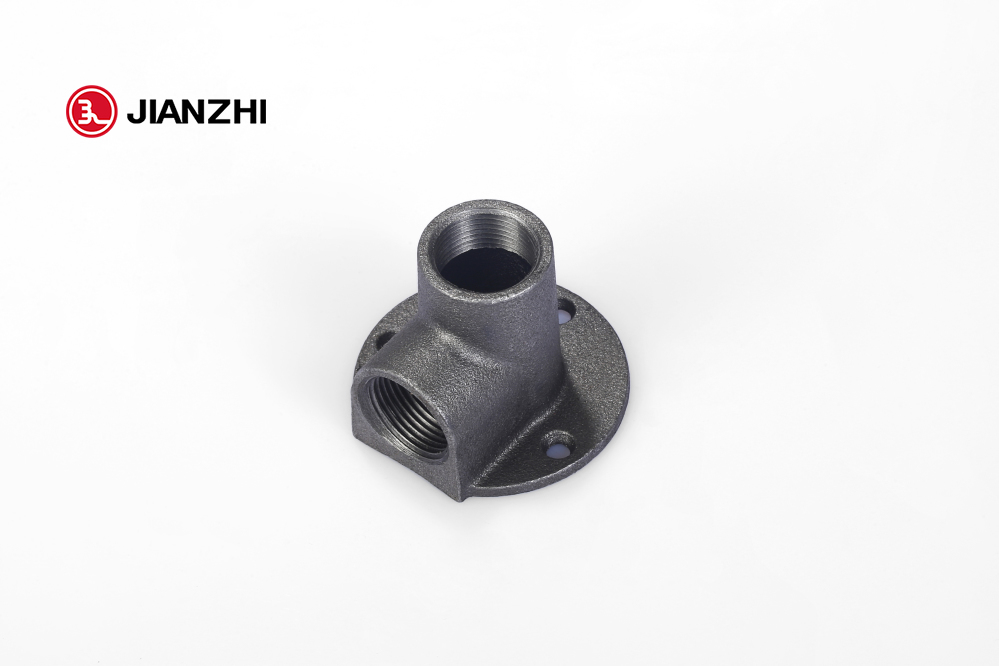

Black Bracket Elbow Fig.471

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Our company “”Jiang Zhi”” is a manufacturer of high quality fittings. Our priority is not the pursuit of low price, but the sale of quality and safe products in the engineering market. In recent days, we are focusing on the quality market. We are delighted to be the leading brand in the China market for the past 12 years. And we have obtained CE / FM / UL / ABNT / TSE certification to help us cooperate with overseas clients.
Our pipe plant has a stricter standard than EN 10242.

Unit:mm471
SizeIn1/23/411 1/41 1/22
mm152025324050
A2833____
B1820____



Product Parameters

Size:1/8”-6”(DN6-DN150)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Product Dimensions

Elbow is mainly used to connect two equal diameter pipes perpendicular to each other at the right angle bend of the pipe, and the different diameter elbow is connected with two different diameters perpendicular to each other, so that the vertical pipes can be effectively and reasonably linked together.

Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
