Black Iron Pipe Fittings Wholesale Fig. 372

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

JianZhi Group have a great range of malleable iron pipe fittings to meet all your plumbing and pipework requirements.

Meet Quality Standards, such as FM Certificate, UL Certificate.

Order Now! 24 Hours Online Service.

Product Description

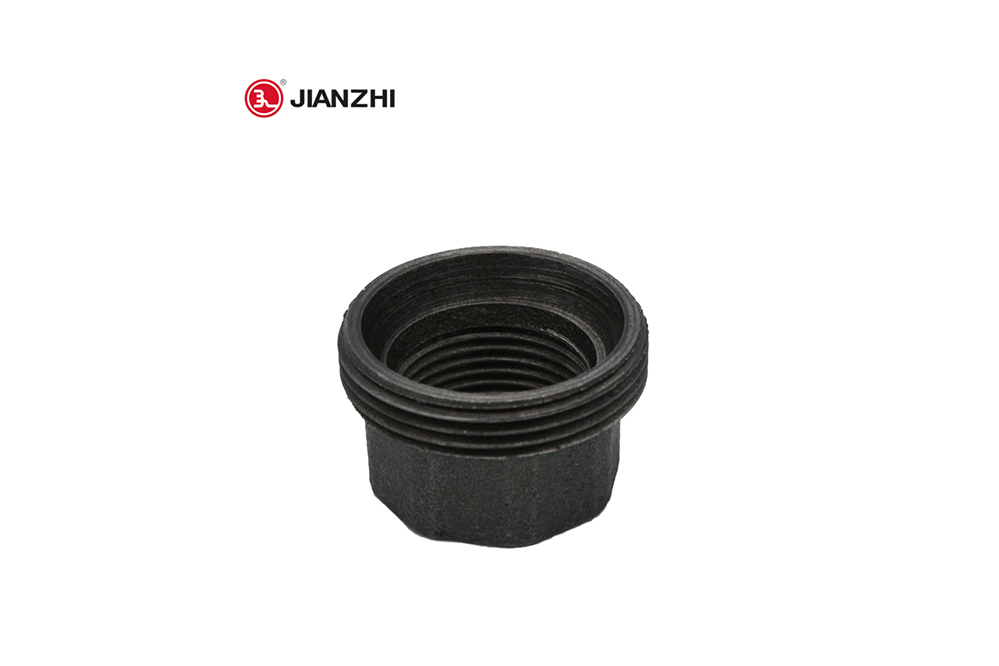

Union tail is part of union, to be used for accessory replacement. Jianzhi union tail has high standard level, it can be used on our Jianzhi pipe unions without any problems.

The best mechanical properties of the material:KTH330-08 malleable cast iron. All standards exceed international regulations

Our pipe fittings ensure high quality from the raw material.

We use electric furnace for melting, and its stability can ensure 100% qualified material.

And the high quality helps our customers win the market.

After casting, the fittings are specially kept at a temperature of 95 ° C, i.e. slow and uniform cooling occurs.

This leads to a decrease in internal stresses and an increase in tensile strength, so pipe fittings are not prone to breakage.

The pipe thus obtains better plasticity and can be used in high pressure and high temperature environments.



Product Parameters

Size: 1/8”-6”(DN6-DN150)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification: UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Product Dimensions

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
