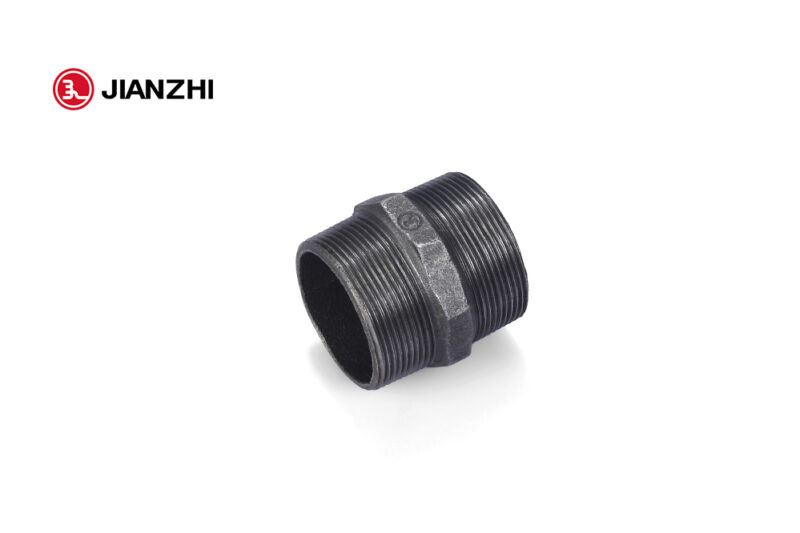

BSP Black Hex Nipple Equal Fig.280

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

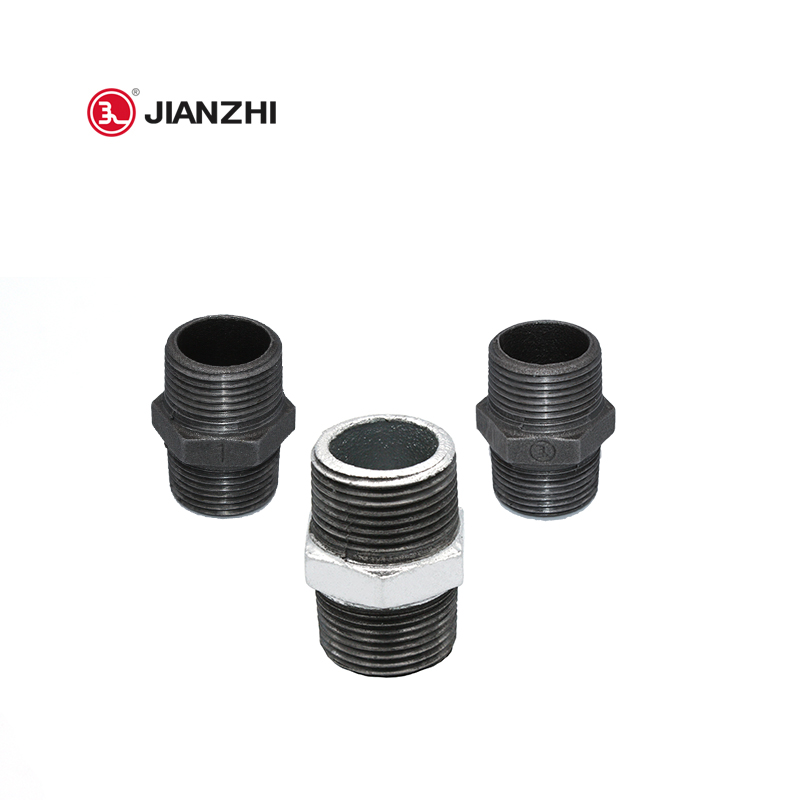

Product Description

Nipples made of commercial galvanized cast iron are used in the installation of steel and cast iron pipelines.The threads can be converted from smaller to larger when connecting cast iron or steel fittings. There is a wide range of applications for these systems, including liquids, heat carriers, steam, gases, and compressed air.
Pipelines of any configuration can be mounted with galvanized cast iron nipples using a threaded connection.

Do you know?
Jianzhi keep a higher standard than most standard requirment. For example, EN 1562 need the Elongation over 6%, Jianzhi fitting over 10%.

Product Parameters

Size: 1/4”-4”(DN8-DN100)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification: UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

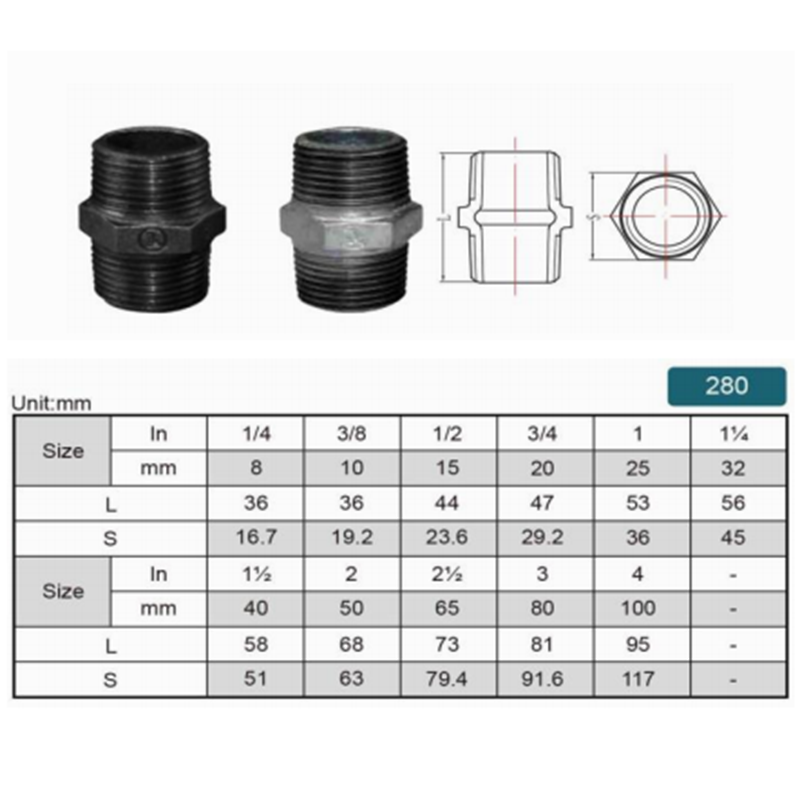

Product Dimensions

Technical Data

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
