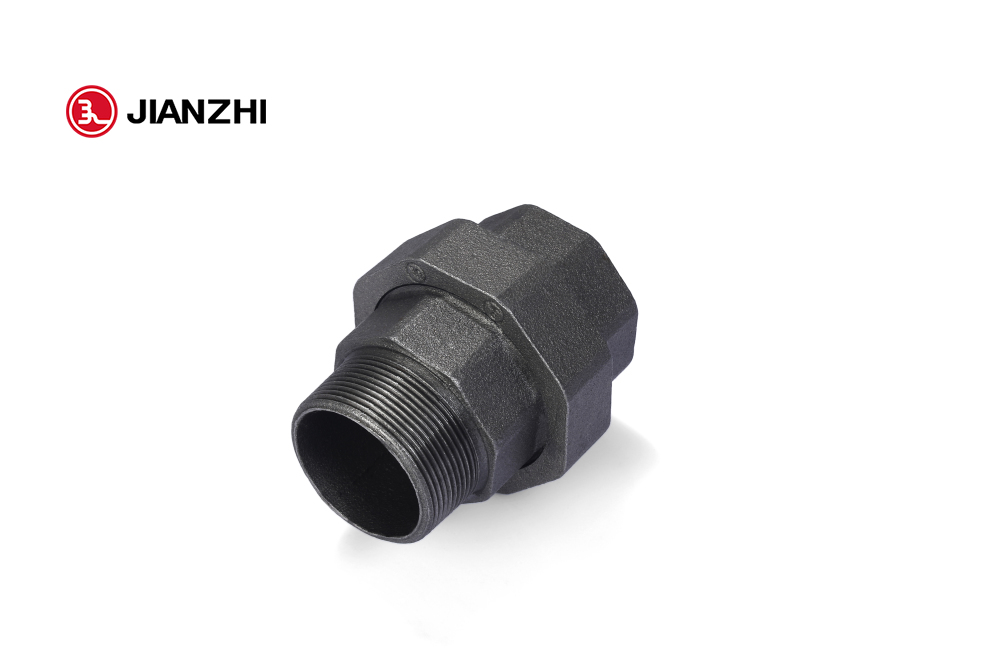

Male Female Pipe Union Fitting Fig.331

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Size: 1/2”-2”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Category: Tag:

Product Description

union fitting for sale

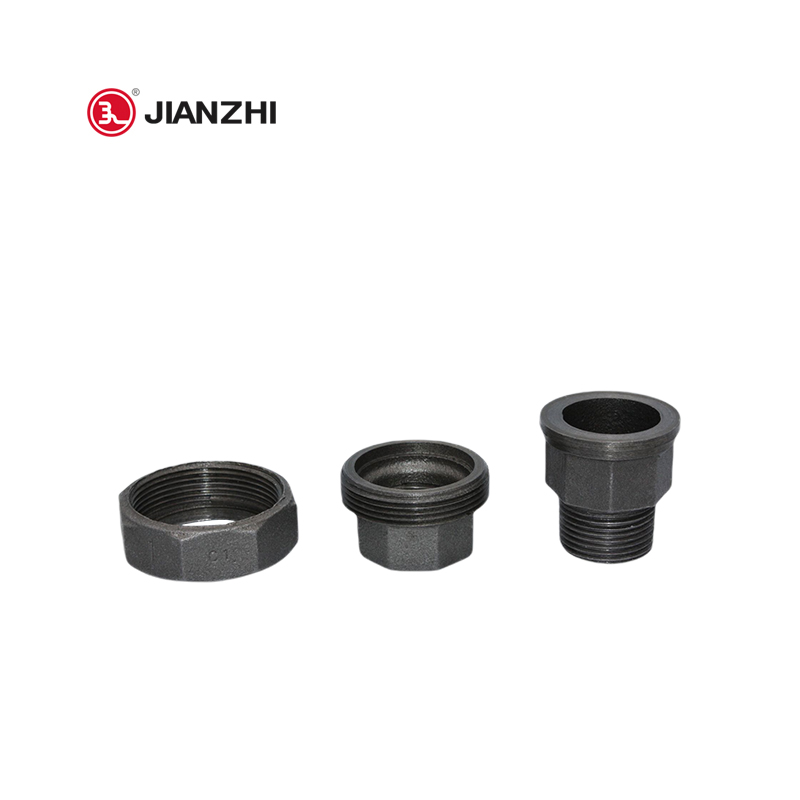

M&F Union is three-piece joints used for connection of piping with the end of external thead pipe and another with the end of internal thread pipe. Thread can be different according customer’s standards.

Various diameters of pipes, water meters, and valves can be connected with the union. It is very convenient to install, use, and maintain the pipe joint because of the socket structure. Additionally, it has a very high leak-proof ability, which provides a great market opportunity.The union has high strength and good ductility. The connection is convenient, fast, and easy to operate. The detection is convenient and intuitive. Construction connection without electricity, no gas, no open fire operation, no oil leakage, no pollution, rain or wind, all-weather construction. It has strong applicability and can be operated flexibly in places with dense reinforcement arrangements in narrow and small sites.

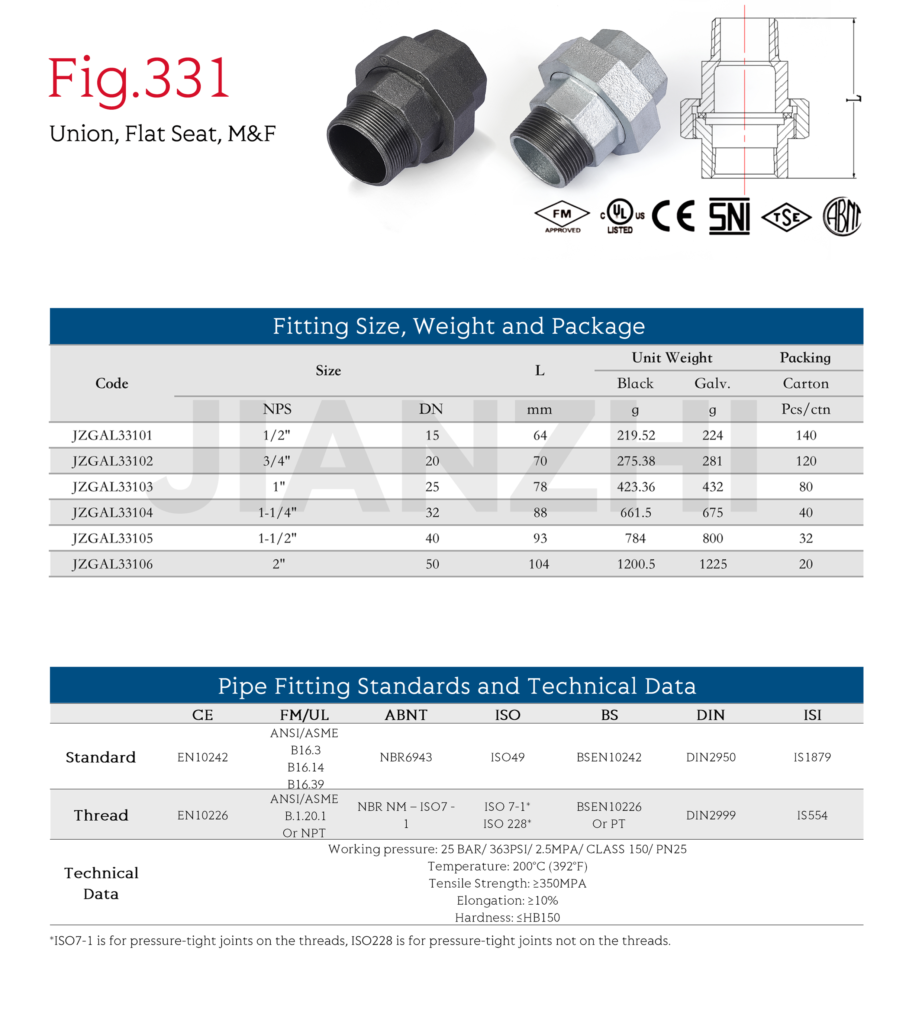

Union-Flat-Seat
