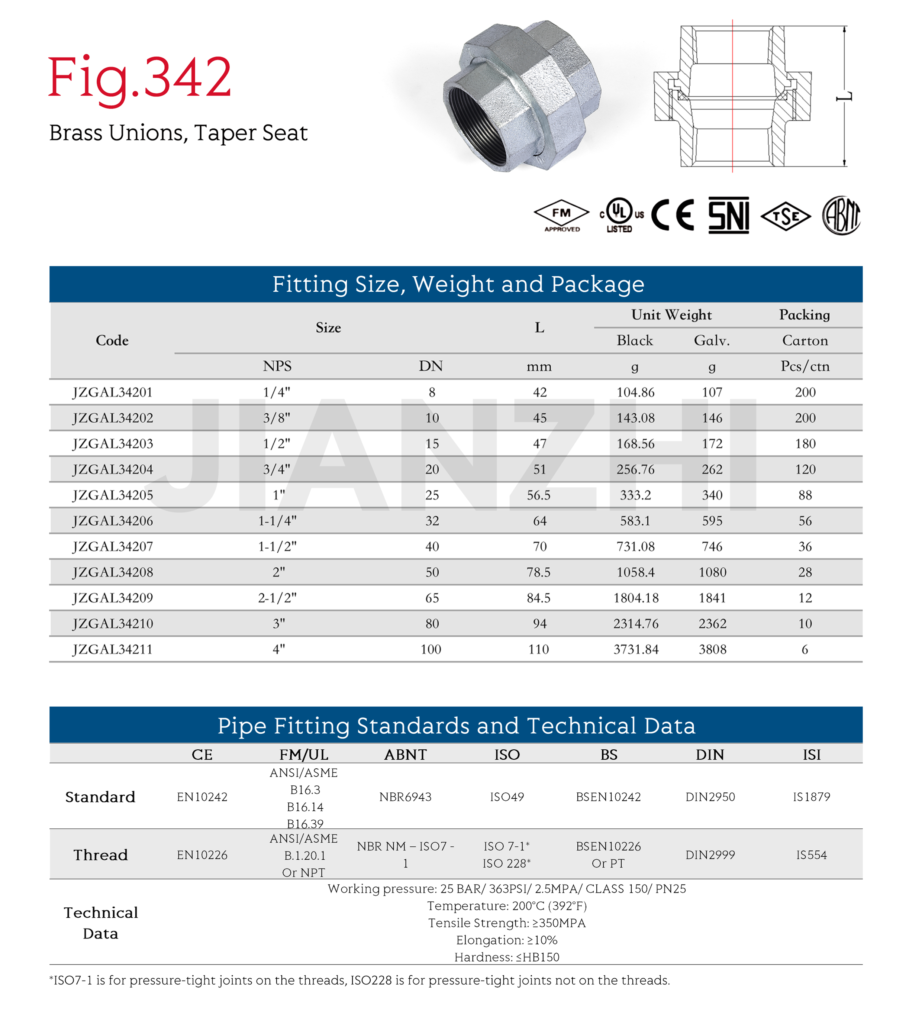

Malleable Iron Fittings Black Union Brass Taper Seat Fig. 342
| Maximum Pressure: | 25 BAR (363PSI) (2.5MPA) CLASS 150 |
|---|---|
| Maximum Temperature: | 200°C (392°F) |
| Tensile Strength: | 350MPA |
| Suitable Applications: | Water, Oil, Gas, Petro-Chemical |
Would like to see how our high accuracy union is made?
You can follow our youtube channel or facebook. You will find the answer.
Product Description
A black taper seat is a type of malleable cast iron fitting used in plumbing, heating, and climatic systems. It’s designed for joining two fixed pipes together where the pipes cannot be turned. The maximum permissible working pressure for this fitting is 25 bars.

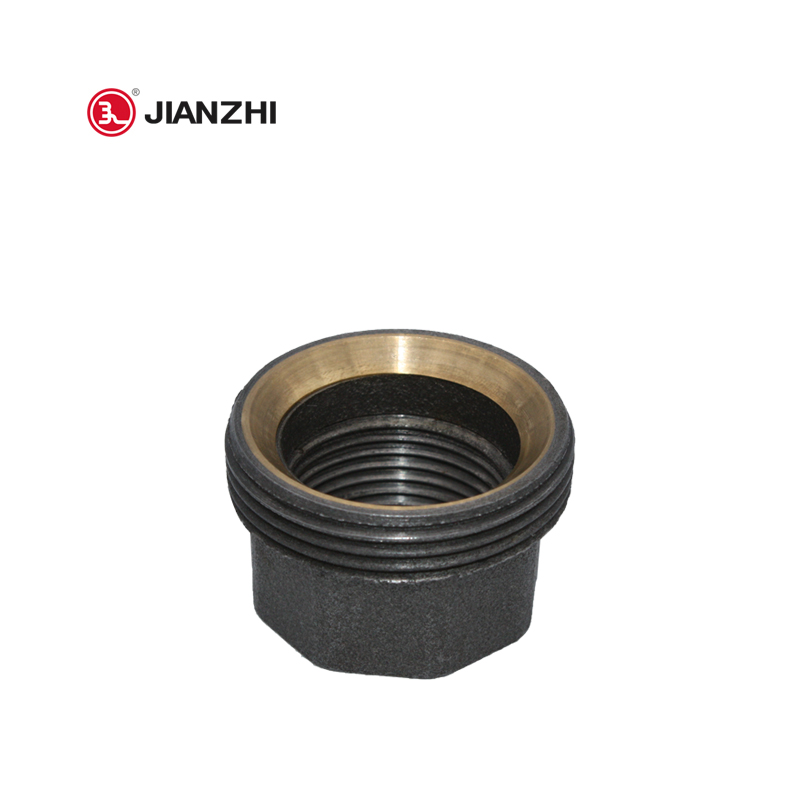

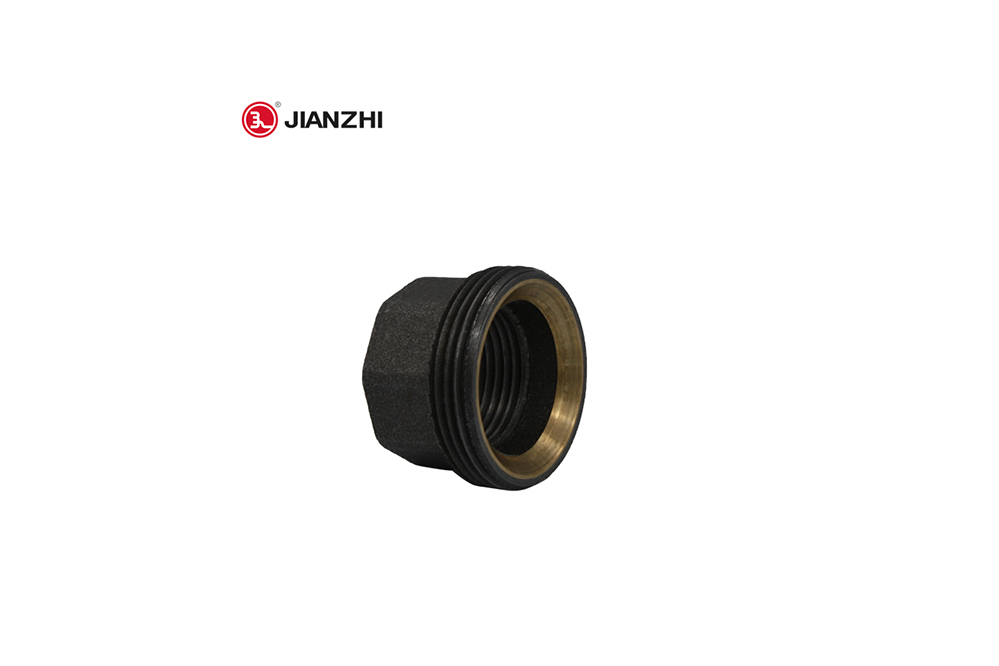

The taper unions extrude each other through the inner and outer conical inclined planes to form a sealing surface. Different from normal taper unions, brass taper unions use brass for sealing surfaces. It has good anti-rust properties.

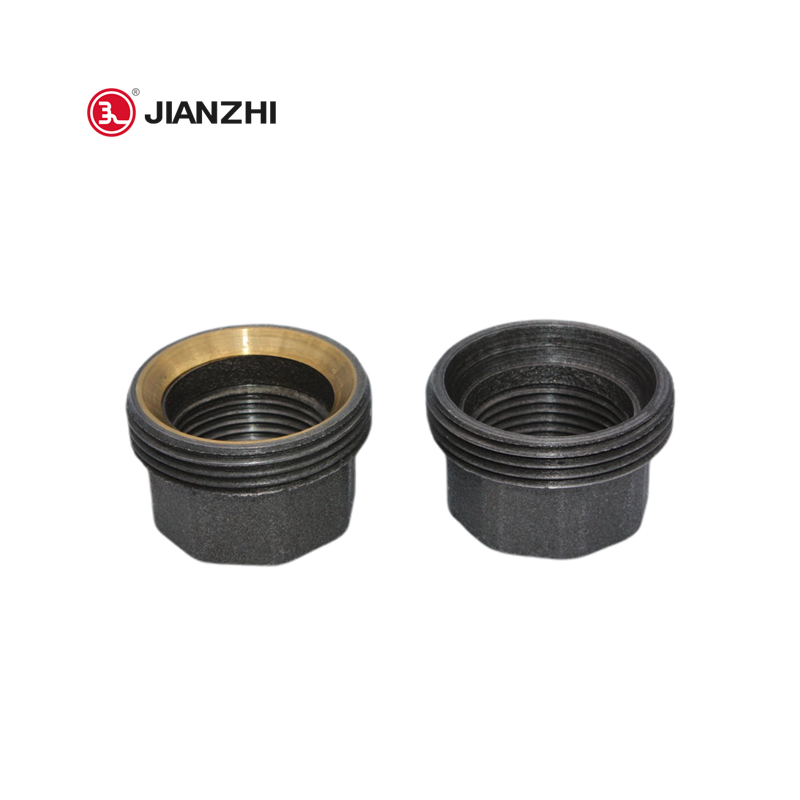

When you buy, please make sure that this key has two male and female interfaces. The union of the cone seat guarantees a better seal and ensures that your piping system does not leak. The cone seat of this union is made of copper, which will further improve the sealing.
JANZHI-Malleable iron pipe fittings
EN10226 /ASMEB1.20.1/IS0228/IS07-1
Protect pipe fittings from injury during connection
disrupting their original performance
please contact our staff
0.6MPa
20%
standard
0.5MPa
±0.3°
40%
standard
+0.5°
363MPa
10%
standard
330MPa
12%
33%
standard
8%
100% individuoltesting ofthe product
