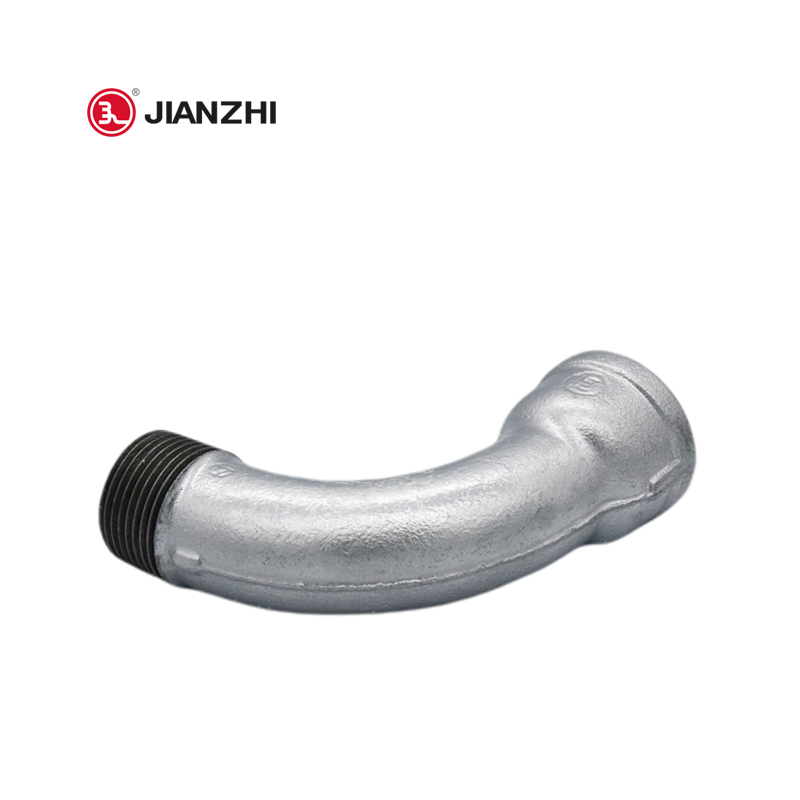

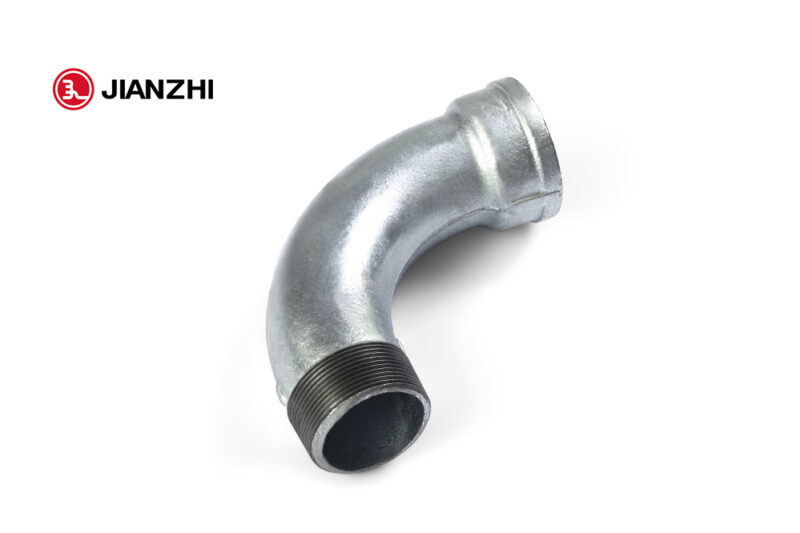

Male and Female Threaded Long Radius Elbow Bend 90 Degree Fig.1

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Size:3/8”-4”
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
Certificate: UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Product Description

JIANZHI Threaded Malleable Cast Iron Fittings are in accordance with the requirements of above Standard,specifically suitable for liquids, air, gas, water, burner gas, hydrocarbons, etc. under pressure and temperature limitsThe Zinc coating is over 500 gr/m2, that means minimalaverage thickness of 70 micron.This thickness of the zinc coating and the good adherence to the base surface assure a perfect and longlasting anti-corrosive protection. And with thefollowing effects:Highest corrosion protection,No need of further conservation with oil,Highest level of hygienic requirementsIn order to guarantee the absence of internal material defects that might cause leak problem, every single piece of JIANZHI Fittings is thightness testedin accordance with requirements of Standard EN10242:1994.

90 Degree Elbow Pipe Fitting

JANZHI-Malleable iron pipe fittings

Thread BSPT and NPT
EN10226 /ASMEB1.20.1/IS0228/IS07-1
International Certification
Extraordinary craftsmanship, perfection, and beauty
Free run-out structure
Protect pipe fittings from injury during connection
Free run-out:
Protect pipelines and fittings
black steel tube fittings
No Free run-out :
May cause damage to pipelines and fittings
disrupting their original performance
black steel tube fittings
*For more product performance testing videos,
please contact our staff
Thread quality higher than nationalstandards
Quick installation
70um Zinc layer thickness
Air pressure
0.6MPa

20%

national
standard
0.5MPa
Shaft Angle
±0.3°

40%

national
standard
+0.5°
Tensile strength
363MPa

10%

national
standard
330MPa
Elongation
12%

33%

national
standard
8%
Execution standards
Material:
EN1562 Or 1S0 5922
Design & Dimensions:
EN10242 0rIS0 49
Thread :
BSPT and NPT
logo

100% individuoltesting ofthe product
