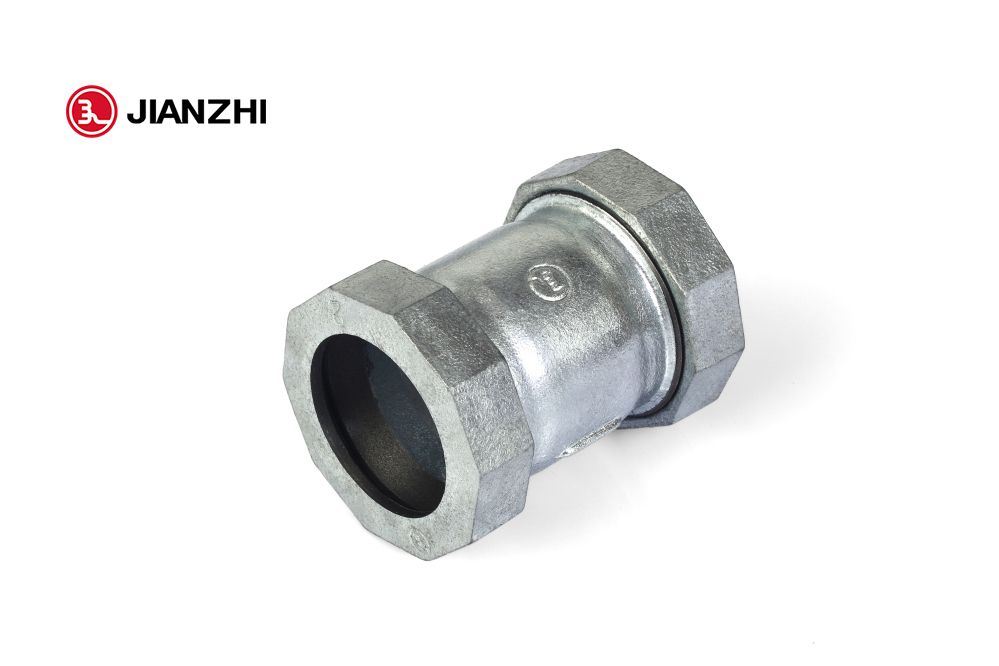

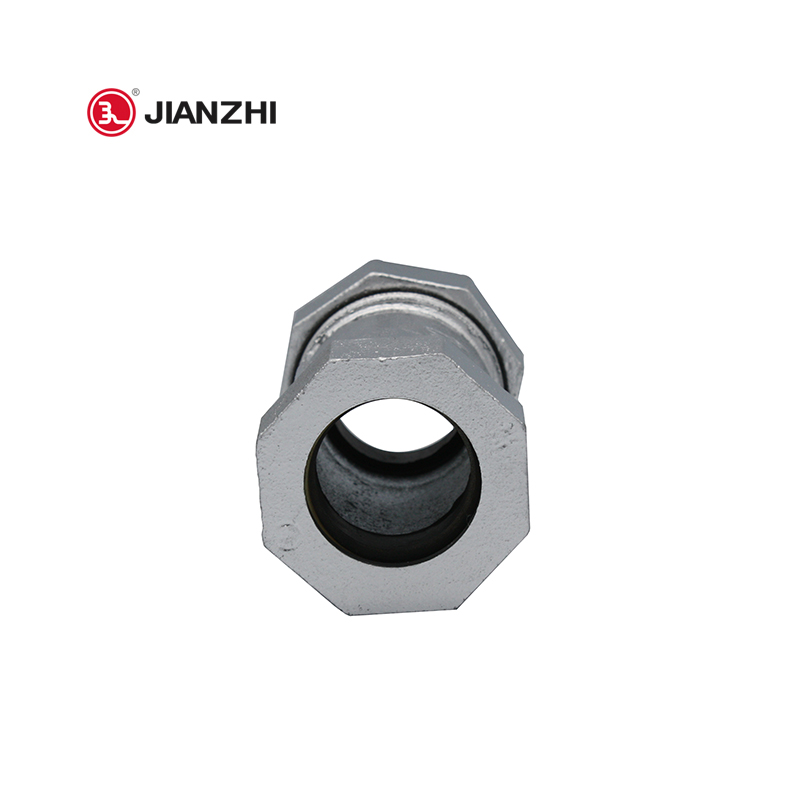

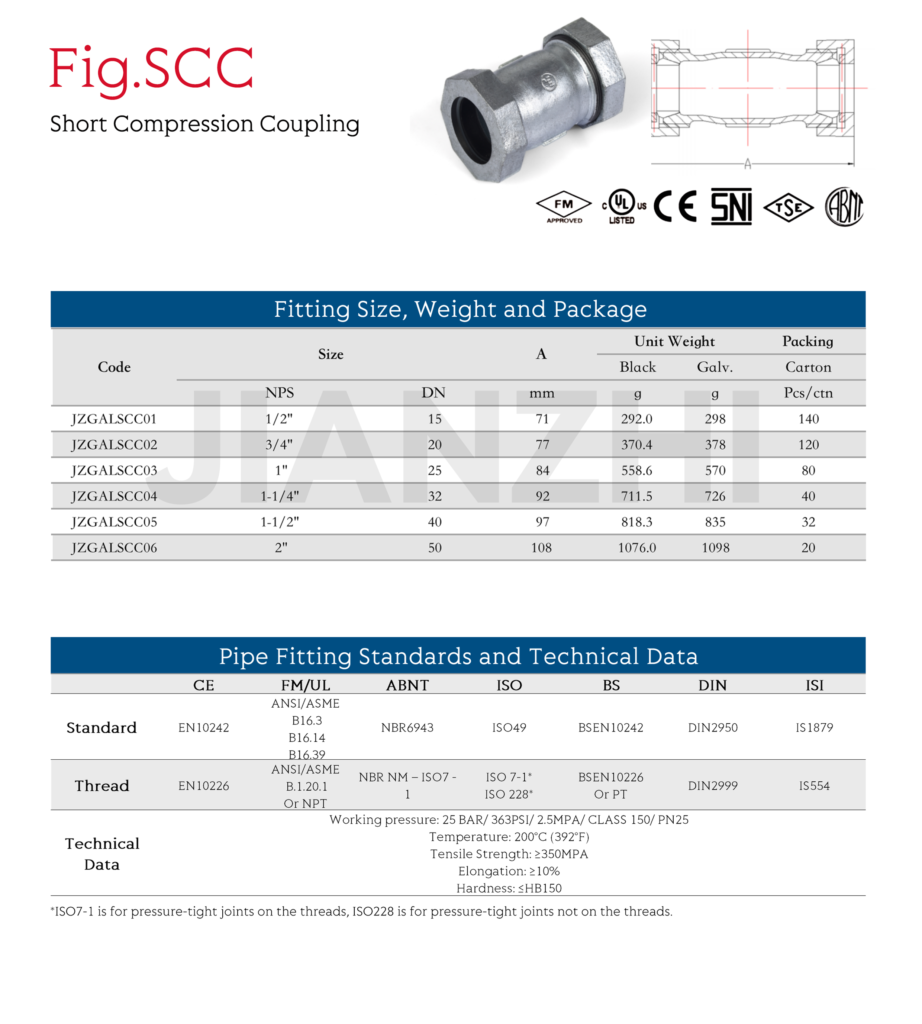

Short Compression Coupling

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Size: 1/2”-2”
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 31Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Product Description

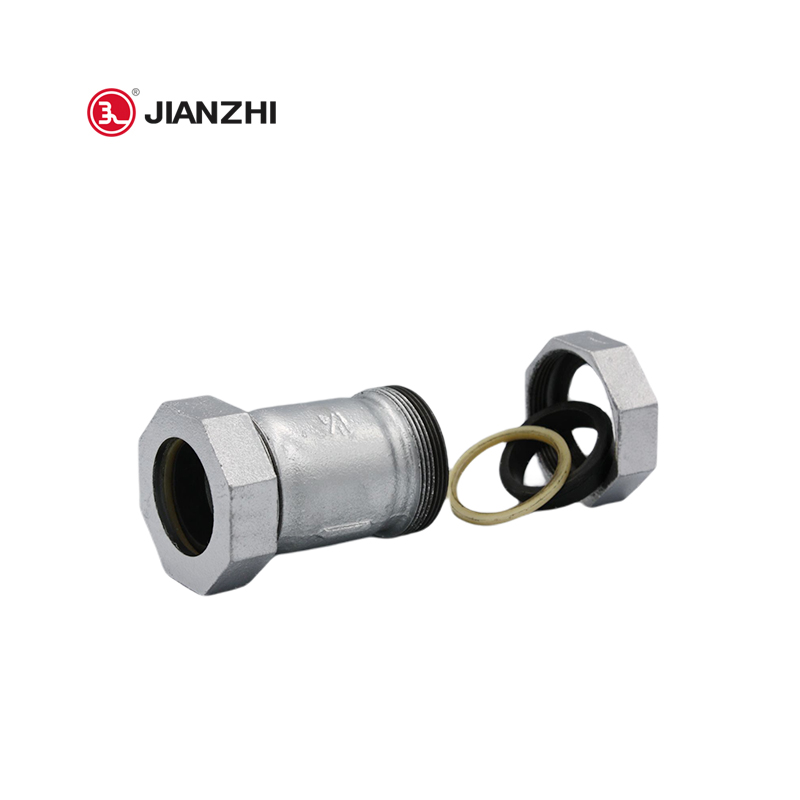

Short compression coupling ,Fast joint fittings for quick connecting of two pipes. malleable cast iron , surface hot dip galvanizing process

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron

For quick connection of two pipes, a short compression coupling is used. The cast iron is malleable and hot dipped galvanized on the surface.
Customers can choose from black or galvanized finishes for JIANZHI pipe fittings. An average medium layer thickness of 70m will be required for 5 pipe fittings coated with zinc. Except for the machined black internal thread, the zinc coating on the internal surface of the fitting is continuous. There are no zinc blisters, zinc burrs, or non-metallic residues on the zinc coating. Polycyclic aromatic hydrocarbons are not present on the surface of the fittings.

Compression-Coupling



JANZHI-Malleable iron pipe fittings

Thread BSPT and NPT
EN10226 /ASMEB1.20.1/IS0228/IS07-1
International Certification
Extraordinary craftsmanship, perfection, and beauty
Free run-out structure
Protect pipe fittings from injury during connection
Free run-out:
Protect pipelines and fittings
black steel tube fittings
No Free run-out :
May cause damage to pipelines and fittings
disrupting their original performance
black steel tube fittings
*For more product performance testing videos,
please contact our staff
Thread quality higher than nationalstandards
Quick installation
70um Zinc layer thickness
Air pressure
0.6MPa

20%

national
standard
0.5MPa
Shaft Angle
±0.3°

40%

national
standard
+0.5°
Tensile strength
363MPa

10%

national
standard
330MPa
Elongation
12%

33%

national
standard
8%
Execution standards
Material:
EN1562 Or 1S0 5922
Design & Dimensions:
EN10242 0rIS0 49
Thread :
BSPT and NPT
logo

100% individuoltesting ofthe product

Thread angle
Shaft angle
Air tightness
Fully automatic detection
Width Detection
Mechanical properties
Device detection
Elongation
Zinc layer thickness
logo

Reduce carbon emissions and
use renewable energy
Focuson sustainable development

Start from 1982

Sam floot space

Tons of production per year

Tons nbentory

Sustainable Development
iso24001
iso9001
iso24001
10 Production process
Profiling – Smelt – Pouring – Anneal – Burnishing – Correct

|

Galvanization – Threading – Detail processing – Grinding

10 Production process
25Days
Designated brand in china
government group
partner
Designated brand in china
government group

Sold to over 30
countries and regions

AMAALA conrad hotel saudi arabia NEOM Security Forces

JANZHI Group holds 13.6% market share
Gas Pipeline System holds 60% market share

Official marketing material support
One to one customized service to meet the
customized needs of different customers
Officialafter-sales service
Professional personnel provide you with
after-sales service and technical support
One stop service to solve your logistics problems
24hours
Customer Service
Tailored project proposal for clients
