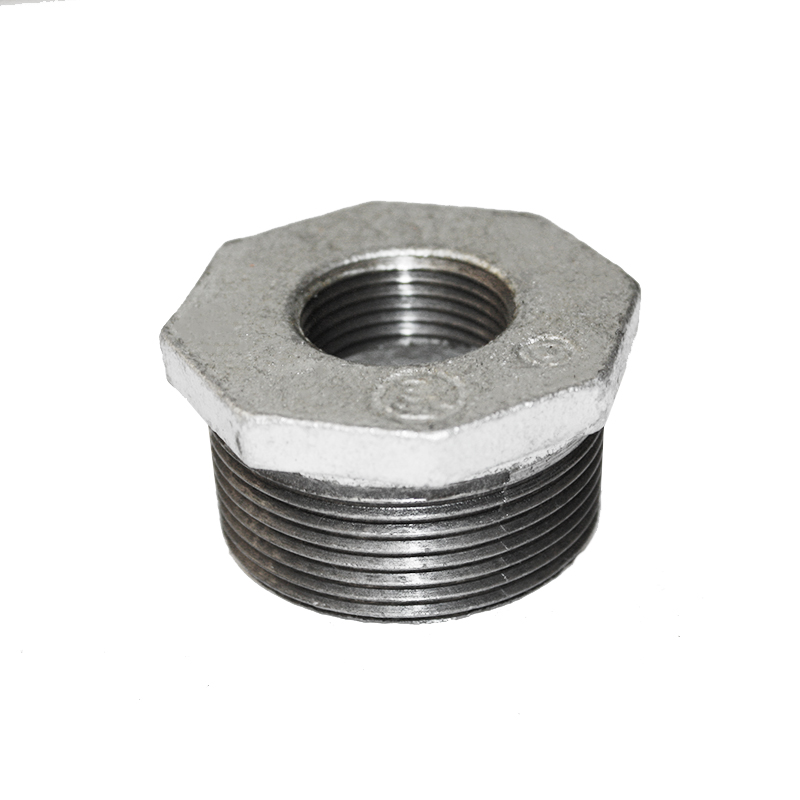

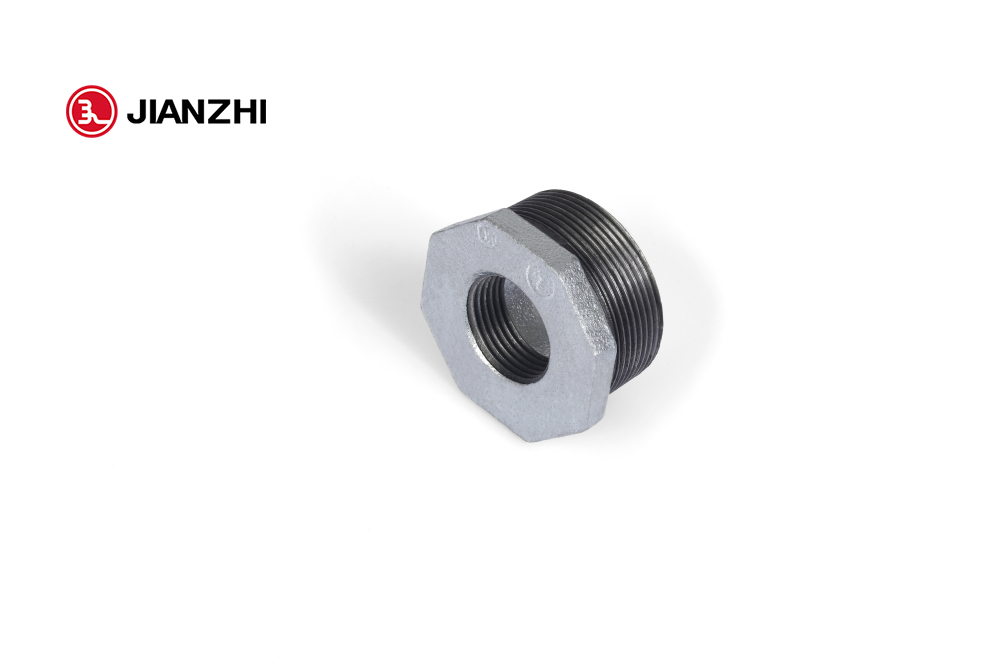

Galvanized Pipe Bushing Fig.241

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

Bushing is used as an adapter. It is needed to connect pipes with different diameters. This is especially important if you urgently need to connect pipes that were purchased by different buyers and in different years. In this case, there are no alternatives to futorka. It is considered an indispensable element, which is why it is so important to get it as soon as possible if you need to create a pipeline in the shortest possible time.

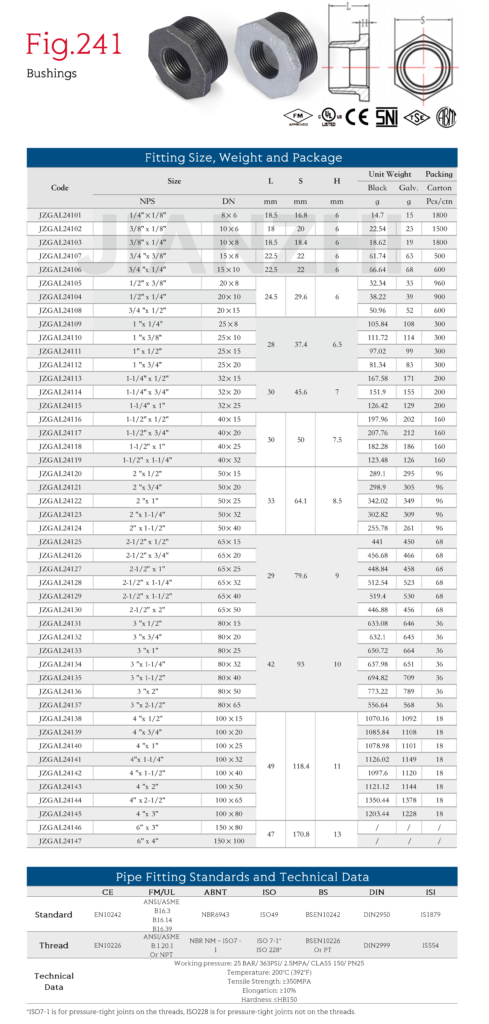

Unit:mm241
SizeIn2*1/22* 1 1/42 1/2*3/42 1/2*1 1/23*1/23*1
mm50*1550*3265*2065*4080*1580*15
L463352395757
L‘33_____
H8.58.5991010
S646479.679.69393

Product Parameters

Size:1/8”-6”(DN6-DN150)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Product Dimensions

Elbow is mainly used to connect two equal diameter pipes perpendicular to each other at the right angle bend of the pipe, and the different diameter elbow is connected with two different diameters perpendicular to each other, so that the vertical pipes can be effectively and reasonably linked together.

Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
