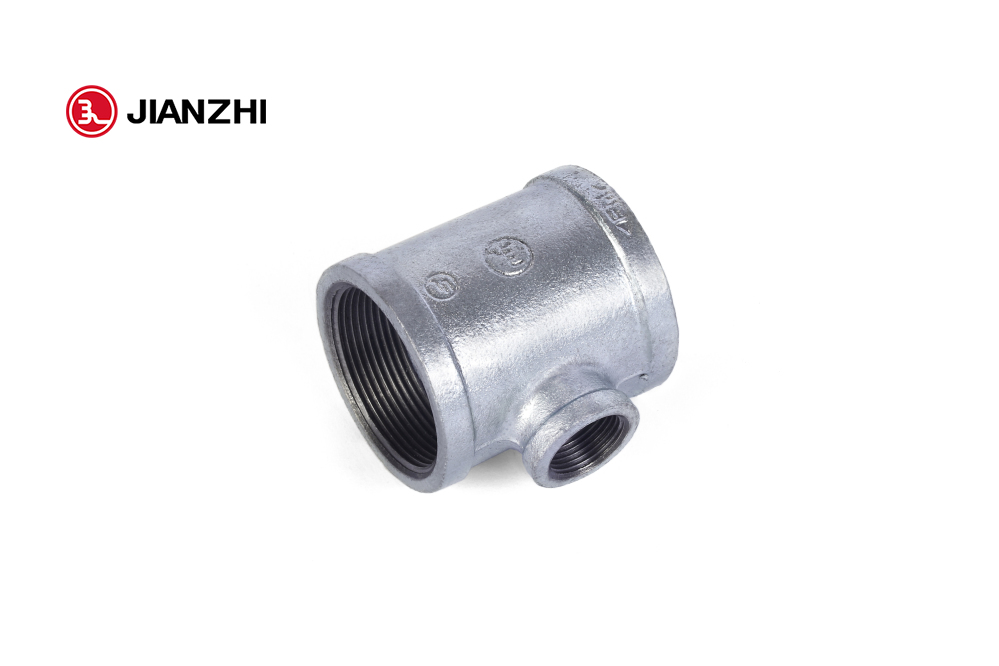

Pipe Fittings Tee Reducer Fig.130R

Maximum Pressure:

25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature:

200°C (392°F)

Tensile Strength:

350MPA

Suitable Applications:

Water, Oil, Gas, Petro-Chemical

Would like to see how our high accuracy union is made?

You can follow our youtube channel or facebook. You will find the answer.

Product Description

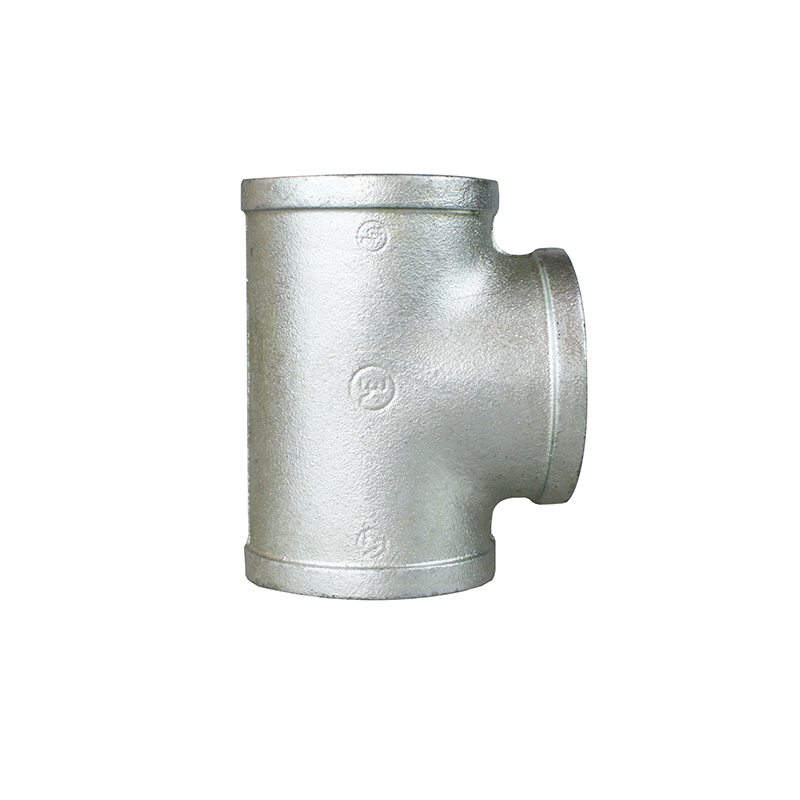

For Tee Reducing, Reducing can change the size of shunt, Malleable iron pipe Fittings Tee Reducing, using malleable cast iron material, main outlet size and branch outlet size is different, hot dip galvanized surface treatment method



Product Parameters

Size:3/4×1/2(DN15x20-DN100x80)
Standard:EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification:UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

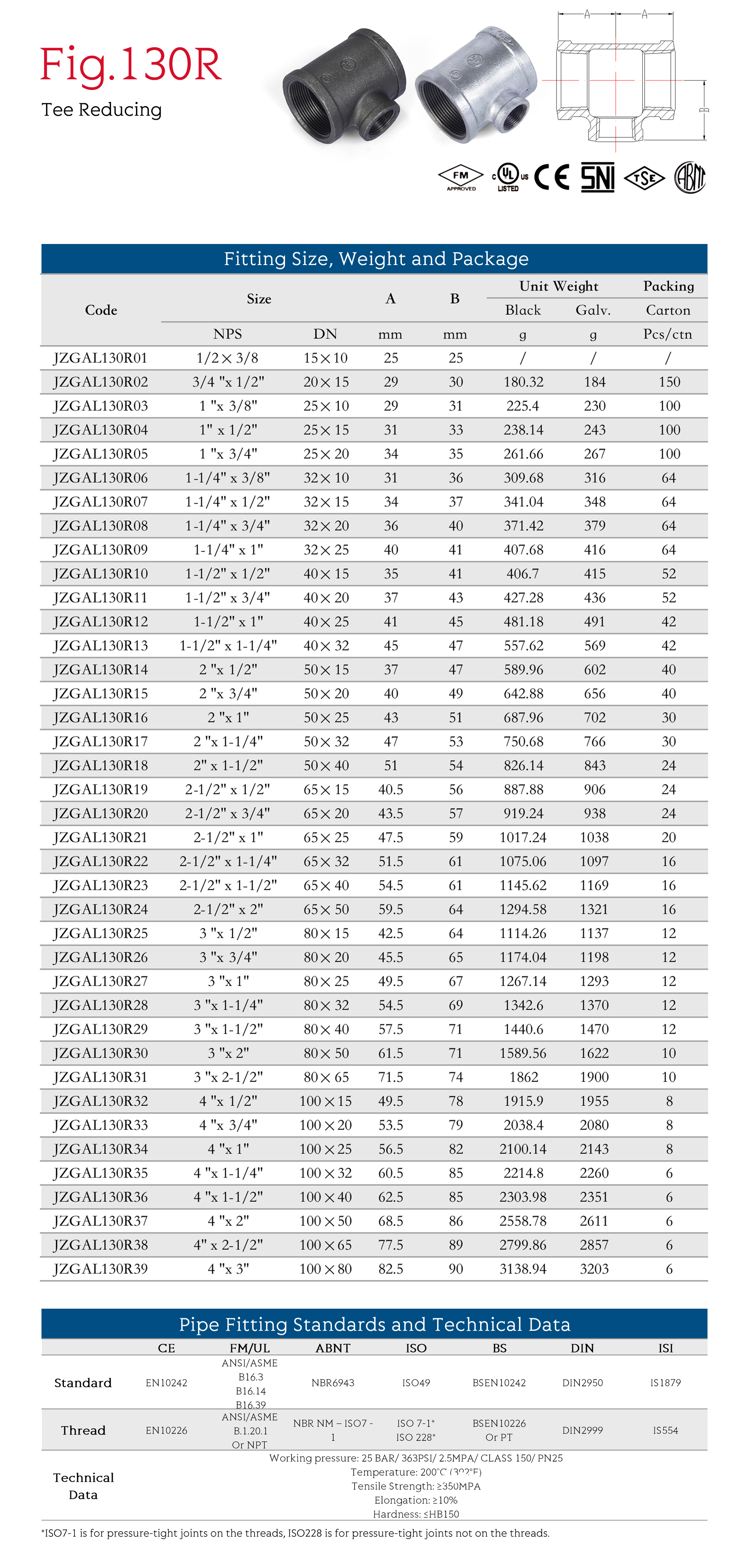

Product Dimensions



Technical Data

Maximum Pressure:25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature:200°C (392°F)
Tensile Strength:350MPA
Hardness:HB150 (Brinell)
Elongation Rate:10%
Suitable Applications:Water, Oil, Gas, Petro-Chemical
Material:Malleable Iron
